MSS SP-88 & ASME B16.10 Industrial Diaphragm Valves FlowBiz Ahmedabad

Welcome to FlowBiz Export Private Limited, a certified manufacturing authority for leak-proof fluid regulation, high-vacuum containment, and severe slurry isolation systems. Operating specialized metallurgical foundries, advanced rubber vulcanization laboratories, and automated pressure compliance testing lines in Ahmedabad, Gujarat, we are India's premier manufacturer, supplier, and global B2B exporter of heavy-duty Industrial Diaphragm Valves.

Our linear-motion containment valves are engineered to separate the valve's working parts from the process fluid completely. This zero-leakage design prevents internal mechanism corrosion and eliminates the risk of fluid contamination. From our manufacturing base in Ahmedabad, we support major processing networks nationwideincluding Rajkot, Vapi, Valsad, Surat, Gandhidham, Kutch, Ankleshwar, Bharuch, Mumbai, Pune, Thane, and Chennaibacked by fast-tracked global maritime logistics for direct project export worldwide.

Technical Specifications & Compliance Parameters

FlowBiz Diaphragm Valves utilize a flexible elastomer diaphragm connected to a compressor mechanism. When the stem is turned, the diaphragm moves to seal against the valve body, providing an absolute, bubble-tight shut-off. Our specialized production lines are designed to meet both traditional dimensional layouts and international conversion requirements.

Core Engineering Features & Design Advantages

1. Dimensional Compatibility via ASME B16.10 Layouts

A common historical challenge for plant engineers has been that standard diaphragm valves follow specialized MSS SP-88 face-to-face dimensions, making it difficult to swap them into pipelines built for standard valves. FlowBiz addresses this constraint by manufacturing custom diaphragm valves engineered to match ANSI/ASME B16.10 dimensions. This design allows for direct, drop-in replacement of solid wedge gates, double-disc gates, resilient wedge valves, short-pattern plugs, or ball valves without the need for expensive pipeline modifications.

2. Cavity-Free, Streamlined Fluid Path

Unlike standard gate or ball valves that feature internal recesses, gaps, and body pockets where solids settle and solidify, our diaphragm valve features a smooth, streamlined internal profile. Because there are no dead spaces where fluid can stagnate, the line sweeps completely clean. This structure minimizes fluid turbulence, reduces inline pressure drop, and prevents abrasive wear when routing slurries, viscous materials, or contaminated water media.

3. Absolute Stem and Mechanism Isolation

The flexible rubber diaphragm acts as a continuous dynamic seal that completely isolates the valve bonnet assembly, stem threads, and compressor from the fluid path. This design ensures that aggressive process liquids, gases, or chemicals never touch the mechanical components, preventing stem corrosion and thread binding. It also keeps lubricants from seeping into the pipeline, making it an excellent choice for ultra-pure water systems and sensitive fluid networks.

4. Specialized Rubber and Polymer Volumetric Seals

FlowBiz formulates high-grade natural and synthetic rubber diaphragms in our own vulcanization labs to meet specific cross-industry chemical demands. Each material is selected to match distinct line variables:

• Natural Rubber & Neoprene: Highly resilient options for handling abrasive sediments, slurries, and general industrial water.

• EPDM & Viton: Engineered for high thermal stability and resistance to aggressive chemical washdowns or oxidation.

• PTFE-Backed Diaphragms: Provides exceptional chemical inertness against concentrated acids and volatile organic solvents.

Strategic Cross-Industry Applications

FlowBiz high-efficiency diaphragm valves are specified across primary industrial fluid networks:

• Industrial Water Treatment Systems: Regulating raw water intake, reverse osmosis filtration banks, resin backwash loops, and demineralized water pipelines.

• Chemical Processing Facilities: Safe routing, throttling, and absolute isolation of volatile chemical reagents, acidic process lines, and caustic neutralization systems.

• Mining & Minerals Tailings: Directing abrasive ore slimes, mining wastewater, thick grit slurries, and lime dosing circuits.

• Pulp & Paper Manufacturing: Handling fine wood fiber stocks, chemical bleaching lines, wastewater effluents, and process clay slurries.

Frequently Asked Questions (FAQ)

Q: Why is a diaphragm valve preferred over a ball valve for abrasive slurry or water treatment sludge?

A: A ball valve features a spherical ball core that rotates against smooth polymer seats. When handling abrasive slurries or thick sludge, solid particulates get trapped between the ball and the seat ring, scoring the surfaces and causing rapid internal leakage. A Diaphragm Valve uses a thick, flexible rubber membrane that presses down onto the fluid path. This flexible membrane easily seals right over suspended solids or trapped grit without sustaining damage, ensuring a reliable, long-term seal in abrasive lines.

Q: What is the primary difference between a weir-type and a straight-through diaphragm valve?

A: Selection depends on your line velocity, fluid thickness, and target pressure drop:

• Weir-Type Diaphragm Valves: Feature a raised internal wall or "weir" inside the center of the body. This requires a shorter stroke to achieve a complete seal, extending diaphragm service life. This design is highly effective for precise throttling and general chemical lines.

• Straight-Through Diaphragm Valves: The internal bore runs completely flat without an internal weir wall. The flexible diaphragm retracts fully out of the flow path, allowing thick mining slurries, paper pulp stocks, and viscous fluids to pass cleanly without restriction or pressure drop.

Q: How does specifying an ASME B16.10 face-to-face dimension simplify plant retrofits?

A: Most standard industrial valves (such as gate, plug, and ball valves) conform to the ASME B16.10 face-to-face standard, whereas classic diaphragm valves follow the narrower MSS SP-88 standard. If a plant manager wants to replace a problematic gate valve with a diaphragm valve, they would normally have to cut and re-weld the main pipeline. By engineering our diaphragm valves to match ASME B16.10 lengths, FlowBiz enables a direct, bolt-in replacement that eliminates piping modifications and minimizes installation downtime.

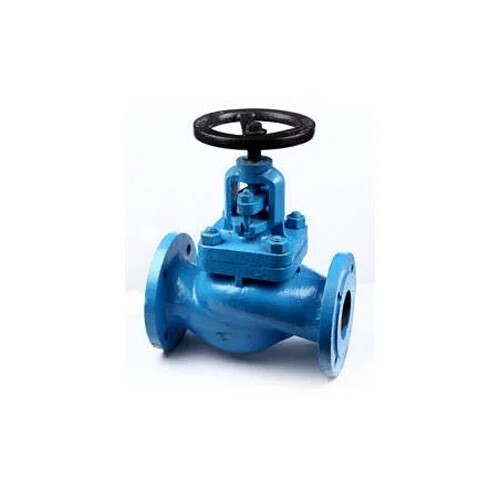

Q: Why is the outer casing finished in a distinct blue color coating?

A: Within major processing complexes, refineries, and infrastructure networks, field operators rely on visual coding to safely identify separate utility lines. A High-Build Industrial Blue Finish is the global industry standard used to indicate that the asset is designated for water utility treatment, filtration, or distribution lines. This clear visual classification helps prevent maintenance errors, simplifies field audits, and improves overall facility safety.

Q: How can project procurement managers and engineers coordinate a direct factory quote?

A: Sourcing can be initiated by contacting our corporate sales division in Ahmedabad, Gujarat. Our application engineering division will guide you through a comprehensive technical consultationassessing your precise nominal pipeline diameters (15 mm to 350 mm), preferred body metallurgy (Stainless Steel vs. Cast Iron), explicit fluid media properties and particulate concentrations, and required diaphragm compoundsto deliver a certified product submittal data sheet and an itemized commercial proposal with factory-direct B2B pricing.

Are you optimizing an abrasive mineral tailings manifold or upgrading an industrial water treatment filtration loop? Contact our Ahmedabad sales and engineering office today to receive complete technical data sheets, certified dimensional blueprints, and an itemized commercial proposal.
