High-Integrity Cast Iron & Stainless Steel Diaphragm Valves FlowBiz Navsari

Welcome to FlowBiz Export Private Limited, a certified manufacturing authority for hermetic fluid isolation, high-purity utility management, and abrasive slurry containment. Operating advanced metallurgical casting cells and high-pressure compliance laboratories in Navsari, Gujarat, we are an eminent manufacturer, supplier, and global exporter of industrial Weir-Type Diaphragm Valves.

Our specialized fluid control systems are engineered to withstand severe hydraulic, mechanical, and chemical stresses. We seamlessly serve critical processing zones across Indiaincluding Navsari, Rajkot, Ahmedabad, Vapi, Valsad, Surat, Gandhidham, Kutch, Ankleshwar, Bharuch, Mumbai, Nashik, Pune, Thane, and Chennaialongside fast-tracked maritime freight networks for rapid global export.

Technical Specifications & Pipeline Parameters

FlowBiz Diaphragm Valves utilize a flexible elastomeric diaphragm to seal against an internal weir body. This specialized construction separates the process fluid entirely from the working mechanisms of the bonnet assembly and stem, creating a cavity-free environment that prevents fluid contamination and mechanical jamming.

Core Engineering Features & Design Advantages

1. Robust Cast Iron Body with Stainless Steel Trim

By pairing a heavy-walled ASTM A126 Class B cast iron housing with high-grade Stainless Steel structural components, our valves achieve excellent price-to-performance metrics. The cast iron shell provides superior structural strength and pressure containment, while the stainless steel stem and bonnet internals eliminate internal rust risk and resist chemical degradation in harsh plant conditions.

2. Cavity-Free Weir-Type Geometry

Standard gate or ball valves incorporate internal pockets and body recesses where debris, suspended minerals, or pipe scale can collect, solidify, and jam the valve mechanism. FlowBiz weir-type diaphragm valves feature a smooth, cavity-free internal path. The absence of internal dead spaces prevents particulate accumulation and makes it an excellent match for raw water, wastewater, and thick fluid applications.

3. Absolute Hermetic Leak-Proof Isolation

The flexible elastomeric diaphragm acts as a durable dynamic barrier. It fully encapsulates the process fluid within the valve body channel, shielding the metallic stem threads and bonnet components from fluid erosion. Simultaneously, this configuration prevents atmospheric air or external grease from entering the pipeline, maintaining the system's absolute operational purity.

4. Fine Linear Modulation & Throttling

Unlike quarter-turn ball or butterfly valves which experience severe seat erosion when left partially open, FlowBiz diaphragm valves are built natively for flow regulation and fluid modulation. The fine mechanical resolution of the rising stem allows plant operators to adjust line velocities incrementally, optimizing system performance and energy efficiency.

Strategic Cross-Industry Applications

FlowBiz high-integrity diaphragm valves are specified across sensitive and aggressive processing grids:

• Water Treatment & Sewage Pipelines: Managing aggressive chemical backwash lines, demineralized water loops, raw sewage headers, and municipal filtration skids.

• Electronics & Pulp Manufacturing: Reliable transport of micro-abrasive fiber slurries, chemical pulps, and high-purity deionized water.

• Sanitation & Hygiene Operations: Versatile control lines for processing environments with strict cleaning requirements, preventing contamination traps.

• Chemical Processing Plants: Handling corrosive chemical reagents, volatile acids, viscous media, and aggressive manufacturing effluents.

Frequently Asked Questions (FAQ)

Q: Why are diaphragm valves uniquely suited for handling fluid lines with high particulate content?

A: Unlike ball or gate valves that rely on precise metal-to-metal or metal-to-plastic sliding seals that get scored and destroyed by solid particulates, a Diaphragm Valve utilizes a thick, resilient elastomer sheet. When the valve closes, the flexible rubber diaphragm compresses gently and tightly over any trapped solid particles, sealing completely around them without damaging the valve structure. This makes it ideal for raw river water, scale-heavy fluids, and mild slurries.

Q: Can a cast iron diaphragm valve be utilized for high-pressure, high-temperature steam systems?

A: No. Diaphragm valves are engineered for low-to-medium pressure applications (typically up to Class 150# parameters). Because the internal sealing mechanism relies on a flexible elastomer diaphragm (such as PTFE or EPDM), exposing the valve to superheated steam or extreme temperatures above 150C to 180C will degrade or rupture the polymer. For severe high-temperature steam lines, FlowBiz Cast Carbon Steel Globe Valves must be selected.

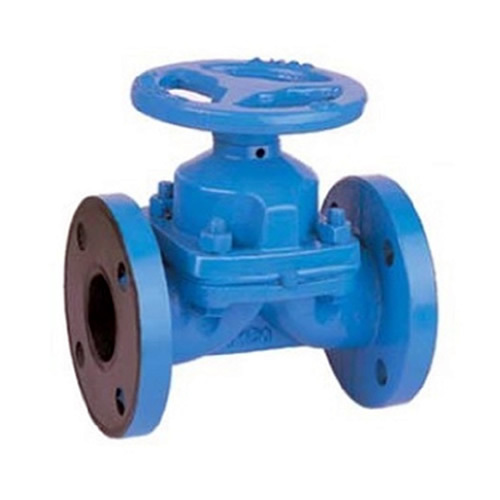

Q: What is the benefit of the industrial blue epoxy surface treatment on these valves?

A: Industrial processing floors and municipal water treatment plants are highly humid, chemical-heavy environments. Unprotected cast iron oxidizes rapidly under these conditions, causing deep structural rust and scaling. Instead of temporary cosmetic paints, FlowBiz applies a high-build industrial epoxy coating. This thick protective barrier isolates the cast iron shell from atmospheric moisture and aggressive media, preventing rust formation and reducing maintenance.

Q: How do maintenance teams replace a worn diaphragm without unbolting the valve from the pipeline?

A: FlowBiz valves feature a practical top-entry design. When the internal rubber diaphragm eventually wears down after thousands of operational cycles, field technicians do not need to remove the entire valve from the line. Instead, simply isolate the pipeline pressure, unbolt the upper bonnet nuts, and lift the bonnet assembly away. The old diaphragm can be unhooked and replaced with a fresh component inline, minimizing facility downtime.

Q: How can project engineering and procurement teams in Navsari arrange a bulk purchase?

A: Sourcing can be initiated by contacting our dedicated corporate sales division in Navsari, India. Our application engineering division will guide you through a comprehensive technical consultationassessing your pipeline nominal sizing ( to 12), pressure class parameters, and chemical trait matchingto deliver a certified technical submittal package and an itemized commercial proposal with factory-direct B2B pricing.

Are you optimizing an industrial water purification system or upgrading an abrasive slurry pipeline? Contact our Navsari sales and engineering office today to receive complete technical data sheets, certified structural layouts, and an itemized commercial proposal.
