Industrial Wafer Check Valves: Compact Backflow Prevention and Design Standards

In large-scale pipeline engineering, managing fluid backflow is critical for maintaining system safety, preventing cross-contamination, and protecting high-value equipment. When a pumping system unexpectedly shuts down, the fluid column can rapidly reverse direction. This reflux can drain essential process lines, cause severe water hammer, and force centrifugal pumps to spin backward, risking catastrophic motor failure.

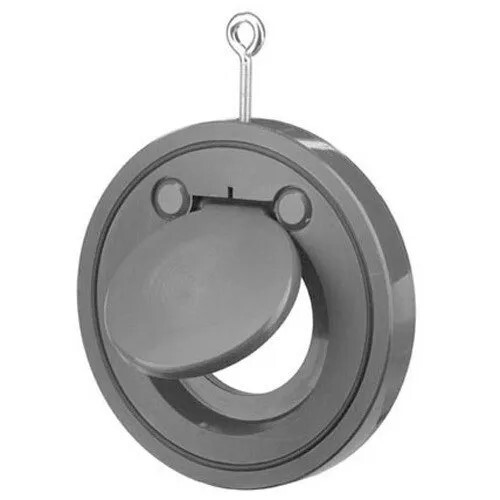

A Wafer Check Valve (also known as a clack, reflux, non-return, or one-way valve) offers an ultra-compact, self-acting solution. It features a slim, space-saving design that clamps directly between two pipeline flanges. The valve operates automatically using a hinged, flap-like disc that swings open when forward fluid pressure exceeds the system's minimal cracking threshold. The moment downstream pressure exceeds upstream pressure, the backpressure forces the disc tightly onto its seat, sealing the line against reverse flow.

FlowBiz Exports is a leading global fluid-handling brand and a trusted Check Valve Wafer Type Manufacturer in India. We precision-engineer high-performance, lightweight non-return valves designed to deliver reliable sealing and automatic reflux elimination across global industrial networks.

Technical Specifications & Operating Thresholds

FlowBiz wafer check valves are engineered to strict international dimensional and pressure-containment standards, providing a low-profile alternative to bulky swing check valves.

Core Engineering Matrix

Critical Material Application Safeguard

Thermoplastic or soft-seated wafer check valves are engineered exclusively for non-compressible liquid applications. They must never be utilized in pneumatic, gas, or compressible liquid scenario paths, where rapid gas expansion can cause internal structural damage or vacuum collapse.

Critical Engineering Features & Operational Benefits

1. Ultra-Lightweight and Space-Saving Geometry

The primary advantage of a wafer check valve is its slim, flangeless design. Because its face-to-face dimension is a fraction of a conventional flanged swing check valve, it fits easily into tight piping layouts and manifold skids. This compact design significantly reduces the overall weight of the pipeline segment, eliminating the need for expensive structural pipe supports and hangers.

2. High Corrosion Resistance & Thermal Durability

The internal closure flap is manufactured from premium SS 304 stainless steel, providing excellent resistance to surface pitting, erosion, and chemical degradation. This robust construction allows the valve to handle aggressive media and maintain reliable sealing at continuous processing temperatures up to 200C, lowering long-term operational costs for plant operators.

3. Precision Customization & Easy Fitment

To prevent fluid turbulence and high pressure drops (P) caused by mismatched line sizes, FlowBiz customizes port sizes to match unique piping dimensions. These valves sit perfectly inside the bolt circle of standard pipe flanges, ensuring a quick installation and straightforward maintenance routine.

Strategic System & Industrial Applications

Our high-temperature wafer check valves are installed across demanding process environments worldwide to ensure uninterrupted, unidirectional media flow:

• Chemical Processing Plants: Safely preventing backflow in pipelines carrying aggressive reagents, process water, and corrosive mixtures.

• Power Generation & Power Stations: Managing boiler feed lines, cooling water circuits, and auxiliary condensate recovery loops up to 200C.

• Petroleum Refineries & Petrochemical Units: Controlling utility lines, sour water networks, and non-compressible hydrocarbon loops.

• Nuclear Facilities & Water Treatment Infrastructure: Providing robust, automated backflow isolation in high-security water treatment loops and desalination networks.

Frequently Asked Questions (FAQ)

Q: How exactly does a wafer check valve minimize the effects of pipeline water hammer?

A: Conventional swing check valves feature large chambers and heavy discs that travel across a wide 90-degree arc. When a pump stops, this long travel path creates a brief delay, allowing the reverse fluid column to accelerate before slamming the disc shut, which generates a jarring shockwave (water hammer). Because a Wafer Check Valve utilizes a short-stroke disc, it reacts almost instantly. The disc closes the exact millisecond forward velocity drops to zero, cutting off reverse acceleration and safely mitigating water hammer.

Q: What are the installation orientation requirements for a wafer check valve?

A: Wafer check valves are highly adaptable but must be aligned with the flow direction arrow cast onto the outer body. They can be safely installed in horizontal pipelines or in vertical pipelines with an upward flow path. When mounting horizontally, it is crucial to position the internal hinge pin vertically. This configuration ensures that the disc swings evenly along its horizontal axis, preventing localized seat wear and ensuring a uniform, leak-tight seal.

Q: What is the technical manufacturing and customization process at your Indian facilities?

A: Our precision manufacturing workflow is tailored to meet specific industrial requirements:

1. Application Analysis: Engineering teams evaluate your process specifications, including pipeline dimensions, fluid chemistry, flow velocity, and maximum thermal parameters.

2. Precision Fabrication: The valve body is machined and paired with a high-strength SS 304 disc to ensure long-term durability.

3. Rigorous Quality Testing: Every finished valve batch undergoes strict hydrostatic shell tests and pneumatic seat containment checks to verify industry compliance before dispatch.

Q: What routine inspection steps are recommended for manual maintenance teams?

A: Because wafer check valves have a simple internal structure with minimal moving parts, they are virtually maintenance-free. During routine plant turnarounds or preventive maintenance checks, technicians can loosen the flange bolts, slide the valve out of the line, and inspect the polished seating faces of the SS 304 disc for debris accumulation or scoring. Cleaning out any trapped solids ensures the valve continues to operate with minimal cracking pressure and maximum sealing efficiency.
