API 6D Industrial High-Pressure Gate Valves FlowBiz Pune

Welcome to FlowBiz Export Private Limited, a certified manufacturing authority for high-integrity pipeline containment, hydrocarbon transportation grids, and full-bore isolation infrastructure. Operating heavy metallurgical foundries, automated precision forging complexes, and certified high-pressure hydrostatic testing cells in Pune and Ahmedabad, we stand as India's premier manufacturer, supplier, and global B2B exporter of industrial API 6D Gate Valves.

Our linear-motion gate valves are specifically engineered for full-port, low-friction fluid isolation in oil and gas transmission lines, refinery headers, and heavy industrial utility circuits. From our primary logistics footprint and technical sales hub in Maharashtra, we seamlessly support critical processing networks across India's key industrial corridorsincluding Pune, Ahmedabad, Vapi, Valsad, Surat, Gandhidham, Kutch, Ankleshwar, Bharuch, Mumbai, Nashik, Thane, Aurangabad, Satara, Sangli, Nagpur, Kolhapur, Indore, Dewas, Bhopal, Chennai, Coimbatore, and Salembacked by fast-tracked global logistics for direct project export worldwide.

Technical Specifications & Compliance Parameters

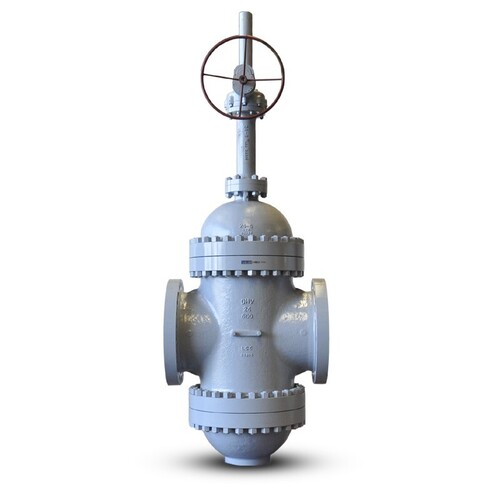

FlowBiz API 6D Gate Valves utilize a robust full-bore architecture where a wedge-shaped gate disc moves perpendicular to the pipeline flow path. When fully raised, the gate lifts completely out of the fluid channel, leaving the port perfectly clear to provide unrestricted bidirectional flow with zero turbulence and a near-zero pressure drop.

Core Engineering Features & Design Advantages

1. Robust Metallurgy and Fine Craftsmanship

To safely contain high-pressure surges, physical pipe-hanging loads, and thermal expansion stresses, our valve pressure boundaries are cast from robust carbon steel, stainless steel, or high-tensile ductile iron. This advanced material selection provides exceptional yield strength, structural elasticity, and impact resistance. The exterior features a polished white finish that provides excellent surface protection and ensures clear asset identification within complex industrial facilities.

2. Full-Bore Geometry with Unrestricted Bidirectional Flow

Standard utility valves often introduce internal turbulence and significant pressure drops due to restricted internal paths. FlowBiz gate valves feature a straight-through, full-bore layout that allows the media to flow in either direction without restriction. When the valve is turned to the fully open position, the wedge disc lifts completely out of the line, leaving the port perfectly clear. This results in near-zero flow resistance and enables seamless pigging operations in pipeline manifolds.

3. Polished Internal Sealing Faces to Minimize Maintenance

Our internal seating interfaces and moving parts are precision-machined and finished with a friction-reducing surface polish. This ultra-smooth finish prevents the accumulation of scale, reduces operating torque during manual cycling, and protects the seating faces from abrasive wear. This design ensures consistent, long-term sealing performance and minimizes regular plant maintenance frequency.

4. Secure Manual Operation for Cost-Effective Control

Equipped with an ergonomic, high-leverage manual handwheel or an enclosed bevel gear operator, our valves provide highly dependable control for on-off isolation. This independent manual setup is ideal for applications requiring precise hands-on control where automated systems are unnecessary or impractical, allowing for straightforward process management while keeping initial hardware purchasing costs very low.

Strategic High-Pressure Cross-Industry Applications

FlowBiz high-performance API 6D gate valves are specified across primary distribution networks:

• Oil & Gas Mainlines & Terminals: Crude oil transport lines, natural gas transmission mains, custody transfer manifolds, and scraper launcher/receiver stations.

• Petrochemical Refineries & Hydrocarbon Loops: Hydrocarbon transit grids, volatile gas processing lines, high-pressure steam headers, and tank farm isolation gates.

• Power Generation Utilities: Main fuel oil burner feed loops, high-pressure cooling water networks, and auxiliary thermal isolation circuits.

• Heavy Industrial Processing Lines: Central utility air distribution headers, high-pressure industrial gas lines, and factory water supply manifolds.

Frequently Asked Questions (FAQ)

Q: What is the correct field installation sequence for an API 6D flanged gate valve?

A: Because our valves feature a symmetrical full-bore design, they provide absolute bidirectional isolation, meaning they can be installed with flow moving in either direction. Technicians must position the flange-type connections cleanly between the matching pipeline flanges, ensuring that the piping is straight and parallel. A high-quality, pressure-rated gasket must be centered between the sealing surfaces, and standard structural bolts inserted. Operators must tighten these bolts progressively in an alternating cross-star pattern to distribute the clamping torque evenly, achieving a secure, leak-proof mechanical joint.

Q: Why is a full-bore gate valve mandatory for oil and gas transmission lines compared to other valve styles?

A: Transmission lines require routine internal cleaning and wall-thickness inspections using automated tools called "pigs." A Full-Bore Gate Valve provides an internal port diameter that perfectly matches the inner diameter of the connecting pipeline. When fully opened, the gate withdraws entirely from the flow path, creating a perfectly smooth, unobstructed conduit that allows the inspection pig to pass through safely without hitting internal components or disrupting system pressure.

Q: What are the main benefits of utilizing ductile iron as the base material for medium-pressure environments?

A: Standard gray cast iron is brittle; sudden pipeline pressure spikes, thermal expansions, or water hammer forces can cause catastrophic casing cracks. Ductile Iron incorporates a nodular graphite microstructure that gives the metal excellent yield strength, high impact resistance, and structural flexibility. This allows the valve shell to deform slightly under extreme stress rather than fracturing, providing a highly reliable, cost-effective alternative to carbon steel for demanding medium-pressure applications.

Q: Can these manual gate valves be converted to pneumatic or electric actuator operation later?

A: Yes. Our standard valves are equipped with high-leverage manual handwheels and rising stems for dependable manual operation. However, the valve bonnet and yoke feature an industry-standard interface. If your facility transitions to automated control loops or requires remote emergency isolation, your maintenance team can unbolt the manual yoke assembly and mount a pneumatic diaphragm cylinder, hydraulic piston, or an electric multi-turn actuator directly onto the existing valve stem without removing the valve body from the pipeline.

Q: How can project procurement managers and engineers coordinate factory-direct quotes from the Pune hub?

A: Sourcing can be initiated by contacting our corporate sales and engineering division in Pune, Maharashtra, or Ahmedabad, Gujarat. Our technical staff will guide you through a comprehensive consultationassessing your precise nominal pipeline dimensions (2 in to 24 in), preferred pressure classification (Class 150# to 2500#), body material grade (Ductile Iron, Carbon Steel, or Stainless Steel), explicit fluid media properties (air, liquid, or gas), and preferred end connections (Flanged vs. Butt-weld)to deliver a certified technical product submittal data sheet and an itemized commercial proposal with factory-direct B2B pricing.

Are you optimizing a high-pressure hydrocarbon transmission mainline or upgrading an industrial facility cooling water header? Contact our Pune sales and engineering office today to receive complete technical data sheets, certified structural blueprints, and an itemized commercial proposal.
