FlowBiz Industrial 90-Degree Angle Globe Valves Pulsating Flow & Severe Service Systems

Welcome to the engineering authority for high-pressure throttling systems, pulsating line dampening, and advanced slurry handling management. Operating multi-axis CNC horizontal boring mills, precision seat-grinding centers, and certified hydro-pneumatic pressure validation corridors, FlowBiz specializes in manufacturing premium-grade 90-Degree Angle Globe Valves.

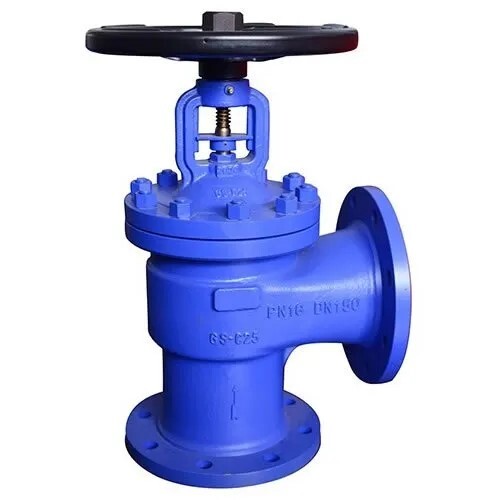

The FlowBiz Brand angle globe valve is an engineered modification of the standard straight-pattern globe valve, designed with its inlet and outlet ports set at a right angle (90 degree). Featuring a streamlined curved bore for optimal flow and a lower Cv value, these heavy-duty units act simultaneously as both a fluid control mechanism and a 90 degree piping elbow. They are highly specified for applications that experience periods of pulsating flow because of their exceptional capability to handle the destructive slugging effect, high fluid dynamics, and cavitation common to these systems.

Technical Specifications & Structural Standards

Every FlowBiz production block is precision-fabricated and subjected to 100% rigorous high-pressure hydrostatic shell testing, pneumatic seat leakage profiling, and fugitive emission audits.

Kinematics & Pulsating Slugging Flow Dynamics

The mechanical design of a 90 degree angle globe valve focuses on optimizing the fluid pathway to reduce pressure drop, minimize dead space, and effectively manage high-velocity pulsations:

• 90-Degree Right-Angle Flow Path: In a standard straight globe valve, fluid must make two sharp 90 degree turns inside the body casing, causing significant turbulence, high pressure drop, and areas of stagnant fluid. The angle globe valve redirects the fluid through a single, smooth 90 degree turn. This geometry allows the fluid to discharge downward directly through the seat profile, significantly reducing fluid friction and lowering the risk of material crystallization.

• Frictionless One-Piece Stem & Disc Axis: Traditional globe valves use a loose disc hooked onto the stem, which creates a internal gap where particles can settle and corrode. The FlowBiz design forges the disc and stem as a single, solid piece. This setup eliminates internal gaps and stops the disc from chattering or vibrating loosely when subjected to high-velocity pulsating slugs or rapid pressure changes.

• Slugging & Pulsation Resistance: When high-pressure fluid slugs or pulsating flow streams enter the valve body, the kinetic impact is absorbed directly by the robust, reinforced base of the valve rather than vibrating through the pipeline. The solid metal-to-metal seating interface prevents erosion and wire-drawing across the sealing faces, ensuring steady flow control over long operating cycles.

                  [ ERGONOMIC MULTI-TURN HANDWHEEL ]
                                  ||
                                  \/
                     +--------------------------+
                     | Low-Emission Packed Stem |
                  +--+--------------------------+--+
                  |  [ CLASS A BOLTED BONNET ]  |
                  |     /======Y======\         |
                  |    |  One-Piece    |        |
                  |    |  Solid Stem   |        |
                  |    |   +-------+   |        |
===============>  |====/   | Disc  |   |        |  [ INTEGRAL STELLITE SEAT ]
 Pulsating Slurry |        +-[SEAT]+   |        |
 Inflow Stream    +------------||---------------+
                               ||
                               \/
                    [ 90 VERTICAL DISCHARGE ]

Core Engineering Features & System Benefits

• Stellite Wear-Resistant Protection: The valve seat is integrally hardfaced with Stellite cobalt alloy, and the one-piece disc face features full Stellite overlaying. This hard facing protects the components from erosion, flashing, cavitation, and mechanical wear caused by abrasive mediums.

• Dead Space Free & Anti-Crystallization: The streamlined internal cavity features a pocketless design that prevents fluid trapping, scaling, and chemical build-up, protecting the system from crevice corrosion and line blockages.

• Low-Emission Stem Packing Matrix: Built with high-purity die-formed graphite and certified low-emission sealing rings, the packing box restricts toxic or volatile organic compound (VOC) leakage along the stem axis.

• Optional Thermal Steam Jackets & Flushing Ports: For fluids that solidify or crystallize as temperatures drop (such as liquid sulfur, bitumen, or heavy polymers), the valve can be upgraded with integrated heating steam jackets and packing flushing lines to maintain steady, fluid transport.

Strategic Industrial Application Sectors

Our 90-Degree Angle Globe Valves are engineered to manage demanding industrial fluids and serve as key control components across multiple sectors:

• Refineries & Petrochemical Utilities: Managing high-pressure blowdown lines, hot slurry transfer circuits, heavy oil lines, and vacuum distillation runs.

• Power Stations & Boiler Infrastructure: Controlling high-pressure boiler feed pump discharge loops, continuous boiler blowdown networks, and main steam lines.

• Chemical & Dyeing Processing Units: Handling highly reactive compounds, media prone to crystallization, crystallization loops, and volatile chemical matrices.

• Paper, Pulp, & Mining Facilities: Regulating high-velocity fiber stocks, mineral tailing lines, abrasive grit slurries, and green liquor circuits.

• Sugar & Distillery Systems: Controlling thick syrups, molasses distribution headers, massecuite pipelines, and hot evaporator utility lines.

Are you updating a chemical processing grid that requires an ASME Class 300 bolted bonnet angle globe valve with an integrated steam jacket, or configuring a boiler blowdown line that demands an integral Stellite-faced one-piece stem configuration? Contact the FlowBiz technical sales and engineering division today to secure a factory-direct quote, or ask a single relevant question regarding your specific line pressure or fluid pulsation frequencies below to guide the conversation forward.
