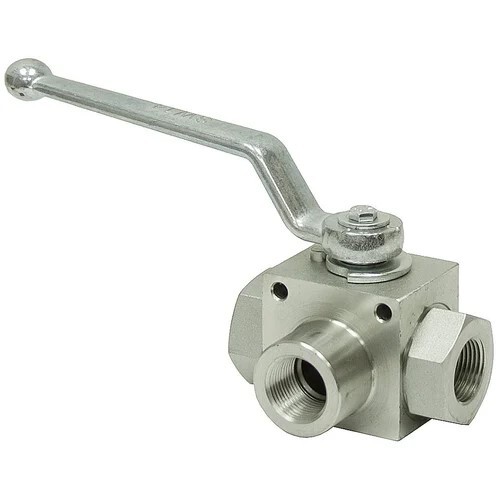

About Industrial 3 Way High Pressure Ball Valve Manufacturer in Vadodara

FlowBiz Multi-Port 3-Way Ball Valves Advanced Flow Diversion & Process Mixing Systems

Welcome to the engineering authority for high-pressure multi-path fluid routing, directional stream divergence, and automated process balancing. Operating advanced multi-axis CNC machining complexes, precision spherical-lapping cells, and automated pressure-boundary validation bays, FlowBiz specializes in manufacturing premium 3 Way Ball Valves.

Modern multi-stream pipelines require versatile engineering to route fluids cleanly without multiplying the number of isolation valves, fittings, and potential leak points in a system. FlowBiz answers this operational demand by providing full-bore and regular (reduced) port 3-way configurations that allow engineers to mix, split, or divert media flow through a single, compact valve body. Engineered to replace complex networks of multiple standard valves, our multi-port solutions reduce overall structural weight, lower friction losses, and streamline spatial layouts across demanding industrial grids.

Technical Specifications & Compliance Parameters

Every FlowBiz multi-port valve block undergoes strict hydrostatic shell validation and pneumatic seat leakage testing under international quality frameworks to guarantee tight isolation.

Design & Testing Standards

• Design Standards: Fully compliant with BS 5351, ANSI B16.34, and API 6D engineering codes

• Pressure Isolation Validation: 100% verified via BS 6755 Part II, API 598, and API 6D protocols

• Face-to-Face Dimensions: Manufactured to exact proprietary engineering standards for optimal flow profiles

Connection & Interface Profiles

• Flange Drilling Standards: Precision-machined to conform with ANSI B16.5, BS 10 Table, DIN, or IS 6392

• Butt Weld Connection: Machined in strict accordance with ANSI B16.25 dimensions

• Socket Weld Connection: Conforms perfectly to ANSI B16.11 high-pressure metrics

• Screwed Threaded Ends: Threaded to ANSI B1.20.1 standards, supporting both BSP and NPT lines

Kinematics & Flow Path Geometry Configuration

Achieving precise multi-directional flow control depends on selecting the ideal internal ball core profileL-Port or T-Portto align with your system routing requirements:

    3-WAY L-PORT (90 DIVERTING CORE)                     3-WAY T-PORT (MULTI-PATH MIXING CORE)

       POSITION 1: FLOW IN AND LEFT OUT                     POSITION 1: THREE-WAY MIXING / SPLITTING
                   ||                                                   ||
                   \/                                                   \/
           +-------++-------+                                   +-------++-------+
           |       ||  __   |                                   |   __  ||  __   |
 ========> |       | |  |  | ========>               ========>  |  |  | || |  |  | ========>
 Process   |       \ +==|  | Alternating             Process    |  |==+==+==+  | Continuous
 Inflow    |________|______| Outflow Stream          Inflow     |  |________|  | Outflow Paths
           +-------++-------+                                   +-------++-------+
                   ||                                                   ||
                   \/                                                   \/
       POSITION 2: EXCLUSIVELY SHIFTS RIGHT                 POSITION 2: ROTATION ISOLATES SINGLE BRACH

• L-Port Flow Diversion: The L-port ball features a 90-degree internal channel designed primarily to alternate a single incoming fluid stream between two different outlets. A clean quarter-turn rotation completely shuts off the first outlet line while simultaneously opening the second path. This mechanism is ideal for switching between dual storage tanks, alternate filter housings, or parallel relief loops.

• T-Port Continuous Mixing & Splitting: The T-port ball allows fluid to pass straight through while feeding a perpendicular branch line, or it can combine two distinct incoming streams into a single discharge header. This configuration provides total flexibility to mix, split, or bypass process media based on specific operational cycles.

• Versatile Actuation Options: Available with manual hand levers for simple, rapid manual positioning; mechanical heavy-duty gearboxes for large-bore systems; or fully automated with pneumatic cylinders or electric actuators for remote process synchronization.

Core Engineering Features & Plant Benefits

• Premium Stainless Steel Matrix: Precision-machined from high-grade stainless steel to ensure exceptional structural strength, rust resistance, and extended service life when exposed to corrosive fluids, air, or gases.

• Full & Regular Bore Options: Offered in full-bore profiles to match your pipe's inner diameter for maximum flow rates with zero pressure drop, or regular (reduced) bore structures to help optimize fluid velocity.

• Industrial Finish Armor: Finished in multiple technical coatings and polished profiles to meet distinct aesthetic and operational requirements while protecting against aggressive outdoor environments.

• Wide Thermal Tolerance: Built with rugged internal parts designed to maintain strict flow regulation and tight sealing across broad temperature and pressure conditions.

Strategic Manufacturing, Supply & Export Network

FlowBiz operates an integrated manufacturing, distribution, and export network out of our premier industrial infrastructure zones in Vadodara and Gandhidham, Gujarat, India. Sourcing directly from these strategic logistics hubs provides global processing industries with complete material traceability certificates and fast shipping to both domestic processing zones and international export markets.

Frequently Asked Questions (FAQ)

Q: How can I use a 3 Way High Pressure Ball Valve in my industrial application?

A: These multi-port valves are integrated directly into processing pipelines to control, mix, or divert the flow of water, air, gas, or liquid media. They are highly efficient options for any system where multiple flow paths are required, allowing you to manipulate directional fluid routing using a single valve body rather than a complex array of individual isolation blocks.

Q: What materials are used in the construction of these ball valves?

A: FlowBiz manufactures our 3-way series using premium, high-grade stainless steel alloys. This ensures maximum protection against chemical corrosion, structural erosion, and atmospheric wear, translating to long-term operational durability in harsh industrial settings.

Q: When should I consider installing a high pressure 3 way valve?

A: Installation is highly recommended when your system layout demands versatile, space-saving flow direction control under high pressures, particularly for complex skid systems or manifolds handling multiple media profiles like water, compressed air, chemicals, or gases.

Q: Where are your 3 Way High Pressure Ball Valves exported from?

A: We manage our primary manufacturing, technical supply, and international export logistics from our advanced engineering centers in Vadodara and Gandhidham, Gujarat, India, serving local refining hubs and global processing facilities across multiple industrial sectors.

Q: What is the process for ordering your 3 Way High Pressure Ball Valves?

A: Procurement is straightforward and customized. Simply connect with our technical sales division through our web portal or customer support team. Provide your exact process criteriaincluding media composition, pressure rating, pipeline size, operating temperature boundaries, and preferred end connectionsto receive detailed product recommendations and a competitive factory-direct quote.

Q: How do these valves benefit my industrial system?

A: They improve overall plant efficiency by delivering precise multi-path flow control, decreasing potential leak paths, and lowering long-term maintenance costs in harsh operating environments. Their wide temperature tolerance and robust unibody or split-body designs maximize overall system safety and operational availability.

Are you updating a chemical processing skid that requires a full-bore, 3-way L-port ball valve with an ANSI B16.5 flanged end connection and a pneumatic actuator, or configuring a high-pressure air compressor line in Gandhidham that demands a compact NPT threaded T-port layout? Contact our technical engineering and sales division today to secure a factory-direct quote and quick pricing, or ask a single relevant question regarding your specific fluid velocity or pressure boundaries below to guide the conversation forward.
