3-Piece High-Pressure Ball Valves | FlowBiz Exports

FlowBiz Exports is a premier, engineering-driven manufacturer, supplier, and global exporter of 3-Piece High-Pressure Ball Valves in India. Operating from our major industrial production hubs in Pune (Maharashtra) and Vadodara (Gujarat), we engineer these modular valves to manage critical fluid insulation across demanding process lines.

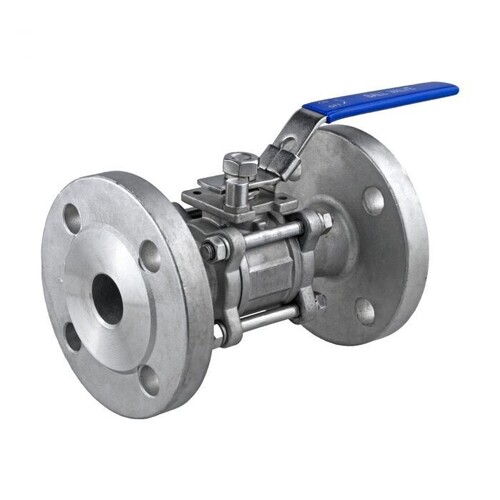

The 3-piece body design is the most versatile configuration available for heavy-duty piping systems. Composed of one central body section housing the ball, stem, and seats, paired with two independent end caps, this sandwich structure allows the entire center capsule to be swung out or removed by simply unbolting the joint fasteners. This enables maintenance crews to replace internal seals, seats, or packing swiftly without cutting or disrupting the main pipeline connections, driving down plant maintenance costs and maximizing operational uptime.

Technical Specifications & Code Compliance

Our 3-piece high-pressure series is precision-machined from fully certified raw stock to satisfy rigid international safety standards:

Strategic Design & High-Pressure Trim Features

1. Full Bore Structure for Slurry and Solid Handling

In our Full Bore body design, the internal diameter of the flow path through the ball matches the internal diameter of the connected piping exactly. When the valve is turned to the fully open position, it creates a perfectly straight, unobstructed path with zero internal step-downs or pockets. This profile eliminates fluid turbulence, keeps pressure drops (P) near zero, and ensures smooth flow while completely avoiding internal clogging when handling thick slurries, suspended solids, and pulp.

2. Advanced Glass-Filled Teflon (GFT) Thrust Washers

To handle heavy axial loads during intense high-pressure cycles, a specialized GFT (Glass-Filled Teflon) thrust washer is integrated into the stem works. GFT delivers exceptional structural strength and load-bearing properties. This washer protects the turning components against mechanical cold-flowing and structural deformation under heavy pressure vectors, preventing internal metal-to-metal galling and keeping the valve's breakout torque consistently low.

3. Three-Layer Independent Stem Sealing & Double Stuffing Box

To combat fugitive atmospheric emissions and safeguard processing cells, our valves feature an advanced double-packed stuffing box design containing three layers of advanced stem sealing. Backed by a full guided stem and integrated gland-bearings, this mechanism features independent stem rotation. The stem turns freely without transmitting rotational torque directly into the gland nut, preventing the packing from loosening over thousands of operations.

Integrated Safety & Operator Security

• Blowout-Proof Stem Architecture: Engineered with an internal, bottom-entry mechanical shoulder. Under sudden system pressure spikes, hydraulic water hammers, or thermal surges up to 200C, it is physically impossible for the stem to eject or blow out, protecting site operators from catastrophic field failures.

• Antistatic Design Elements: Integrated grounding devices maintain continuous electrical continuity between the ball, stem, and valve body. This safely dissipates static charge build-up caused by fluid friction, eliminating spark risks in explosive gas or hydrocarbon zones.

• Certified API-607 Fire Containment: Crucial for oil & gas, refinery, and chemical installations. In the event of an accidental facility fire that destroys the primary soft polymer seats, the valve shifts downstream to form a secondary metal-to-metal seal, keeping volatile process media safely contained.

Flexible Pipeline Connectivity & Actuation Top Works

FlowBiz 3-piece ball valves offer versatile end connection configurations tailored to match any global industrial facility standard:

• Screwed/Threaded Connections: Precision-cut NPT or BSP female threads for rapid, low-profile assembly in compact piping manifolds and utility skids.

• Welded Connections (Socket Weld / Butt Weld): Creates a permanently fused, zero-leakage joint suitable for high-pressure or specialized chemical processes where external joint weeping cannot be tolerated.

• Flanged Connections: Fully compliant with ANSI, DIN, and BS standards, enabling quick bolting and unbolting for large-scale distribution lines.

Ready for Automation (ISO 5211 Mounting Pad)

Every valve body includes an integrated ISO 5211 mounting pad as standard. This standardized interface permits bracketless, direct-mount installation of pneumatic cylinders or electric automated actuators. This allows plant engineers to transition lines from manual hand-lever quarter-turn control to automated SCADA loop integration quickly and cost-effectively.

Frequently Asked Questions (FAQs)

Q: Why is a 3-piece ball valve highly preferred over a 1-piece or 2-piece valve for complex setups?

A: A 1-piece or 2-piece valve requires you to unbolt the entire valve assembly from the pipeline flanges or cut it out of welded lines to replace a worn seat or internal seal. A 3-piece ball valve features a modular three-part assembly. By simply loosening the body bolts, the complete center capsule containing the ball, stem, and seats can be swung out or removed entirely. The end connectors stay fixed to the pipe, allowing maintenance crews to complete inline servicing with minimal process downtime.

Q: What advantages do PTFE, RPTFE, and metal seats offer in high-pressure networks?

A: * Virgin PTFE: Provides absolute chemical inertness and low actuation friction across standard fluid lines and clean process gases.

• Reinforced PTFE (RPTFE): Fortified with glass fibers or carbon fillers to deliver higher structural resistance against cold-flowing and mechanical deformation under intense high-pressure loads.

• Severe-Service Metal Seats: Precision hard-faced metallic options engineered to survive abrasive suspended solids, slurries, or high-temperature steam loops where soft polymers would instantly tear or erode.

Q: How does the NACE material compliance affect the valve's application scope?

A: Compliance with NACE specification standards (such as MR0175) certifies that the valves core metallurgy and structural trims have undergone strict thermal and chemical treatments to resist sulfide stress cracking. This makes these high-pressure valves highly dependable for processing "sour" crude oil, natural gas, and hazardous petrochemical media containing hydrogen sulfide (HS), preventing hydrogen embrittlement and unexpected body cracking.

Q: Why choose FlowBiz as your trusted 3-piece ball valve partner in India?

A: FlowBiz Exports balances high-precision manufacturing depth with strict compliance to global validation benchmarks like API 598 and API 6D. By checking 100% of our production lines for zero-leakage pressure containment before final export packing, we eliminate performance risks in the field. Our capacity to deliver customized trims, multiple connection choices, and certified fire-safe equipment makes us a highly dependable supply chain partner for critical process installations across India and global markets.
