Industrial Pipeline Strainers: Comprehensive Engineering Configurations and Selection Standards

In continuous-process pipeline networks, protecting high-value downstream machinerysuch as multi-stage centrifugal pumps, magnetic flowmeters, heat exchangers, and precise control valvesfrom suspended particulates is a core operational requirement. Foreign debris like pipeline scale, rust, welding slag, and mineral crystals can quickly score internal pump impellers, clog tight valve orifices, or foul sensitive instruments, leading to toxic leaks and costly plant downtime.

An industrial Pipeline Strainer provides a high-integrity, mechanically closed solution. By installing a strainer inline, fluid or gas streams are directed through a perforated or wire-mesh filter element. This element intercepts and retains solid contaminants while permitting clean media to pass unobstructed, safely isolating downstream assets from mechanical wear.

                    Standard Pipeline Filtration Path


 [ Fluid Input ]  [ Perforated Mesh Element ]  [ Clean Output ]
 (Scale & Debris)       (Traps Solid Particles)        (To Pumps/Valves)

FlowBiz Exports is an elite global fluid-handling brand and the premier Strainer Manufacturer in India. Operating high-precision production centers, we engineer an extensive portfolio of industrial strainers designed to meet stringent global processing metrics and deliver optimal pressure containment (Pmax up to 25 Bar) across heavy industrial corridors.

Technical Specifications & Operational Framework

FlowBiz strainers are cast, fabricated, and rigorously tested to ensure strict compliance with global engineering codes, including ASME, DIN, and IS standards.

Core Product Parameters

Metallurgy & Exterior Shield Profiles

• Premium Body Materials: Stainless Steel 304 (SS 304), Stainless Steel 316 (SS 316), Cast Iron (CI), Carbon Steel (CS), and Brass.

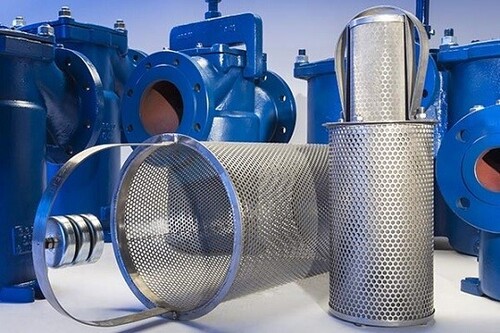

• Filter Screen Trim: High-grade, corrosion-resistant SS 304 or SS 316 mesh sheets.

• External Shield Finish: High-build, corrosion-resistant industrial epoxy coating (Standard industrial blue or customized per client specification).

Comparative Matrix: Structural Typologies

Selecting the correct strainer architecture depends heavily on spatial constraints, media type, and the expected mass of particulate accumulation.

Critical Engineering Features & Operational Benefits

1. Tailored Micron and Mesh Filtration Control

To ensure efficient particle retention without unnecessarily throttling the pipeline flow, FlowBiz provides a versatile mesh spectrum ranging from 10 to 500 mesh. A lower mesh count features larger openings for high-velocity raw water lines, while a higher mesh count delivers fine filtration designed to protect micro-gap control orifices and analytical instrumentation panels.

2. High Metallurgy Grade and Structural Density

Aggressive processing fluids and severe temperature profiles can subject internal screens to localized pitting and chemical leaching. Fabricating our bodies and replaceable elements from high-grade SS 304 and SS 316 stainless steel provides superior resistance to stress corrosion cracking. For heavy-duty, high-pressure utility environments, our cast iron and carbon steel variants supply robust mechanical strength.

3. User-Friendly Maintenance Framework

FlowBiz strainers are designed with user convenience in mind to minimize operational downtime. Each structure features an easily accessible cover cap or bolted blind flange. When the internal screen requires servicing, maintenance teams can quickly isolate the pipeline, open the designated access cover, pull the used element out for rinsing, or slide a fresh, replaceable filter screen into place.

Pan-India Supply Capabilities & Logistic Network

Operating an extensive manufacturing and trading matrix from our flagship hubs, FlowBiz ensures prompt project dispatch and technical support across all major industrial production and manufacturing zones in India:

• Gujarat Logistics: Surat, Ahmedabad, Vapi, Valsad, Gandhidham, Kutch, Ankleshwar, Bharuch.

• Maharashtra Corridors: Mumbai, Nashik, Pune, Thane, Aurangabad, Satara, Sangli, Nagpur, Kolhapur.

• Central & Southern India Hubs: Indore, Dewas, Bhopal, Chennai, Coimbatore, Salem, and international export channels.

Frequently Asked Questions (FAQ)

Q: How can an engineer accurately determine the correct mesh size for a process pipeline?

A: Selection depends entirely on the size of the smallest contaminant you need to retain and the clearance tolerances of your downstream equipment. Choosing a mesh that is too fine for a high-debris line will cause the screen to blind over rapidly, inducing a steep pressure drop (P) and starving downstream pumps. As an engineering standard, the filter openings should be sized to roughly half the diameter of the maximum allowable particle width that can safely pass through downstream components.

Q: What exact quality assurance steps are performed during hydrostatic testing at FlowBiz?

A: To satisfy rigorous industrial safety audits, every completed strainer shell undergoes 100% hydrostatic and leakage testing prior to leaving our facility. The housing is pressurized up to 1.5 times its structural design rating (handling operational limits up to 25 Bar) to verify casting density, eliminate structural porosity, and ensure that the access cover seals are completely drop-tight under extreme conditions.

Q: What are the distinct advantages of applying a high-build epoxy coating to a cast iron strainer?

A: Raw cast iron is highly vulnerable to external rust and atmospheric oxidation when placed in coastal manufacturing zones or humid processing environments. Applying a premium epoxy coating creates an impenetrable non-reactive barrier over the metal housing. This extends the working life of the casting, prevents body thinning from environmental wear, and allows for clean, color-coded pipeline tracking.

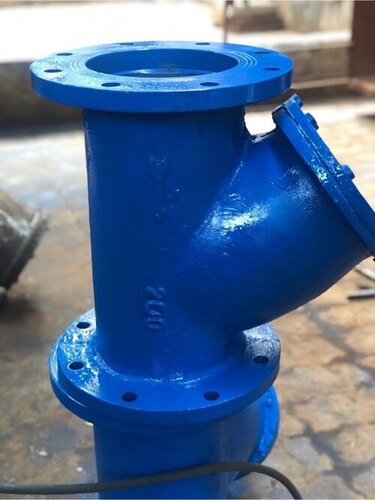

Q: Can a Y-type strainer be safely installed in a vertical pipeline loop?

A: Yes, but with strict orientation rules. A Y-type strainer can be safely mounted vertically only if the media flow travels downward. The strainer must be installed with its slanted filter leg pocket pointing downward. This positioning ensures that gravity naturally draws captured debris into the collection chamber, keeping the main line clean and preventing solids from falling backward down the pipe during routine maintenance cleaning.
