Industrial Conical Strainers: Cost-Effective Pre-Commissioning and Asset Protection

During the initial startup and pre-commissioning phases of a newly constructed process plant, pipelines are frequently contaminated with internal debris such as weld slag, pipe thread tape, rust, loose scale, and construction grit. If these sharp particulates are allowed to accelerate through the piping system at high velocities, they can score control valve seats, erode pump impellers, shatter flowmeter rotors, and puncture sensitive pressure gauges.

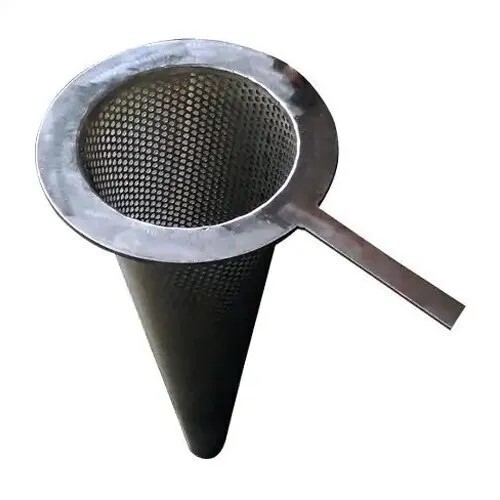

An industrial Conical Strainer (frequently referred to as a Temporary Strainer or Witch's Hat strainer) provides a highly reliable, cost-effective defense during plant startup. Designed to be clamped directly between two pipeline flanges, its elongated conical geometry offers a large surface-filtration area that captures suspended solids without inducing severe system pressure drops (Pressure Difference). Once the pipeline has been thoroughly flushed and the process stream stabilizes, these strainers can either be removed or left in place as a permanent filtering element.

                      Inline Flanged Installation


        [ Upstream Pipe ]   \  Mesh Cone  /   [ Downstream Assets ]
                                \  Basket   /       (Pumps, Meters, Gauges)
                             Flange         Flange

FlowBiz Exports is a premier industrial brand and a trusted Conical Strainer Manufacturer with a robust production network extending across Pune (Maharashtra) and Vapi (Gujarat), India. We manufacture high-durability temporary and permanent conical strainers engineered to safeguard high-value downstream machinery across critical industrial corridors.

Technical Specifications & Compliance Engineering

FlowBiz Conical Strainers are precision-fabricated in strict accordance with global pressure vessel guidelines, ensuring absolute dimensional compliance with existing piping layouts.

Core Engineering Parameters

Structural Metallurgy Configurations

• Stainless Steel 304 (SS304): Standard for general utility lines, water systems, and moderate chemical applications.

• Stainless Steel 316 (SS316): Premium grade for highly corrosive process environments, pharmaceuticals, acids, and food-grade operations.

• Carbon Steel (CS): Heavy-duty, economical selection for oil & gas, high-pressure steam, and non-corrosive hydrocarbon headers.

Critical Engineering Features & Operational Benefits

1. Highly Cost-Effective Pre-Commissioning Protection

Compared to permanent, heavy-duty duplex or T-type strainer housings, conical strainers provide an exceptionally economical filtration solution. They utilize an ultra-compact structural profile that installs directly inside the bolt circle of standard pipe flanges, minimizing material costs while providing premium mechanical filtration during critical plant startups.

2. High Thermal and Pressure Resilience

With a mechanical boundary rating up to 40 Bar and a thermal tolerance reaching up to 250C, our strainers excel under harsh operating conditions. Whether installed on high-temperature steam lines, volatile gas headers, or aggressive chemical loops, the structural stainless steel framework resists structural collapse, warping, and media-induced wear.

3. Customizable Micro-Mesh & Flexible Connections

To capture specific particle geometries, FlowBiz offers customizable wire mesh liners ranging from a coarse 40 microns up to an ultra-fine 400 microns. The outer structural ring can be drilled to match ANSI or DIN flange specifications, or machined with screwed or welded ends, ensuring a seamless drop-in fit into any existing facility setup.

Strategic System & Industrial Applications

Our inline temporary conical strainers are engineered to protect critical downstream components across multiple sectors:

• Chemical & Petrochemical Complexes: Intercepting scale and pipe grit in raw chemical lines before fluid reaches expensive control valves and mixing manifolds.

• Pharmaceutical & Bio-Tech Processing: Utilizing high-purity SS316 meshes to protect sensitive analytical instrumentation and batch processing lines.

• Food & Beverage Facilities: Providing sanitary filtration of process water, steam, and liquid ingredients during startup flushes.

• Oil & Gas Utilities & Refineries: Installed upstream of multi-stage centrifugal pumps, compressors, and custody-transfer flowmeters to capture residual pipeline scale.

Frequently Asked Questions (FAQ)

Q: What is the recommended orientation for installing a conical strainer?

A: FlowBiz conical strainers are structurally balanced for flexible installation in either horizontal or vertical pipelines. When installing the strainer, it should be mounted inline with the cone apex pointing downstream (in the direction of fluid travel). This orientation ensures that fluid velocity naturally moves captured debris toward the tip of the cone, utilizing the full surface area of the mesh sides and preventing premature blinding or flow restriction.

Q: What is the exact maintenance workflow for cleaning a reusable conical element?

A: Cleaning the element is highly straightforward, reducing operational downtime:

1. Isolation & Venting: Isolate the pipeline section, vent internal system pressure, and drain any residual media safely.

2. Unbolting: Loosen the flange bolts at the strainer junction, slide the piping apart slightly, and slide out the conical mesh basket.

3. Flushing: Rinse or clean the basket with a compatible solvent or high-pressure water stream to dislodge trapped particulates. Because the element is fully reusable, it can undergo repeated cleaning cycles without diminishing its filtration efficiency.

4. Reinstallation: Inspect the support rings, place a new set of flange gaskets or O-rings on the connection faces, re-insert the strainer, and torque the bolts evenly.

Q: How do engineers select the right micron rating for their temporary strainer?

A: The selection depends on the clearance tolerances of the downstream assets you need to protect. For example, robust centrifugal pumps can generally handle larger particulates, making a coarser 400-micron mesh sufficient. However, precision analytical devices, fine spray nozzles, and micro-gap control valves require tight protection, necessitating an ultra-fine 40-micron mesh liner to capture minute construction particulates.

Q: Why should an engineer choose a FlowBiz strainer fabricated in Pune or Vapi?

A: FlowBiz utilizes certified welding processes and high-density, defect-free stainless and carbon steels across our manufacturing facilities in Pune and Vapi. Every batch is fabricated in strict accordance with ASME codes, undergoing rigorous structural inspections to ensure the conical baskets can withstand high differential pressures (Pressure Difference) without collapsing or tearing during the initial plant startup flush.
