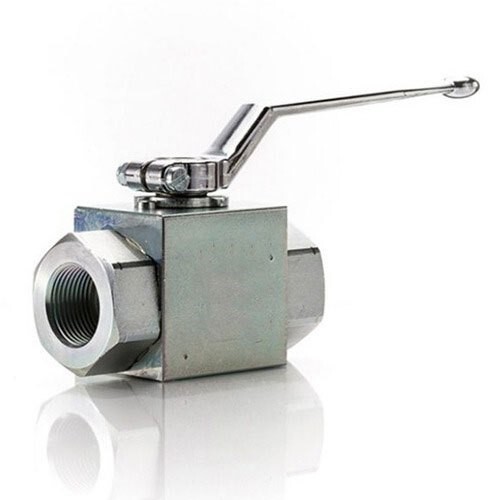

High-Pressure Hydraulic Ball Valves (Up to ANSI Class 2500) | FlowBiz Valves

FlowBiz Valves is a premier, engineering-driven manufacturer, supplier, and global exporter of heavy-duty High-Pressure Hydraulic Ball Valves in India. Operating from our high-precision manufacturing hub in Vapi, Gujarat, we engineer this specialized series to anchor critical high-pressure grids.

The FlowBiz high-pressure series is based on advanced floating ball valve technology, structurally engineered for maximum endurance, pressure containment, and field reliability. Designed to withstand a massive working pressure of up to ANSI Class 2500 (414 bar / 6000 psi), these valves are necessary for severe fluid loops where standard industrial valves would suffer structural fatigue, body deformation, or seal blowouts.

Technical Specifications & Engineering Framework

Our high-pressure hydraulic series is precision-machined from premium raw stock to satisfy rigid global pipeline criteria:

Strategic Design & Mechanical Advantages

1. Glandless Construction (Zero Manual Maintenance)

A major engineering advantage of the FlowBiz high-pressure hydraulic series is its glandless construction. Traditional valves utilize manual compression glands that require periodic field tightening and maintenance to stop packing weepage. Our glandless architecture utilizes advanced internal, self-adjusting sealing rings that stay energized under constant mechanical tension. This layout completely eliminates the need for routine manual readjustment of seals, dropping plant maintenance costs and preventing unexpected packing failures.

2. Dual-Sided Bi-Directional Floating Sealing Principle

The internal spherical ball is cradled between high-density, low-friction polymer seats on both the upstream and downstream sides. When the valve is closed, the high-pressure fluid forces the floating ball slightly downstream, pressing it firmly against the downstream seat. This dual-sided sealing principle achieves an absolute, bubble-tight shut-off in both flow directions, ensuring zero fluid migration across high-pressure gas, liquid, or hydraulic oil lines.

3. Forged Steel & Rolled Bar Custom "Sculpting"

Rather than relying on cast iron or poured cast steelwhich can harbor hidden sand holes or gas porositiesour high-pressure series is manufactured strictly from solid forged blocks or rolled bar stock. This structural density allows our Vapi engineering department to "sculpt" the valve body to your customer-specific dimensions, specialty connections, or unique face-to-face standards in a very short production timeframe.

4. Full-Flow Passage & Fluid Efficiency

Featuring a true full-flow passage, the internal diameter of the flow orifice through the ball perfectly matches the inside diameter of the connected hydraulic piping. This ensures a completely straight-through path when fully open, keeping pressure drops (P) near zero and eliminating fluid turbulence. This profile is essential for high-velocity hydraulic machinery where throttling or fluid friction could generate excessive system heat.

Surface Engineering & Environmental Shields

To shield the underlying metallurgy from aggressive industrial environments, chemical fumes, and high-pressure hydraulic washdowns, our valves receive specialized external passivations:

• Phosphate-Plated Finish: Provides an ultra-dense chemical barrier that offers excellent baseline corrosion resistance and serves as an ideal primer for heavy industrial environments.

• Yellow Zinc-Plating: Delivers an elite sacrificial protective layer that prevents atmospheric rusting and oxidation in high-humidity outdoor installations or coastal marine applications.

Frequently Asked Questions (FAQs)

Q: Why is a Class 2500 rating critical for hydraulic ball valves?

A: Hydraulic systems utilize high-density fluids to transfer massive mechanical forces, frequently inducing extreme system pressure spikes and intense fluid velocities. A standard utility valve is only rated for low pressure boundaries and will crack or experience internal seal blowouts under heavy hydraulic loads. An ANSI Class 2500 rating certifies that the valve's wall thickness, metallurgy, and seating elements are engineered to safely contain continuous working pressures up to 6000 PSI (414 bar), providing absolute safety and peace of mind.

Q: What types of process media are these high-pressure valves equipped to handle?

A: Thanks to their robust stainless steel or forged body construction paired with advanced sealing technology, these valves handle a wide variety of industrial media. They are highly efficient for regulating high-velocity compressed air, high-pressure utility water, aggressive chemical liquids, industrial gases, and heavy-duty hydraulic oils across an expansive temperature range of -40F to 392F.

Q: How does the Vapi facility manage international procurement and shipping?

A: FlowBiz maintains a dedicated international logistics and export division. Global clients can contact our sales department with their exact system specifications. Our team coordinates the entire processincluding custom valve sculpting, 100% hydrostatic testing, global export compliance documentation, ocean/air freight packaging, and after-sales technical supportensuring a seamless procurement experience from initial inquiry to final job-site delivery.

Q: Why choose FlowBiz as your long-term high-pressure valve partner in Vapi?

A: Operating from Vapi, FlowBiz Valves balances raw manufacturing speed with strict international quality validation metrics. By precision-machining every high-pressure unit from certified forged steel, utilizing glandless self-adjusting seals, and testing 100% of our production line for zero-leakage pressure containment, we eliminate operational risks in the field. Our ability to supply custom-sculpted, Class 2500 bubble-tight equipment at competitive market prices makes us a highly dependable supply chain partner for modern industrial complexes worldwide.
