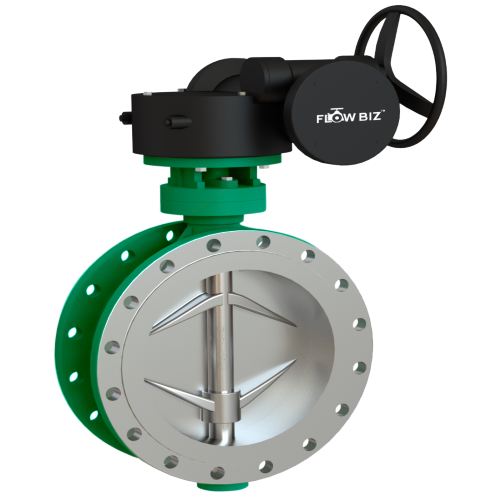

API 609 Category B Triple Offset Fire-Safe Butterfly Valves FlowBiz India

Welcome to FlowBiz Export Private Limited, a certified global engineering authority for high-pressure fluid containment, zero-leakage thermal isolation, and severe-service process line automation. Operating specialized heavy-wall steel foundries, advanced multi-axis CNC machining grids, and high-temperature hydrostatic testing facilities in Rajkot and Ahmedabad, Gujarat, we are India's premier manufacturer, supplier, and global B2B exporter of heavy-duty Fire-Safe Triple Offset Butterfly Valves.

Our advanced metal-to-metal sealing quarter-turn valves are specifically engineered to provide an absolute, bubble-tight bidirectional shut-off across high-temperature hydrocarbon streams, steam lines, and aggressive chemical processing headers. From our primary manufacturing complexes in Gujarat, we support critical heavy infrastructure networks nationwideincluding key hubs like Vapi, Valsad, Surat, Gandhidham, Kutch, Ankleshwar, Bharuch, Mumbai, Pune, Thane, and Chennaibacked by fast-tracked international maritime logistics for direct project export worldwide.

Technical Specifications & Compliance Parameters

FlowBiz Triple Offset Butterfly Valves feature a multi-layered geometry that eliminates friction between the seal ring and the seat throughout its entire rotational stroke. The valve utilizes a high-performance laminated disc seal ring that compresses uniformly into the body seat upon final closure, achieving a snug, high-performance fit that meets the most stringent fugitive emission and zero-leakage standards.

Core Engineering Features & Design Advantages

1. Advanced Triple Offset Geometry for Frictionless Rotation

Traditional concentric or double-offset rubber-lined valves suffer from continuous seat rubbing during execution, which leads to accelerated elastomer tearing and premature inline failure under intense heat. The FlowBiz design incorporates three distinct structural offsets:

• Offset 1 & 2 (Double Offset): The shaft centerline is displaced behind the sealing face and to one side of the pipe centerline, allowing the disc to lift smoothly off the seat.

• Offset 3 (Triple Offset): The contact axis of the body seat is machined into an asymmetrical conical profile. This profile changes rotation into a camming action, ensuring the sealing components only meet at the final point of complete closure. This design completely eliminates friction throughout the entire stroke, drastically reducing operating torque and extending the valve's operational life.

2. API 607 Certified Fire-Safe Laminated Construction

For volatile petrochemical manifolds and high-consequence refining lines, maintaining structural valve integrity during a plant fire is a critical safety requirement. Our valves utilize a laminated disc seal ring composed of high-purity SS316 interleaved with graphite layers. If a fire breaks out and destroys any soft polymer components nearby, the resilient metal-to-metal seating boundary remains fully intact, providing reliable fluid containment and preventing catastrophic external line leakage.

3. Space-Saving and Lightweight Alternative to Linear Valves

Large-bore gate, globe, and ball valves feature massive, heavy bodies that require bulky structural pipe hangers and take up significant physical space within tightly packed process manifolds. Our triple offset wafer-type valve provides a highly efficient alternative. It delivers an identical bubble-tight shut-off while offering a compact face-to-face profile that cuts structural weight by up to 60%, significantly lowering your initial freight, handling, and field installation costs.

4. Versatile Trim and High-Alloy Material Selection

To ensure long-term reliability in highly corrosive, high-temperature fluid loops, FlowBiz manufactures all internal components from premium materials. For standard steam and utility lines, high-strength ASTM A216 WCB carbon steel provides exceptional strength. For aggressive chemical processing or light vacuum lines, we utilize marine-grade ASTM A351 CF8M or low-carbon CF3M stainless steel, which prevents localized intergranular oxidation and resists pitting at temperatures up to 550C.

Strategic High-Temperature Industrial Applications

FlowBiz fire-safe triple offset butterfly valves are specified across high-consequence processing lines:

• Petrochemical & Oil Refining Mainlines: Hydrocarbon fraction headers, high-temperature crude handling loops, tank farm isolation lines, and flare gas systems.

• Chemical Process Manifolds: Safe routing, throttling, and absolute isolation of volatile chemical reagents, organic solvents, and high-temperature process acids.

• Thermal Power Generation Plants: Superheated steam lines, main boiler feed-water manifolds, steam turbine extraction systems, and condenser lines.

• District Heating & Utility Grids: High-capacity co-generation headers, industrial heat exchanger feeds, and high-pressure hot water distribution circuits.

Frequently Asked Questions (FAQ)

Q: Why is cast iron unsuited for a triple offset valve rated for 550C and fire-safe service?

A: Cast iron has a brittle crystalline structure that lacks the necessary impact resistance and thermal ductility required for severe-service applications. Under international codes like ASME B16.34, cast iron is strictly restricted to low-pressure, low-temperature utilities. Exposing cast iron to thermal shocks, high pressures, or a fire up to 550C could cause sudden structural cracking or catastrophic failure. For these reasons, codes like API 609 mandate the use of high-tensile Cast Carbon Steel or Stainless Steel to ensure safe pressure containment.

Q: What is the primary difference between a Class VI leakage profile and lesser leakage ratings?

A: Valve sealing performance is governed strictly by standards like ASME B16.104 / FCI 70-2. While Class IV and Class V allowances are designed for general industrial modulation and permit a minor, calculated bypass of process fluids, Leakage Class VI mandates an absolute bubble-tight shut-off. This zero-leakage standard is achieved through our precision-ground metal-to-metal and laminated graphite seating matrix, making it the ideal choice for high-consequence chemical isolation where any internal product seepage could cause unsafe line conditions or system contamination.

Q: How does bidirectional flow control benefit complex processing manifolds?

A: Standard unidirectional valves can only hold pressure from one specific direction; if backpressure or a sudden flow reversal occurs, the fluid can lift the disc off the seat, causing internal bypassing. A Bidirectional Triple Offset Valve is engineered to maintain a reliable, high-performance seal regardless of whether the process pressure originates from the upstream or downstream side. This capability gives plant designers complete flexibility when laying out complex piping systems, bypass loops, and automated chemical manifolds.

Q: Can a triple offset butterfly valve be safely used for throttling and flow regulation?

A: Yes. Traditional rubber-lined butterfly valves can suffer from seat tearing and fluttering if they are held partially open to throttle a line, as the high-velocity fluid stream erodes the soft elastomer. Because the FlowBiz triple offset valve features a rugged metal-to-metal seating boundary and a torque-seated camming action, it handles high-velocity fluid streams without vibration or seat degradation. This makes it an exceptional choice for precise flow throttling and long-term isolation service alike.

Q: How can project procurement managers and engineers coordinate factory-direct quotes?

A: Sourcing can be initiated by contacting our corporate sales division in Rajkot or Ahmedabad, Gujarat. Our application engineering division will guide you through a comprehensive technical consultationassessing your precise nominal pipeline diameters (2" to 12"), preferred metallurgy (WCB vs. CF8M), target system pressure and temperature profiles, and required automated actuation topworksto deliver a certified technical submittal data sheet and an itemized commercial proposal with factory-direct B2B pricing.

Are you optimizing a high-temperature steam utility loop or upgrading a fire-safe chemical process manifold? Contact our sales and engineering office today to receive comprehensive technical sheets, certified dimensional blueprints, and an itemized commercial proposal.
