Industrial T-Type Strainers: Compact Piping Configurations and Structural Standards

In continuous-process piping networks, shielding downstream assetssuch as high-pressure centrifugal pumps, control valves, instrumentation skids, and nozzlesfrom debris is essential. Particulates like weld slag, rust, thread tape, and suspended solids can cause severe scoring, erosion, and complete mechanical failure.

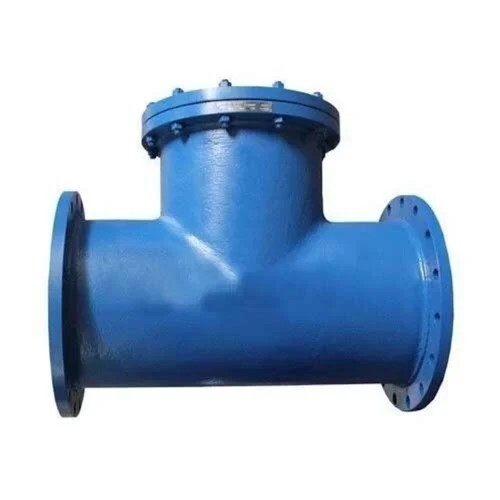

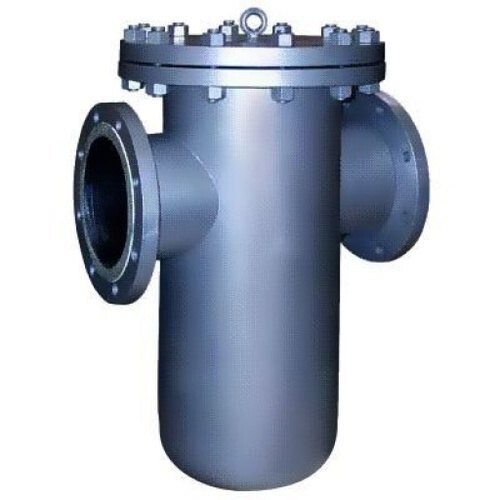

A T-Type Strainer (or Tee Strainer) provides a highly compact, custom-fabricated solution for loops with tight spatial constraints. Engineered primarily from standard pipe tees, these strainers feature a straight-through flow path that minimizes pressure drop (P). They can be serviced without disrupting the core pipeline framework, making them a preferred alternative to bulky basket strainers in space-restricted applications.

                         Inline Tee Configuration


 [ Fluid Input ]    [ Fluid Output ]
                          Perforated Mesh           (Downstream Asset)
                          Filter Element

                                   (Branch Extraction)


                        Weld Neck Flange

                        Blind Flange Cover

                        Threaded Drain Plug


FlowBiz Exports is a leading global brand and a trusted T-Type Strainer Manufacturer in Gandhidham, Gujarat, India. We specialize in precision engineering custom-fabricated and cast tee strainers designed to deliver high-capacity micro-filtration and long service life.

Technical Specifications & Geometry Estimation

Because T-type strainer dimensions are manufacturer-specific, project layout engineers often face structural data gaps during the preliminary design stages of a facility. If vendor data is not yet available, standard dimensions can be accurately estimated by aggregating the dimensions of standard ASME pipe tees and corresponding weld neck flanges.

Core Engineering Parameters

Critical Engineering Features & Piping Advantages

1. Ultra-Compact, Low-Profile Footprint

Unlike massive simplex basket strainers that require dedicated ground support structures or large piping offsets, T-type strainers utilize a streamlined design. This profile allows them to be installed directly into compact pipeline networks where space is limited, providing protection for high-value equipment without expanding the system's structural footprint.

2. High Mechanical Longevity & Thermal Resilience

The internal filter elements are crafted from high-quality SS 304 stainless steel, providing excellent resistance to surface pitting, erosion, and cavitation wear. These strainers handle continuous operating temperatures up to 200C and volatile system pressures, making them suitable for aggressive chemical dosing lines, steam utility loops, and hydrocarbon headers.

3. Simplified Branch Maintenance & Bottom Blow-Down

The branch configuration of the tee serves as the isolation pocket for the filter mesh element. For routine maintenance, operators can open the threaded drain connection on the blind flange to blow down settled sludge and loose scale. For deeper cleaning cycles, the blind flange can be unbolted, allowing technicians to pull the filter screen vertically or horizontally out of the branch without removing the strainer's main body from the process loop.

Strategic System & Industrial Applications

Our custom-configured T-type strainers are designed for inline installation at the inlet side of equipment across multiple sectors:

• Chemical Manufacturing Operations: Capturing unreacted crystalline solids, pipeline scales, and particulates ahead of high-value control valves.

• Refineries & Petrochemical Lines: Filtering out debris from water-based process flows, utilities, and hydrocarbon streams.

• Power Generation Facilities: Positioned on cooling tower lines, boiler feed circuits, and condensate loops up to 200C.

• Pre-Commissioning & Startup Phase: Installed as temporary or permanent filters during plant commissioning to catch construction debris, weld slag, and sand before it fouls downstream machinery.

Frequently Asked Questions (FAQ)

Q: Can a T-type strainer be safely mounted in vertical piping loops?

A: Yes. FlowBiz T-type strainers are engineered to operate reliably in both horizontal and vertical positions. When mounting the strainer vertically, ensure that the media flow travels downward into the tee and that the branch containing the filter element is oriented downward. This configuration ensures that gravity naturally draws captured debris into the branch collection pocket, preventing solids from falling back down into the main line during cleaning cycles.

Q: Why is an SS 304 disc filter preferred over standard carbon steel components?

A: Carbon steel components inside a fluid header are highly vulnerable to aggressive rust and oxidation, which can cause the filter holes to blind over or corrode away completely. Utilizing SS 304 stainless steel provides superior structural strength and corrosion resistance, ensuring that the filter mesh maintains its opening shapes and filters effectively without degrading, even under high pressure gradients.

Q: What is the technical ordering workflow for customized configurations from Gandhidham?

A: Our manufacturing facility coordinates closely with your project's specific parameters:

1. Parameter Submission: Sourcing teams provide their line dimensions, fluid traits, expected velocity profiles (Cv), thermal constraints, and target flange standards (such as ANSI/ASME or DIN codes).

2. Custom Fabrication: Our engineering team models the required face-to-face dimensions and custom-tailors the port sizes to ensure a perfect match for your piping configuration.

3. Quality Verification: The completed units undergo thorough hydrostatic pressure and structural tests before being dispatched for national distribution or global export.

Q: How can an operator tell when the internal filter mesh requires servicing?

A: The most effective method for tracking filter clogging is to check the differential pressure (P) using pressure indicators placed upstream and downstream of the strainer module. A clean strainer displays a negligible pressure drop. As the mesh basket captures particulate matter, the internal flow path becomes restricted, causing the upstream line pressure to rise. A distinct pressure variance indicates that it is time to manually bleed the drain connection or open the blind flange cover to clean the screen.
