Industrial Swing Check Valves: Design Standards and Uni-Directional Flow Control

In continuous-process piping networks, preventing fluid backflow is critical for maintaining mechanical safety and structural integrity. Reverse flow can cause severe cross-contamination, unseat delicate pipeline instruments, and drive centrifugal pumps backward, risking catastrophic motor burnouts.

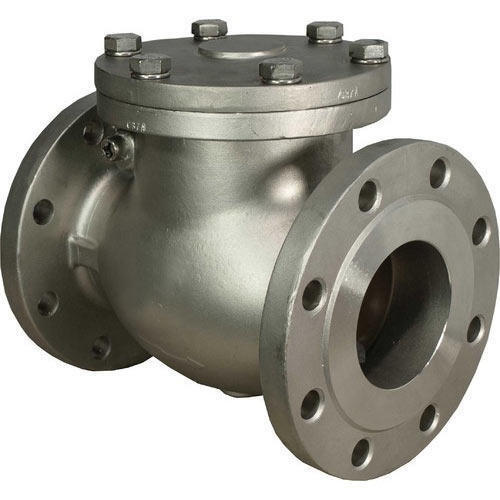

A Swing Check Valve offers a dependable, automatic, and self-acting fluid solution. It features an internal closure disc suspended from a top-mounted hinge pin. As forward fluid velocity enters the valve chamber, the kinetic energy of the stream pushes the disc upward into an open position, permitting unrestricted flow. The exact moment forward velocity drops or reverses, gravity paired with back-pressure swings the disc back onto its seatsafeguarding upstream equipment.

                      Uni-Directional Flow Path


        [ Forward Flow ]   / Swivel Disc   [ Downstream Assets ]
                             (Swings Upward)       (Pumps, Meters, Tanks)


        [ Reverse Flow ]   | Closed Disc   [ Back-Pressure Sealing ]
                             (Swings Down)

FlowBiz Export Private Limited is an elite global fluid-handling brand and a trusted Swing Check Valve Manufacturer in Gandhinagar, Gujarat, India. We specialize in precision engineering heavy-duty, low-pressure-drop non-return valves designed to deliver automated backflow prevention across global water infrastructure, gas transmission pipelines, and chemical utility networks.

Technical Specifications & Compliance Matrix

FlowBiz Swing Check Valves are cast and machined in strict compliance with international pressure containment, testing, and dimensional parameters.

Core Engineering Parameters

Metallurgy & Material Trim Selection

• Available Body Materials: Cast Iron (CI), Ductile Iron (DI), and Stainless Steel (SS).

• Internal Swing Disc Options: Heavy-duty Stainless Steel or Bronze Alloys.

• Elastomeric & Polymer Seals: EPDM, NBR (Buna-N), or PTFE (Teflon).

Critical Engineering Features & Process Benefits

1. Optimized Internal Geometry for Low Pressure Drop

The internal body cavity of a swing check valve is engineered to allow the disc to swing fully out of the primary flow path when open. This creation of an unobstructed, full-ported fluid channel minimizes localized fluid turbulence and resistance. Consequently, these valves maintain an exceptionally high flow coefficient (Cv) and exhibit a very low pressure drop (Pressure Difference), making them highly energy-efficient in continuous pumping loops.

2. Tailored Material Trims for Diverse Process Media

To ensure chemical compatibility and long service life, FlowBiz provides customizable sealing and structural trims. While robust cast iron and ductile iron bodies with EPDM or NBR seals are ideal for municipal water supply and wastewater pumping, our high-grade stainless steel bodies equipped with inert PTFE seals allow the valves to safely regulate aggressive media like nitric acid, acetic acid, and strong organic solvents.

3. Fusion Bonded Epoxy (FBE) Performance Coating

Industrial valve environments are highly susceptible to external corrosion from soil moisture, chemical vapors, or atmospheric humidity. FlowBiz applies a heavy-duty Fusion Bonded Epoxy coating or premium industrial paint to the interior and exterior of our iron valves. This protective shield seals the metal substrate against rust, scaling, and environmental weathering, resulting in a virtually maintenance-free, leakproof operation.

Strategic Industrial Application Scope

Our ASME/DIN-compliant swing check valves are utilized across a wide variety of clean-fluid processing and utility environments:

• Water Supply & Wastewater Treatment Plants: Handling large, predictable volumetric flows in wastewater processing and raw water pumping stations.

• Gas Transmission & Compression Networks: Installed along gas pipelines to manage distribution and block dangerous reverse gas migration that could lead to atmospheric leaks or fires.

• Petroleum Refineries & Petrochemical Facilities: Positioned inline to control water-based process flows, utilities, hydrocarbons, and cooling water.

• Power Generation Stations: Regulating low-pressure condensate return loops and auxiliary utility pipelines safely.

Engineering Note: Swing check valves excel with clean, low-viscosity fluid streams. They are not recommended for pipelines carrying heavy solid-particle-laden slurries or highly viscous media, which can cause debris to accumulate under the hinge mechanism and prevent the disc from seating properly.

Comprehensive Production & Supply Network

Operating from our technical hub in Gandhinagar, India, FlowBiz coordinates an expansive domestic and international supply framework. We serve as a leading manufacturer, supplier, exporter, and trader, providing prompt distribution to project sites across all major industrial manufacturing zones:

• Gujarat Hubs: Rajkot, Ahmedabad, Vapi, Valsad, Surat, Gandhidham, Kutch, Ankleshwer, Bharuch.

• Maharashtra Corridors: Mumbai, Nashik, Pune, Thane, Aurangabad, Satara, Sangli, Nagpur, Kolhapur.

• Central & Southern India Networks: Indore, Dewas, Bhopal, Chennai, Coimbatore, Salem, and global export markets.

Frequently Asked Questions (FAQ)

Q: Why must a swing check valve be limited to specific mounting orientations during installation?

A: Swing check valves rely heavily on gravity to pull the disc down into the seating area when forward flow drops to zero. Therefore, they must be installed in horizontal pipelines or in vertical pipelines with upward flow only. If installed in a vertical line with downward flow, gravity would permanently hold the disc open, allowing reverse fluid to bypass the seating boundary completely and rendering the valve useless as a non-return device.

Q: How do engineers select the correct seal material (EPDM, NBR, or PTFE) for their valve?

A: Selection is driven directly by your system's temperature profile and fluid chemistry:

• EPDM: Outstanding for utility water, heating-ventilation systems, and mild outdoor environments with moderate temperature limits.

• NBR (Buna-N): The industry standard for fuel lines, lubricating oils, petroleum fractions, and general water processing.

• PTFE (Teflon): The premium selection for aggressive chemicals, nitric/acetic acids, and elevated process temperatures where elastomers would swell or degrade.

Q: What exact quality parameters are verified during API 598 testing at FlowBiz?

A: Every single valve body undergoes a rigorous, multi-stage testing process prior to packaging. This includes a high-pressure hydrostatic shell test to confirm structural casting density, followed by low-pressure and high-pressure seat closure tests. These checks ensure the hinge, disc, and seal function seamlessly together, meeting stringent leak-tightness criteria and minimizing field downtime.

Q: What is the technical process for maintaining a swing check valve inline?

A: FlowBiz swing check valves are engineered for extended, low-maintenance operational life. If a seal eventually requires service due to routine wear, the valve features a top-mounted bolted bonnet design. Maintenance crews can isolate the line, remove the top bonnet nuts, and gain full internal access to the disc assembly, hinge pin, and sealing seats. This allows technicians to replace worn components inline without cutting the valve out of the pipeline framework.
