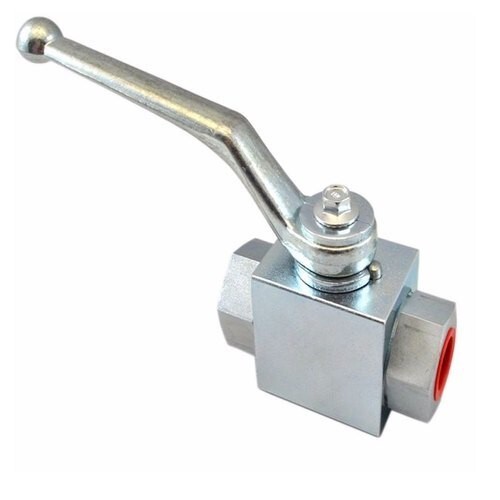

High-Pressure Hydraulic Ball Valves (Up to ANSI Class 2500) | FlowBiz Valves

FlowBiz Valves is a premier, engineering-driven manufacturer, supplier, and global exporter of heavy-duty High-Pressure Hydraulic Ball Valves in India. Operating from our key industrial and manufacturing infrastructure in Vadodara, Gujarat, we engineer this specialized series to anchor critical high-pressure grids and intense fluid-distribution networks.

The FlowBiz high-pressure series is based on advanced floating ball valve technology, structurally engineered for maximum endurance, pressure containment, and field reliability. Designed to withstand a massive working pressure of up to ANSI Class 2500 (414 bar / 6000 psi), these valves are necessary for severe fluid loops where standard industrial utility valves would suffer structural fatigue, body deformation, or catastrophic seal blowouts.

Technical Specifications & Engineering Framework

Our high-pressure hydraulic series is precision-machined from premium raw stock to satisfy rigid global pipeline criteria:

Strategic Design & Mechanical Advantages

1. Glandless Construction (Zero Manual Maintenance)

A major engineering advantage of the FlowBiz high-pressure hydraulic series is its glandless construction. Traditional valves utilize manual compression glands that require periodic field tightening and maintenance to stop packing weepage. Our glandless architecture utilizes advanced internal, self-adjusting sealing rings that stay energized under constant mechanical tension. This layout completely eliminates the need for routine manual readjustment of seals, dropping plant maintenance costs and preventing unexpected packing failures.

2. Dual-Sided Bi-Directional Floating Sealing Principle

The internal spherical ball is cradled between high-density, low-friction polymer seats on both the upstream and downstream sides. When the valve is closed, the high-pressure fluid forces the floating ball slightly downstream, pressing it firmly against the downstream seat. This dual-sided sealing principle achieves an absolute, bubble-tight shut-off in both flow directions, ensuring zero fluid migration across high-pressure gas, liquid, or hydraulic oil lines.

3. Forged Steel & Rolled Bar Custom "Sculpting"

Rather than relying on cast iron or poured cast steelwhich can harbor hidden sand holes or gas porositiesour high-pressure series is manufactured strictly from solid forged blocks or rolled bar stock. This structural density allows our Vadodara engineering department to "sculpt" the valve body to your customer-specific dimensions, specialty connections, or unique face-to-face standards in a very short production timeframe.

4. Full-Flow Passage & Fluid Efficiency

Featuring a true full-flow passage, the internal diameter of the flow orifice through the ball perfectly matches the inside diameter of the connected hydraulic piping. This ensures a completely straight-through path when fully open, keeping pressure drops (P) near zero and eliminating fluid turbulence. This profile is essential for high-velocity hydraulic machinery where throttling or fluid friction could generate excessive system heat.

Flexible Configurations & Material Selection

Premium Sealing Technology

To accommodate varying chemical properties and thermal environments, FlowBiz offers customizable seal and packing selections:

• Premium Virgin PTFE Seals: Deliver excellent chemical resistance and an incredibly low coefficient of friction for clean process fluids, gases, and utility water lines.

• High-Purity Graphite Packing: Integrated to provide dependable, leak-proof performance under extreme temperature fluctuations and severe-service industrial applications.

Versatile Pipeline Connectivity

Our high-pressure series easily adapts to any global facility pipeline standard:

• Threaded End Connections (BSP / NPT): Precision-cut threads that provide rapid, low-profile installation for smaller pipelines and compact hydraulic manifolds.

• Flanged End Connections: Fully compliant with ANSI and DIN flange specifications, preferred for larger or critical infrastructure lines that demand robust mechanical sealing, permanent structural alignment, and high vibration resistance.

Frequently Asked Questions (FAQs)

Q: Why is a Class 2500 rating critical for hydraulic ball valves?

A: Hydraulic systems utilize high-density fluids to transfer massive mechanical forces, frequently inducing extreme system pressure spikes and intense fluid velocities. A standard utility valve is only rated for low pressure boundaries and will crack or experience internal seal blowouts under heavy hydraulic loads. An ANSI Class 2500 rating certifies that the valve's wall thickness, metallurgy, and seating elements are engineered to safely contain continuous working pressures up to 6000 PSI (414 bar), providing absolute safety and peace of mind.

Q: How does the Vadodara facility ensure the structural integrity of these high-pressure valves?

A: Every individual valve body is manufactured using high-strength forged steel or rolled bar material paired with precision-machined SS316 balls. Before dispatch clearance, 100% of our production units undergo strict hydrostatic and pneumatic pressure validation according to API 598 standards. This rigorous testing verifies that the valve body achieves absolute containment and the internal seats deliver Class VI bubble-tight performance.

Q: What benefit does the lockable lever handle and ISO 5211 mounting pad provide?

A: * Lockable Lever Handle: Adds an essential layer of on-site security by allowing operators to padlock the valve in a fixed position, preventing accidental or unauthorized operation in public or high-security facilities.

• ISO 5211 Mounting Pad: Features standardized bolt patterns machined directly into the top works of the valve. This permits bracketless, direct-mount installation of pneumatic cylinders or electric actuators, simplifying automation upgrades and reducing field retrofitting costs.

Q: Why choose FlowBiz as your long-term high-pressure valve partner in Vadodara?

A: FlowBiz Valves balances rigorous metallurgical selection with strict compliance to global engineering codes like API 598. By verifying 100% of our production lines for zero leakage, utilizing glandless self-adjusting seals, and offering flexible custom "sculpting" for bulk or specialized facility designs, we deliver low-maintenance, long-lifespan equipment built to perform. Our deep technical support and transparent logistics make us a trusted partner for critical process installations across India and worldwide.
