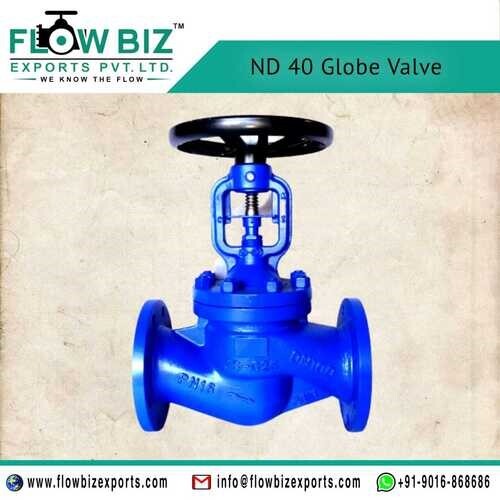

Globe Valve - ND 40 Manufacturer in Ahmedabad

About Globe Valve - ND 40 Manufacturer in Ahmedabad

Body MaterialWCB, CF8, CF8M

Usage/ApplicationIndustrial

End ConnectionFlanged End, Butt Weld End

Mfg. Std.BS 1873

ClassDin Std

OperationHand Wheel Operated

Size Range25mm To 150mm

FlowBiz make - DIN standard flanged globe valve; design of DIN standard Globe valves is limited to DN200 because of high media forces exerted by the fluid pressure on the disc surface area, which makes it very difficult to operate the valve for larger sizes. DIN standard Globe valves have the following advantages: DIN standard Globe valves have good regulating capability and positive shutoff. DIN standard globe valves have a faster operation than gate valves. DIN standard Globe valves are solid build and available in high-pressure classes (but limited in size). Description: DIN standard flanged globe valve as below : Size: " to 10" (DN15-200) Pressure: PN 16, PN 40.Material of construction: WCB, LCB, LCC, WC1, WC6, WC9, C12, C5, CF8, CF3, CF3M, CF8M, CF8C Design & Manufacture Std.: BS 1873, Face to Face Std.: DIN 3202, BS2080 F1, F2 Test Standard: ISO5208, BS 6755 DIN 3230 End Connection Std.: DIN2543-2548 Structure Type: S-Pattern Operated Way: Handwheel, Bevel Gear, Pneumatic, Electric operation
