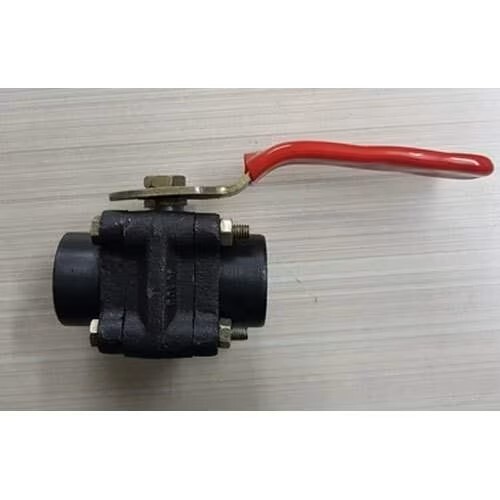

About Forged Steel Ball Valves

Heavy-Duty Forged Steel Ball Valves | FlowBiz Exports

FlowBiz Exports is a premier, engineering-driven manufacturer, supplier, and global exporter of high-integrity Forged Steel Ball Valves in India. Operating from our advanced heavy engineering and manufacturing hubs in Surat, Gujarat, we design and produce these rugged fluid-isolation systems. They are engineered specifically to withstand the intense mechanical stresses, high thermal cycles, and demanding pressure vectors common in critical modern processing pipelines.

Unlike traditional cast steel valves, which can suffer from internal grain boundaries, micro-porosities, or sand holes, our high-pressure series is manufactured strictly from solid forged blocks and rolled bar stock. This structural density ensures total pressure boundary containment, making these valves an essential choice for midstream oil pipelines, chemical processing lines, gas distribution manifolds, and power plant utility lines.

Technical Specifications & Compliance Matrix

Our forged steel series is precision-machined and rigorously tested to satisfy strict international pressure vessel and pipeline criteria:

Parameter	Technical Specification & Engineering Limits
Bore Profile	Full Bore Design (Maximized flow throughput with minimal pressure drop)
Size Matrix Range	Focused compact and intermediate sizes from 1/2" inch to 4" inches
Pressure Class Rating	Built to satisfy demanding parameters up to Class 800 specifications
Design Compliance	Engineered in strict accordance with API 6D and BS 5351 standards
Quality & Leak Testing	100% hydrostatically and pneumatically verified per API 598 protocols
Isolation Integrity	ANSI/FCI 70-2 Leakage Class VI (Absolute bubble-tight containment)
Thermal Operating Envelope	Flawless physical stabilization ranging from -20C to 200C
Sealing Trim Options	High-purity Virgin PTFE or high-temperature Graphite seals
Flange Standard Patterns	Globally compatible with ANSI, DIN, and IS dimensional frameworks

Strategic Design & Safety Engineering Features

1. High-Caliber Full Bore Structure

Featuring a true full bore design, the internal diameter of the flow path through the rotating ball perfectly matches the internal diameter of the connected pipeline. When the valve is turned to the fully open position, it creates a perfectly unobstructed path with zero internal pockets or step-downs. This design eliminates fluid turbulence, keeps pressure drops (P) near zero, and prevents internal wear from localized material scouring, maximizing overall plant operational efficiency.

2. Flexible Connectivity Matrix for New Construction & Retrofits

To ensure a direct, hassle-free integration into existing plant setups or newly engineered piping skids, FlowBiz valves can be ordered with multiple end-connection interfaces:

• Screwed / Threaded Ends (BSP/NPT): Preferred for low-profile instrument lines or systems requiring quick installation and simple component removal.

• Socket Weld (SW) Ends: Designed for high-vibration systems where permanently fused, seamless, zero-leak joint connections are mandatory.

• Flanged Ends (ANSI, DIN, IS): Machined to match international flange specifications, enabling straightforward bolting and quick removal during routine plant maintenance shutdowns.

3. Safety-Focused Seal Material Optimization

Achieving long-term valve durability requires matching the internal seal trim to your specific process parameters:

• PTFE (Teflon) Seals: Provide near-total chemical inertness, zero moisture absorption, and an incredibly low coefficient of friction. They are ideal for clean or corrosive process fluids and general-purpose utility systems at lower temperatures.

• Graphite Seals: Specially selected for high-temperature and high-pressure scenarios. Graphite performs exceptionally well under intense thermal spikes, providing enhanced durability and maintaining structural sealing integrity where soft polymers would fail.

4. Integrated Fire-Safe Field Upgrades

Crucial for chemical refineries, petrochemical plants, and oil distribution terminals handling flammable or volatile media. In the event of an unexpected facility fire that destroys the primary soft seats, our optional fire-safe design engages backup metallic sealing boundaries. This prevents hazardous external leakage or fluid migration, safeguarding your plant operations, downstream machinery, and site personnel.

Critical Application Scope

FlowBiz Forged Steel Ball Valves provide dependable, leak-proof isolation across a wide range of demanding heavy industries and standard utility systems, including:

• Hydrocarbon Logistics: Oil Refineries, Gas Processing Distribution, and Petrochemical Networks.

• Chemical Engineering: Chemical & Solvent Processing Industries and Fertilizer Plants.

• Power & Utility Facilities: Superheated Steam Lines, Power Plants, and Industrial Water Treatment loops.

Frequently Asked Questions (FAQs)

Q: Why is a forged steel body preferred over cast steel for Class 800 pipelines?

A: High-pressure pipelines create intense mechanical forces that exert continuous stress on a valve's pressure boundary. While cast steel can contain hidden internal micro-porosities, sand holes, or cooling cracks that risk structural failure, forged steel is compressed under extreme mechanical force. This refines the metal's grain structure, eliminates internal voids, and creates a highly uniform, dense metallurgy that safely contains continuous working pressures up to Class 800 without risking distortion or fracturing.

Q: How does the API 598 testing norm protect my facility from downtime?

A: API 598 is a strict international standard governing valve inspection and pressure testing. At our Surat facility, 100% of our forged steel production line undergoes rigorous hydrostatic shell testing and pneumatic seat verification. This process checks for structural density and validates that every valve achieves an absolute Class VI zero-leakage performance before shipping, ensuring field reliability and minimizing maintenance downtime.

Q: When should I opt for a socket weld end versus a flanged end connection?

A: The selection depends entirely on your pipeline maintenance schedule and pressure conditions. Socket weld connections permanently fuse the valve body to the line, creating a seamless joint that completely eliminates external joint leaks under high vibrationsideal for high-pressure gas or steam lines. Flanged connections are the industry standard for larger lines or processing lines that handle viscous media, as they allow technicians to unbolt the valve quickly for offline cleaning, maintenance, or inspection without cutting the pipe.

Q: Why choose FlowBiz as your trusted forged steel ball valve partner in Surat?

A: Operating from Surat, FlowBiz Exports balances high-precision engineering with strict compliance to global validation benchmarks like API 6D and BS 5351. By utilizing premium-grade, traceable forgings, providing flexible connection options from 1/2" to 4" inches, and applying specialized anti-corrosive exterior shields, we eliminate operational risks in the field. Our capacity to deliver robust, low-maintenance high-pressure fluid control equipment tailored to your exact specifications makes us a trusted supply chain partner across India and global export networks.
