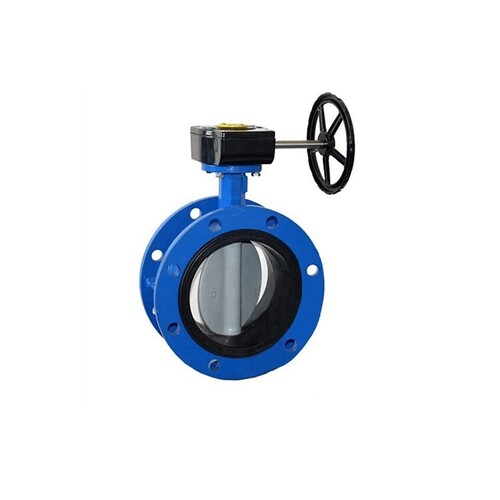

PN16 Cast Iron Double Flange Butterfly Valves FlowBiz Gandhidham

Welcome to FlowBiz, a premier industrial manufacturing standard for bulk fluid isolation, municipal waterworks infrastructure, and large-bore utility piping. Operating an advanced machining and testing facility in Gandhinagar/Gandhidham, Gujarat, we are a reputed manufacturer, exporter, supplier, and trader of high-integrity Cast Iron Double Flange Butterfly Valves.

Our robust engineering and supply network seamlessly fulfills high-volume municipal and industrial demands across major hubsincluding Gandhidham, Ahmedabad, Rajkot, Vapi, Surat, Mumbai, Pune, and Chennaibacked by dedicated logistics for domestic and international global export markets.

Technical Specifications & Structural Parameters

FlowBiz Double Flange Butterfly Valves are engineered strictly in accordance with international design standards like API 609 and BS 5155. Designed specifically for low-to-medium temperature liquid service, these valves feature a concentric rotary disc that provides a reliable bi-directional bubble-tight shut-off in water distribution grids up to 16 bar (232 psi).

Core Engineering Features & Design Advantages

1. Robust Double-Flanged Mechanical Anchoring

Unlike lightweight wafer valves that are merely squeezed between adjacent pipes, our Double Flange body profile incorporates fully independent bolted flange configurations on both sides of the valve housing. This design provides exceptional mechanical stability, absorbs pipeline thermal expansion stresses, and allows operators to safely unbolt downstream piping for routine modifications without dropping the valve out of the line.

2. Full-Boot EPDM Sealing Matrix

Our internal sealing system relies on a high-density, precision-molded EPDM rubber sleeve liner. This full-boot profile completely isolates the cast iron body housing from the process media, preventing internal corrosion. When the polished disc rotates 90, it compresses into the elastic rubber seat, establishing a zero-leakage, bubble-tight boundary.

3. Smooth, High-Ratio Manual Actuation

To ensure ease of maintenance and precise hands-on fluid regulation, each valve is fitted with an ergonomic, multi-turn gearbox or a notch-indexed hand lever. This manual drive provides excellent torque conversion, allowing operators to cycle large-bore water lines slowly and smoothly, which safely prevents the destructive pressure surges known as water hammer.

4. Severe-Duty Marine Packaging & Inspection

To protect your equipment, every valve shipped from our Gandhidham facility is enclosed in moisture-resistant, heavy-duty structural packaging. This specialized containment shields the external anti-corrosive coating and elastomeric liners from humidity, maritime salt-air oxidation, and transit vibration, retaining the product's full market value upon delivery.

Strategic Water Utility Applications

FlowBiz PN16 double flange butterfly valves are highly demanded across industrial water management networks:

• Municipal Water Distribution: Clear water pumping mains, urban water filtration plants, and balancing reservoirs.

• Agricultural Irrigation Systems: Large-scale canal water diversion, rural pumping grids, and agricultural sprinkler manifolds.

• Industrial Cooling Loops: Low-pressure utility cooling water lines, heat exchanger feeds, and condenser circuits.

• Wastewater Treatment Utilities: Secondary filtration water loops, raw water intake grids, and effluent treatment mains.

Frequently Asked Questions (FAQ)

Q: Why is a double-flanged butterfly valve preferred over a wafer valve for municipal mainlines?

A: Wafer valves offer zero structural support to a pipeline because they are held in place purely by adjacent pipe clamping pressure. A Double Flange Butterfly Valve bolts directly and securely to the pipeline flanges. This makes it an ideal choice for dead-end service and large-bore municipal mainlines, as it securely anchors the piping and allows downstream sections to be isolated and disassembled for maintenance safely.

Q: What is the significance of limiting the working temperature to 80C for this valve?

A: This thermal boundary is determined by the physical properties of the EPDM elastomer liner. EPDM is an exceptional material for handling domestic water, raw municipal supplies, and mild aeration lines because it provides excellent resilience and low wear. However, exposing EPDM to temperatures above 80C causes the polymer chain to degrade, compromising its sealing ability. For thermal fluids or steam, alternative metals or Viton liners must be specified.

Q: Can these cast iron water valves be upgraded to automated control loops?

A: Yes. While our standard manual configurations feature heavy-duty gearboxes optimized for dependable hands-on control, the valve body features a standardized ISO 5211 top-mounting pad. This allows our Gandhidham facility to quickly adapt the valve to accept high-torque Pneumatic Actuators for rapid remote throttling or Electric Actuators configured for centralized SCADA or PLC automation.

Q: How do you verify the leak-proof rating of each butterfly valve before it leaves the factory?

A: Every single valve undergoes strict non-destructive evaluation and hydrostatic testing in accordance with API 598 international standards. Our quality assurance team tests both the shell structure and the seat closure to ensure the valve maintains absolute zero-leakage performance up to its full PN16 pressure class rating, all backed by our official 1-Year Hassle-Free Warranty.

Q: How can procurement engineers and industrial traders secure direct factory pricing?

A: B2B buyers, municipal contractors, and traders can contact our dedicated corporate sales division in Gandhidham, India. Our engineering application desk provides full technical submittal support, including dimensional blueprints, flow coefficient (Cv) calculations, and flange drilling charts, ensuring you receive a highly competitive quote backed by factory-direct B2B pricing.

Are you optimizing an urban water filtration loop or upgrading an agricultural irrigation grid? Contact our Gandhidham sales and engineering office today to receive comprehensive technical sheets, dimensional blueprints, and an itemized commercial proposal.
