ISO 10434 / API 599 High-Performance PTFE-Lined Plug Valves FlowBiz Vadodara

Welcome to FlowBiz Export Private Limited, a certified global manufacturing authority for severe-service chemical containment, corrosive fluid handling, and zero-leakage utility isolation networks. Operating specialized high-purity investment casting foundries, state-of-the-art multi-axis CNC machining bays, and certified polymer fluoropolymer lining complexes in Vadodara and Ahmedabad, Gujarat, we stand as India's premier manufacturer, supplier, and global B2B exporter of premium PTFE-Lined Plug Valves.

Our lined quarter-turn plug valves are engineered specifically to handle highly corrosive, aggressive, and toxic chemical streams where standard metallic valves fail due to rapid chemical attack. From our primary production and technology hub in Vadodara, we support critical processing infrastructure across India's primary industrial zonesincluding Ahmedabad, Rajkot, Vapi, Valsad, Surat, Gandhidham, Kutch, Ankleshwar, Bharuch, Mumbai, Nashik, Pune, Thane, Chennai, Coimbatore, and Salembacked by fast-tracked global maritime logistics for direct project export worldwide.

Technical Specifications & Compliance Parameters

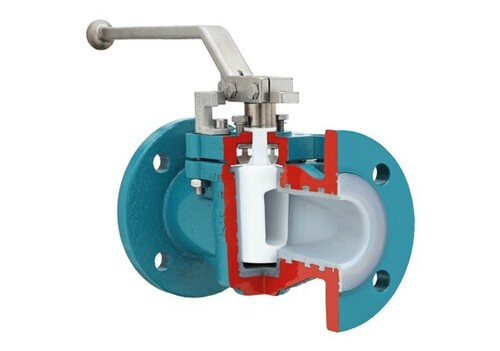

FlowBiz Lined Plug Valves feature an advanced quarter-turn architecture where a tapered or cylindrical plug rotates inside a fully encapsulated fluoropolymer cavity. The entire wetted envelope of the valve body, bonnet, and plug is completely covered with a thick, high-density layer of virgin PTFE, isolating the structural metal housing from the corrosive process media.

Core Engineering Features & Design Advantages

1. High-Density Ductile Iron Casing with Premium PTFE Lining

To deliver a combination of structural toughness and maximum chemical resistance, our valve bodies are cast from premium ductile iron. This robust outer shell provides the mechanical strength needed to handle high pipeline stresses and pressure surges. The interior is lined with a thick layer of virgin PTFE that forms an absolute barrier against chemical oxidation and pitting, extending the valve's service life in severe industrial environments.

2. High-Integrity Bubble-Tight Sealing Across Multi-Media Loops

Whether your pipeline handles corrosive chemical wastewater, processed oils, acidic chemical mixtures, or gases, our lined plug valves provide an effective sealing solution. The tapered plug fits precisely into the fully lined body cavity, distributing sealing tension evenly across the full 360-degree perimeter. This profile ensures an airtight, Class VI bubble-tight shut-off that prevents media migration or inline bypassing under fluctuating system pressures.

3. Cavity-Free Quarter-Turn Execution

Unlike standard gate or ball valves, which feature internal body recesses where stagnant chemicals, sediments, or mineral scale can collect and settle, our lined plug design is inherently cavity-free. The smooth, un-pocketed wetted path prevents particle trap risks and fluid entrapment, making the valve exceptionally reliable when handling highly pure process streams or sticky chemical fluids.

4. Adaptable Drive Options for Reliable Process Control

Our standard plug valves feature a high-leverage manual hand handle for straightforward, cost-effective manual operation. This independent manual setup allows for precise control during installation, maintenance, or plant emergencies without requiring complex electrical wiring grids. For automated system integration, the valve bonnet features an industry-standard interface that easily accepts enclosed worm gear units, pneumatic cylinders, or electric multi-turn actuators.

Strategic Severe-Service Industrial Applications

FlowBiz high-performance PTFE-lined plug valves are specified across primary processing lines:

• Aggressive Chemical Processing Plants: Safe containment, transit, and absolute isolation of concentrated hydrochloric acid (HCl), sulfuric acid (H2SO4) nitric acid, chlor-alkali chemicals, and strong organic solvents.

• Petrochemical Refineries & Hydrocarbon Loops: Corrosive sour water stripping loops, catalyst feed lines, acidic chemical batch blending lines, and refinery utility networks.

• Industrial Water Treatment & Desalination Facilities: High-capacity chemical dosing manifolds, demineralized water loops, acid regeneration headers, and chemical neutralization grids.

• Pharmaceutical & Fine Chemical Production: High-purity batch reactors, chemical transfer manifolds, clean utility lines, and processes requiring contamination-free fluid regulation.

Frequently Asked Questions (FAQ)

Q: Why should an engineer specify a PTFE-lined plug valve over a standard stainless steel ball valve for corrosive media?

A: In a standard ball valve, the ball rotates between dynamic polymer seat rings, leaving small internal body pockets where corrosive fluids can get trapped and slowly attack internal components. When handling highly aggressive chemicals or acids, this configuration can lead to localized crevice corrosion and sudden valve binding. A PTFE-Lined Plug Valve features a completely cavity-free interior where the plug is fully surrounded by a continuous fluoropolymer liner. This removes dead spaces, prevents sediment collection, and isolates all structural metal components from chemical exposure.

Q: What rigorous testing protocols are performed at the Vadodara factory to ensure lining integrity?

A: Because lined valves are specified for critical, high-consequence chemical loops, our quality control team performs multi-stage testing on every unit before dispatch. In addition to standard API 598 hydrostatic body shell and pneumatic seat tests, we subject 100% of our lined surfaces to high-voltage Electrostatic Spark Testing. This test uses a high-voltage probe to scan the entire PTFE surface, ensuring there are no microscopic pinholes, lining cracks, or thin spots that could allow chemicals to reach the underlying ductile iron body casing.

Q: What is the correct installation sequence for a flanged lined plug valve?

A: Installation requires careful mechanical alignment to prevent damaging the delicate fluoropolymer sealing faces. Technicians must position the flanged ends cleanly between matching pipeline flanges, ensuring that the faces are parallel and clean. Because the PTFE lining wraps around the flange face to serve as an integrated gasket, installing separate gaskets is typically not required unless specified by your piping design. High-tensile bolts must be tightened progressively in an alternating cross-star pattern using a torque wrench to ensure even clamping pressure across the joint.

Q: How does the choice of ductile iron as the base metal benefit long-term plant operations?

A: Standard gray iron is naturally brittle and vulnerable to fracturing from thermal shocks, pipeline expansion loads, or external impact. Ductile Iron incorporates a nodular graphite microstructure that gives the metal excellent yield strength, high impact absorption, and structural flexibility. This tough ductile casing safely contains the internal line pressures, while the PTFE liner handles chemical compatibility, providing a cost-effective, low-maintenance alternative to solid exotic alloys like Hastelloy or Titanium.

Q: How can project procurement managers and engineers coordinate factory-direct quotes?

A: Sourcing can be initiated by contacting our corporate sales division in Vadodara or Ahmedabad, Gujarat. Our application engineering division will guide you through a comprehensive technical consultationassessing your precise nominal sizing requirements (1/2" to 12"), target system operating pressures, explicit chemical media properties and concentrations, working temperature parameters, and preferred actuation drivesto deliver a certified product submittal data sheet and an itemized commercial proposal with factory-direct B2B pricing.

Are you optimizing a highly corrosive acid-distribution header or upgrading an industrial chemical wastewater treatment manifold? Contact our Vadodara sales and engineering office today to receive complete technical data sheets, certified structural blueprints, and an itemized commercial proposal.
