Large-Bore MS Fabricated Butterfly Valves FlowBiz Pune

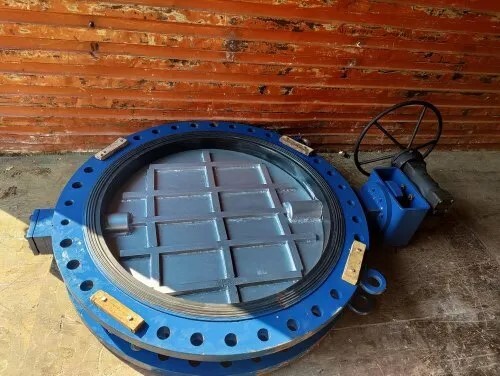

Welcome to FlowBiz, India's premier engineering authority for massive-diameter pipeline isolation, industrial water distribution, and heavy utility flow management. Operating an advanced heavy-fabrication and high-pressure testing facility in Pune, Maharashtra, we are a leading manufacturer, supplier, and global exporter of heavy-duty MS Fabricated Butterfly Valves (Large-Bore Series).

Our specialized industrial supply network seamlessly caters to major high-yield infrastructure projects, power stations, and processing plants across Indiaincluding Pune, Mumbai, Thane, Ahmedabad, Surat, Vapi, and Chennaialongside dedicated freight logistics for international global export markets.

Technical Specifications & Structural Parameters

FlowBiz Fabricated Butterfly Valves are designed to overcome the sizing limits of traditional cast valves. Built by precision-rolling and welding high-tensile structural Mild Steel/Carbon Steel plates, these valves provide full-flow downstream capacity and dependable quarter-turn (90) ON/OFF isolation inside massive water transmission lines and process headers.

Core Engineering Features & Design Advantages

1. High-Precision Structural Steel Fabrication

As pipeline diameters expand past 40 inches up to a massive 104 inches, traditional cast steel housings (WCB) become highly vulnerable to internal cooling defects, sand inclusions, and micro-porosity fractures. FlowBiz eliminates these risks by utilizing advanced structural plate fabrication. Precision welding ensures completely uniform wall thicknesses, superior structural elasticity, and absolute safety margins against heavy water hammer shocks.

2. Aerodynamic Low-Pressure-Drop Disc Geometry

To maintain maximum flow efficiency downstream, our large-bore discs are fabricated with high-strength geometric contours and integrated reinforcing ribs. This structural profile maximizes cross-sectional strength while minimizing fluid resistance when the valve is locked open, reducing turbulence and preventing parasitic energy losses across plant pumping systems.

3. Heavy-Duty Double Flange Mechanical Stability

While we offer wafer profiles for tight spaces, our standard large-bore series utilizes robust integrated flanged ends. A double-flanged body bolts independently and securely to matching pipeline flanges. This architecture acts as a rigid anchor inside the pipeline gallery, absorbing immense hydraulic pipeline shifting loads and simplifying inline gasket maintenance.

4. Advanced Rigorous Manufacturing & Testing Flow

Every fabricated valve undergoes an exhaustive manufacturing protocol. Following multi-pass welding, the raw structures undergo stress-relieving thermal cycles to eliminate residual welding stresses. The seating boundaries are precision-machined, assembled with high-density rubber seals, and subjected to rigorous hydrostatic shell and seat pressure testing to guarantee absolute inline sealing performance.

Strategic Cross-Industry Applications

FlowBiz large-bore fabricated butterfly valves are specified globally across heavy-volume liquid networks:

• Thermal & Hydro Power Plants: High-volume condenser cooling water lines, penstock isolation mains, and auxiliary cooling loops.

• Municipal Water Infrastructure: Bulk raw water intake pumping stations, urban water treatment plants, and cross-country distribution networks.

• Heavy Process Utilities: High-diameter cooling manifolds inside distilleries, paper & pulp mills, sugar refineries, and steel complexes.

• HVAC & Industrial Cooling Systems: Large-scale commercial district cooling loops, chiller plant headers, and maritime cooling grids.

Frequently Asked Questions (FAQ)

Q: Why is a fabricated steel valve preferred over a cast WCB valve for sizes above 40 inches?

A: Pouring giant castings requires massive molds that often suffer from internal shrinkage cavities and structural defects. Furthermore, cast valves are exceptionally brittle and heavy. Fabricated Steel Valves utilize rolled carbon steel plates that are structurally uniform, have higher impact resistance, weigh significantly less, and can be custom-engineered to match the exact face-to-face dimensions of your existing pipeline ducts.

Q: What is the recommended method for installing a 40-inch to 104-inch flanged butterfly valve?

A: Large-diameter valves must be installed with professional riggers and alignment tools. The valve body flanges must be aligned parallel with the pipeline flanges using high-tensile fasteners and compatible gaskets. Bolts must be torqued in a cross-star pattern to avoid uneven stress concentration. For lines exposed to extreme thermal expansion, the integration of a dismantling joint alongside the flanged valve is highly recommended to ease routine maintenance access.

Q: Can these fabricated butterfly valves be automated for remote control rooms?

A: Yes. While our large-bore valves are standardly outfitted with heavy-duty, high-ratio enclosed traveling-nut worm gearboxes for smooth manual handling, they feature standardized ISO top-mounting flanges. Our Pune facility regularly configures these units with high-torque Electric Actuators for remote SCADA integration, or heavy-duty Pneumatic / Hydraulic Actuators for instant automated fail-safe trip operations.

Q: How does the renewable elastomer seat ring design lower plant maintenance costs?

A: In high-volume water mains, silt, sand, and minerals will eventually cause micro-abrasions on any sealing surface. FlowBiz valves feature an adjustable and replaceable elastomer seat ring held securely by a stainless steel retaining ring. If the seal wears down after years of high-frequency operation, maintenance crews can replace the localized rubber ring inline without needing to discard the massive steel valve body.

Q: How can project engineering teams and contractors initiate a custom order from Pune?

A: Procurement managers and engineers can contact our technical sales desk in Pune, India. Because large-bore infrastructure projects require detailed alignment, our engineering team will guide you through a comprehensive technical consultationassessing your fluid velocity, pressure drop limitations, and layout dimensionsto deliver a certified blueprint and commercial proposal tailored precisely to your project's specifications.

Are you engineering a cross-country municipal water mainline or upgrading a massive cooling water manifold at a power plant? Contact our Pune sales and engineering office today to receive complete technical data sheets, structural drawings, and an itemized commercial proposal.
