Welcome to FlowBiz Export Private Limited, a certified manufacturing authority for severe slurry isolation, abrasive particulate management, and high-density process fluid control. Operating heavy-duty precision foundries, advanced metallurgy testing labs, and automated valve automation centers in Rajkot and Ahmedabad, Gujarat, we are India's premier manufacturer, supplier, and global B2B exporter of heavy-duty Knife Edge Gate Valves.

Our specialized bonnetless linear-isolation assets are engineered explicitly to overcome the inherent limitations of standard gate valves when handling thick, viscous, or abrasive media. From our manufacturing centers in Gujarat, we seamlessly fulfill critical infrastructure demands across India's primary industrial corridorsincluding Mumbai, Vapi, Valsad, Surat, Gandhidham, Kutch, Ankleshwar, Bharuch, Nashik, Pune, Thane, and Chennaibacked by fast-tracked global maritime logistics for direct project export worldwide.

Technical Specifications & Compliance Parameters

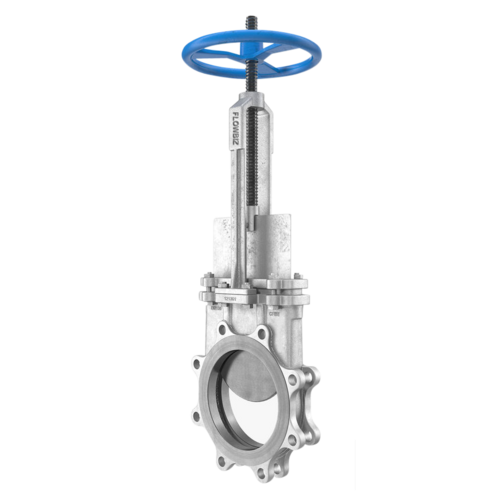

FlowBiz Knife Edge Gate Valves utilize a compact, space-saving wafer body profile. The valve raises and lowers a heavy-duty, planar metal plate with a precision-ground, beveled "knife" edge. This sharp bottom profile physically slices through dense sediment, packed solids, and thick fibers during closure, compressing against the seat to achieve an absolute, dependable shut-off.

Core Engineering Features & Design Advantages

1. Sharp Beveled Edge to Cut Through Sediments

Standard gate or ball valves feature internal body pockets and deep sealing recesses. When handling raw sewage, mineral tailings, or pulp stocks, solid particulates settle into these dead zones, solidifying and preventing the valve from closing completely. Our knife edge gate valve uses a bonnetless, narrow wafer structure featuring a sharp, beveled blade. The gate cuts through dense sediments and dry ash blocks, clearing its own path into the lower seat ring for a complete, leak-free shut-off.

2. Field-Replaceable Seats for Simplified Maintenance

To maximize plant uptime and extend the operational service life of the asset in highly abrasive pipelines, FlowBiz knife gate valves are engineered with replaceable internal seats. Rather than scrap or completely unbolt an entire valve assembly from the processing track when a seal wears down, maintenance technicians can quickly replace the seat ring directly on-site, lowering overall life-cycle maintenance costs.

3. Lightweight, Compact Wafer Structure

Because these valves are built using a narrow, space-saving wafer design, they feature an exceptionally short face-to-face dimension. This compact architecture makes knife gate valves significantly lighter than traditional full-body gate or globe valves. The reduced weight simplifies transport, lowers structural pipe-hanging stress, streamlines field installation, and cuts warehouse storage costs.

4. Advanced Wear and Surface Treatments

For severe-service loops involving abrasive mineral slimes, sand slurries, or high-velocity fly ash, standard stainless steel blades can score or experience rapid erosion. Upon customer request, FlowBiz applies specialized surface enhancement technologies to the gate blades:

• Hardfacing (Stellite Overlay): Provides a high-hardness boundary along the cutting edge to resist severe erosion.

• Nitriding & Hard Chrome-Plating: Creates an ultra-smooth, low-friction surface finish that reduces manual operating torque, prevents sticky pulp adhesion, and extends packing life.

Strategic Heavy-Duty B2B Industrial Applications

FlowBiz high-performance knife edge gate valves are specified across primary processing networks:

• Paper & Pulp Processing: Pulp preparation lines, pulp transfer manifolds, chemical bleaching loops, and stock tower isolation boundaries.

• Minerals, Mining, & Steel Foundries: Pneumatic dust conveying headers, abrasive iron ore slurries, beneficiation plant lines, and blast furnace utility loops.

• Thermal Power Generation Station Utilities: High-velocity fly ash handling, dry bottom ash systems, coal washing slurries, and cooling water circuits.

• Wastewater & Municipal Infrastructure: Sewage treatment facilities, thick sludge discharge lines, anaerobic digester isolation, and municipal lift stations.

• Cement & Chemical Industries: Slurry transfer lines, dry lime headers, hopper dump chutes, and bulk solids bagging skids.

Specialty Automation & Engineering Accessories

To adapt to complex Distributed Control Systems (DCS) and automated factory environments, FlowBiz provides a comprehensive range of control accessories:

• Pneumatic Actuators: Double-acting or single-acting spring return cylinders for instantaneous, automated isolation.

• Control Instrumentation: Proximity switches, limit switches, and weather-proof solenoid valves (5/2 or 3/2 way for position) feedback.

• Smart Positioners: Modulating electro-pneumatic positioners (4

  420 mA

• ) paired with a V-Orifice plate to turn the valve into a high-performance slurry throttling asset.

• Mechanical Armor Protection: Flow-deflection cones, stem protection tubes, retainer rings, and heavy mechanical protection guards.

Frequently Asked Questions (FAQ)

Q: Why are knife gate valves limited to lower pressure classes like PN10 and Class 150?

A: Standard high-pressure gate valves use a thick, heavy wedge housed inside a massive, fully enclosed pressure-retaining body shell. A Knife Gate Valve utilizes a thin, flat sliding plate inside a space-saving bonnetless wafer body profile. Because the blade is relatively thin and exposed to the atmosphere at the top packing gland, high line pressures could deflect or bend the plate, causing internal bypassing. Therefore, codes like MSS SP-81 optimize these valves for low-to-medium pressure utility lines (typically up to 150 PSI / 10 bar), prioritizing solids management over high-pressure containment.

Q: What is the operational difference between a unidirectional and a bidirectional knife gate valve?

A: Selection depends entirely on your line layout and process direction:

• Unidirectional Knife Gate Valves: Designed to handle pressure in one specific direction. The line pressure forces the gate blade forward against a single soft seat ring, creating a highly effective seal. If fluid flows backward, it can push the blade away from the seat, causing internal bypassing.

• Bidirectional Knife Gate Valves: Feature a specialized dual-lip elastomeric seat profile that seals effectively against the gate blade regardless of whether the fluid pressure originates from the upstream or downstream side, making them ideal for complex, shifting process lines.

Q: How does a deflection cone accessory extend the lifespan of a slurry valve?

A: When abrasive slurries or dry lime sediments rush through a partially open valve, the high-velocity particulate stream strikes the internal body walls and seat rings, causing localized erosion. FlowBiz offers an optional Deflection Cone fitted into the inlet bore. This hardened insert physically diverts the slurry stream away from the seating faces and directly into the center of the pipeline, preventing abrasive wear on the soft seal and extending the valve's operational life.

Q: Can a knife gate valve be used for throttling or flow regulation applications?

A: Knife gate valves are engineered primarily for isolation or full ON/OFF service. If a standard knife gate valve is held partially open to throttle a line, high-velocity abrasives will strike the exposed bottom edge of the blade, causing fluid turbulence and rapid wear on the seat. However, if your process requires slurry modulation, FlowBiz can equip the valve with a custom V-Orifice plate and an electro-pneumatic positioner, creating a specialized throttling path that shields the primary seal from erosive wear.

Q: How can project procurement managers and engineers coordinate a direct factory quote?

A: Sourcing can be initiated by contacting our corporate sales division in Rajkot or Ahmedabad, Gujarat. Our application engineering division will guide you through a comprehensive technical consultationassessing your precise nominal pipeline diameters (2"\ to 24"), exact media characteristics (slurry consistency, solids percentage, particle size), operational pressure/temperature metrics, and automation accessoriesto deliver a certified technical submittal data sheet and an itemized commercial proposal with factory-direct B2B pricing.

Are you optimizing an abrasive mineral tailings manifold or upgrading an automated wastewater digestion loop? Contact our sales and engineering office today to receive comprehensive technical sheets, certified dimensional blueprints, and an itemized commercial proposal.
