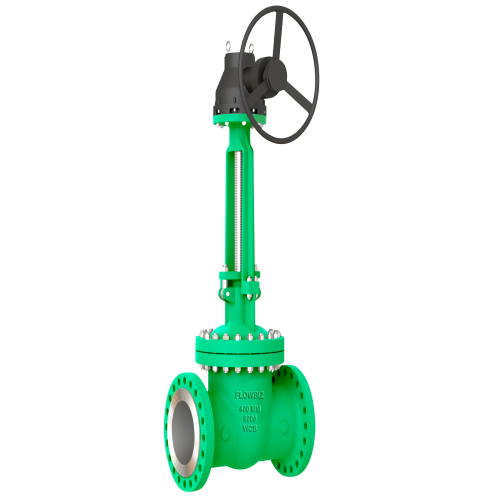

ASME B16.34 High-Pressure Cast Steel Gate Valves FlowBiz India

Welcome to FlowBiz Export Private Limited, a certified global engineering authority for high-pressure pipeline containment, severe thermal utility isolation, and high-consequence process line design. Operating high-capacity metallurgical foundries, advanced CNC horizontal boring centers, and automated hydrostatic compliance testing facilities in Ahmedabad and Rajkot, Gujarat, we are India's premier manufacturer, supplier, and global B2B exporter of heavy-duty ASME Cast Steel Gate Valves.

Our linear-motion isolation assets are explicitly engineered to provide an absolute, bubble-tight structural shut-off across high-pressure mainlines where fluid stagnation, line turbulence, and pressure drop must be minimized. We seamlessly support critical processing infrastructure across India's primary industrial corridorsincluding Ahmedabad, Rajkot, Vapi, Valsad, Surat, Gandhidham, Kutch, Ankleshwar, Bharuch, Mumbai, Pune, Thane, and Chennaibacked by fast-tracked global maritime logistics for direct project export worldwide.

Technical Specifications & Pressure-Temperature Grid

FlowBiz High-Pressure Gate Valves are designed to function exclusively in a fully open or fully closed position. When the wedge is drawn into the bonnet chamber, it completely retracts out of the fluid track, enabling a full-bore, unrestricted flow path that permits seamless pipeline pigging and eliminates inline pressure drops.

Core Engineering Features & Design Advantages

1. High-Tensile Cast Steel and Pressure Seal Configurations

To manage continuous structural loading up to 1500 PSI without deformation, our valve shells are cast from premium ASTM A216 WCB carbon steel or high-temperature Chrome-Moly alloys. For standard pressure loops, we utilize a rugged bolted bonnet (BB) design with die-formed graphite packings. For severe high-pressure, high-temperature power utility mainlines, we integrate a Pressure Seal Bonnet configuration. This advanced profile uses the internal line pressure to tighten the body-bonnet gasket seal, turning higher system pressures into a tighter leakproof boundary.

2. Standard and Compact Stem Configurations

FlowBiz manufactures two distinct stem configurations to adapt seamlessly to your plant's physical space:

• Rising Spindle Outside Screw & Yoke (OS\&Y): The definitive choice for visible line monitoring. The stem execution threads sit entirely outside the fluid track, shielding them from process media and providing operators with immediate visual confirmation of the valve's exact position.

• Non-Rising Stem (NRS) Profiles: Ideal for underground distribution lines, offshore skids, and confined refinery manifolds where vertical clearance is limited, as the stem rotates to cycle the wedge without expanding its physical height.

3. Integrated Equalizing Bypass Manifold Loops

When a large-bore mainline valve is fully closed under high differential pressures, the upstream pressure forces the wedge tightly into the downstream seat ring, creating a mechanical jam known as pressure-locking. This makes the valve exceptionally difficult to open. FlowBiz resolves this issue by engineering an integrated equalizing bypass valve assembly. Opening the small bypass line balances the differential pressure across the pipeline, lowering the operational torque and allowing a single field technician to spin the main handwheel easily.

4. Continuous Media Sweeping and Anti-Stagnation Layouts

Because the full-bore profile perfectly matches the pipeline's internal diameter, fluid moves in a smooth, linear vector. When the integrated bypass loop is kept open during temporary shut-downs, continuous low-volume fluid movement is maintained. This prevents material stagnation, limits residue buildup within the lower body pockets, and protects the internal metal-to-metal seating faces from localized erosion and pitting.

Strategic Severe-Service Industrial Applications

FlowBiz full-bore high-temperature cast steel gate valves are specified across primary industrial loops:

• Petrochemical Refining Mainlines: High-capacity crude oil transport, volatile hydrocarbon fraction headers, and high-pressure oil refinery blending lines.

• Thermal Power Generation Stations: Superheated steam lines, main steam headers, high-pressure boiler feed-water loops, and condensate cooling manifolds.

• Chemical Process Utilities: Direct containment and isolation of organic process fluids, utility air-gas lines, and high-pressure steam distribution headers.

• Infrastructure Utility Pipelines: Large-scale high-pressure industrial raw water intake pipelines, processing facilities, and bulk fuel storage transfer terminals.

Frequently Asked Questions (FAQ)

Q: Why can cast iron never be specified for systems running at 1500 PSI and 1500F?

A: Cast iron has a brittle crystalline structure with very low impact resistance and tensile strength. Under international pressure piping codes like ASME B16.34, cast iron is strictly limited to low-pressure, ambient-temperature utilities (typically maxing out at 250 PSI / 400F). Exposing cast iron to 1500 PSI or a thermal spike of 1500F would cause a sudden explosion or structural fracture. These high-consequence loops require high-tensile Cast Carbon Steel or Chrome-Moly Alloy Steel to safely manage the massive pressures and expansion forces.

Q: How does a pressure seal bonnet differ from a conventional bolted bonnet?

A: A standard bolted bonnet uses heavy steel bolts to compress a gasket between the body and the bonnet flange. As line pressure rises, it pushes upward on the bonnet, stretching the bolts and increasing the risk of a gasket blowout. A Pressure Seal Bonnet flips this mechanical principle. It utilizes a tapered internal wedge gasket held inside the body neck. As line pressure increases, it forces the bonnet upward into the gasket, compressing it tighter against the body wall. This ensures that higher pipeline pressures result in a more reliable, leakproof seal.

Q: Why are gate valves strictly used for isolation rather than throttling or flow regulation?

A: Gate valves are engineered exclusively for full-open or full-closed service. When a gate valve is held partially open to throttle fluid flow, the high-velocity fluid stream strikes the bottom edge of the wedge, creating intense turbulence, vibration, and cavitation. This rapid dynamic force scores the seating faces and bends the stem assembly, causing permanent internal leakage. For precise flow regulation or throttling applications, a FlowBiz Forged Steel Globe Valve must be specified.

Q: What is the main structural advantage of utilizing a dual-flanged connection style for gate valves?

A: A precision-machined raised face flanged connection matching ASME B16.5 provides a heavy-duty, uniform metal joint that bolts directly to companion pipeline flanges. This configuration distributes pipe loads evenly across the valve casing and simplifies life-cycle plant maintenance. Field technicians can easily unbolt and slide the heavy valve out of the line for inspection, cleaning, or seat re-facing without having to cut into the main pipeline.

Q: How can project procurement managers and engineers coordinate factory-direct quotes?

A: Sourcing can be initiated by contacting our corporate sales division in Gujarat, India. Our application engineering division will guide you through a comprehensive technical consultationassessing your precise nominal sizing requirements, preferred pipeline pressure class (Class 150/300/600), explicit fluid media properties, and temperature parametersto deliver a certified product submittal data sheet and an itemized commercial proposal with factory-direct B2B pricing.

Are you optimizing a high-pressure refinery manifold or upgrading a heavy-duty thermal steam header? Contact our sales and engineering office today to receive comprehensive technical sheets, certified structural blueprints, and an itemized commercial proposal.
