Industrial Sight Glass: Technical Specifications, Monitoring Solutions, and Engineering Standards

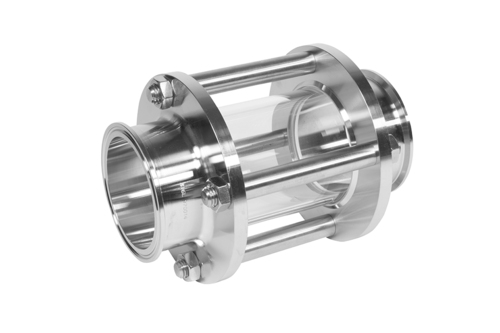

In complex fluid handling networks and continuous-process plants, real-time visual inspection is a crucial line of defense for quality control, fluid monitoring, and operational safety. A Sight Glass (or sight flow indicator) provides a highly durable, transparent window directly inline with pipelines, tanks, reactors, or boilers. This configuration allows field operators to safely observe flow velocity, fluid clarity, color, and phase changes without disrupting system pressure or introducing external atmospheric contaminants.

FlowBiz Exports Pvt. Ltd. is an industry-leading Sight Glass Manufacturer in Dholka, Gujarat, India. We specialize in engineering high-reliability sight flow indicators that cater to both domestic markets across India and major international industrial hubs.

Technical Specifications & Compliance Parameters

Every industrial sight glass bearing the FlowBiz Exports name is manufactured to meet the worlds most exacting quality, pressure, and dimensional frameworks.

Standard Engineering Matrix

Key Advantages of FlowBiz Sight Glasses

1. Engineered for High-Temperature Utilities

Industrial utility piping routinely experiences thermal fluctuations and high temperature loads. By incorporating specialized, thermal-shock-resistant borosilicate viewing glass coupled with high-strength SS 304 structural internals, FlowBiz sight glasses maintain deep structural integrity and clear, uncompromised visibility at temperatures climbing up to 200C.

2. Tailored Port Engineering & Seamless Integration

Every fluid infrastructure grid presents distinct hydraulic demands and spatial constraints. We provide complete engineering flexibility, allowing clients to customize port sizes and face-to-face dimensions. This ensures a drop-in fit with your existing pipeline infrastructure without forcing costly piping adjustments or creating excessive pressure drops.

3. Fail-Safe Manual Inspection

Unlike electronic sensors, digital flow meters, or remote transmitters that can drift, lose calibration, or fail during power outages, a manual sight glass provides a continuous, foolproof visual verification loop. Its mechanical simplicity translates to virtually zero maintenance requirements, zero electrical infrastructure costs, and immediate visual diagnostics for field teams.

Strategic Industrial Applications

Our heavy-duty SS 304 sight glasses are widely deployed across critical sectors where process transparency is paramount:

• Chemical Processing & Refineries: Visually checking asset mixing, chemical reactions, color integrity, and fluid movement in volatile environments.

• Power Generation & Boiler Units: Monitoring condensate return lines, flash tank levels, steam quality, and boiler feedwater clarity.

• Petrochemical & Gas Facilities: Providing safe visual tracking of hydrocarbon lines, lubricating oils, and process distillates.

• Nuclear Energy Facilities: Engineered under rigid quality control to meet the uncompromising safety and structural levels demanded by nuclear auxiliary loops.

• Water & Wastewater Treatment Plants: Placed downstream of filtration units or settling tanks to visually verify water clarity and immediately detect sediment carryover.

Commercial Policies & Streamlined Procurement

At FlowBiz Exports Pvt. Ltd., we combine technical excellence with client-focused commercial frameworks to guarantee a seamless acquisition experience:

• Favorable Sample Policy: We understand that critical industrial infrastructure requires rigorous evaluation. We supply product samples upon request, enabling your engineering and quality assurance teams to verify our metallurgy, machining precision, and seal integrity before committing to a bulk transaction.

• Recognized Quality Certifications: Every sight glass assembly undergoes pressure-integrity and material compliance testing. Our products are backed by standard industrial certifications, ensuring full adherence to international safety regulations and plant compliance codes.

• Optimized Logistics & Factory Pricing: Operating as a certified exporter and trader from Dholka, India, we manage streamlined transportation networks to deliver prompt domestic dispatch and secured international freight shipping at factory-direct prices.

Frequently Asked Questions (FAQ)

Q: What is the typical installation procedure for an industrial sight glass?

A: A sight glass should be securely mounted inline or onto a process vessel at a point that offers optimal visibility for operators. During installation, the unit must be precisely aligned with adjacent piping to prevent uneven torque or bending stress on the glass window. High-performance, media-compatible gaskets must be utilized, and the heavy-duty fasteners must be torqued in a cross-pattern to exact technical specifications, followed by a pressure leak test before commissioning.

Q: When is it necessary to install a sight glass in a process loop?

A: Sight glasses should be strategically placed wherever real-time visual verification adds a layer of safety, quality control, or diagnostic capability. Common installation points include:

• Immediately downstream of steam traps to monitor for steam blowing or condensate backing up.

• On blending, mixing, or reaction tank discharge lines to check for fluid aeration, clarity, or discoloration.

• Near critical pump discharges to verify fluid movement and detect trapped air pockets or cavitation bubbles.

Q: Why is SS 304 stainless steel selected for the sight glass disc and trim components?

A: Stainless Steel 304 provides an outstanding balance of mechanical strength, high-temperature endurance, and excellent resistance to atmospheric and chemical oxidation. This ensures that the structural frame and internal components holding the viewing window remain completely rigid, rust-proof, and free from scaling over decades of continuous service.

Q: How can international procurement teams request custom specifications from your Dholka facility?

A: Engineering firms, plant operators, and global distributors can contact our sales and technical department directly via email. Simply specify your required port size, connection style (flanged, screwed, or socket weld), process media characteristics, maximum pressure rating, and target temperature profile. Our engineering team reviews the criteria to provide a custom-tailored sight glass design backed by quick, factory-direct quotes.
