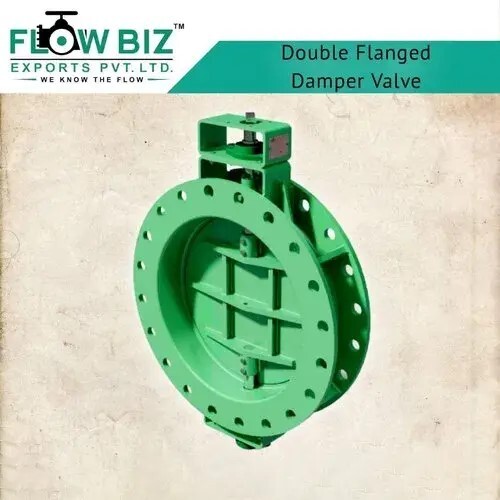

Fabricated Double-Flanged Damper Valves FlowBiz Pune

Welcome to FlowBiz Export Private Limited, a premier global engineering authority for high-volume air-gas balancing, thermal exhaust management, and large-bore industrial ducting automation. Operating heavy-duty steel fabrication bays, advanced welding grids, and automated testing cells in Pune, Maharashtra, we are India's leading manufacturer, supplier, and global B2B exporter of heavy-duty Double-Flanged Fabricated Damper Butterfly Valves.

Our industrial-grade damper valves are custom-engineered exclusively for low-pressure, high-temperature air, gas, and flue-gas utility routing where traditional tight-shutoff valves are structurally impractical. From our engineering headquarters in Pune, we seamlessly support heavy industrial plants across Indiaincluding Mumbai, Thane, Nashik, Nagpur, Ahmedabad, Surat, and Vapibacked by fast-tracked domestic logistics and international maritime export channels.

Technical Specifications & Engineering Grid

FlowBiz Fabricated Damper Valves utilize a robust structural steel plate body paired with a rigid, streamlined disc profile. Because these assets are built for high-temperature flue gas regulation rather than liquid containment, they implement a precision-machined Metal-to-Metal Seat configuration. This provides a Class IV leakage control profile while preventing internal component jamming during sudden thermal spikes.

Core Engineering Features & Design Advantages

1. Heavy-Wall Welded Steel Fabrication

Unlike standard cast iron valves that are prone to thermal cracking and structural failure under intense temperature loads, FlowBiz damper bodies are fully fabricated from premium IS 2062 Grade B Carbon Steel or high-alloy Stainless Steel plates. This custom welding approach allows process engineers to select the exact body metallurgy required to withstand aggressive gas flows, preventing internal oxidation and minimizing structural distortion under continuous thermal loads.

2. High-Temperature Metal-to-Metal Seating

Elastomeric or soft polymer seats degrade, melt, or char when exposed to process lines exceeding200

200C. Our double-flanged damper valves utilize a precision-machined metal-to-metal sealing boundary. This design ensures the disc rotates freely into the body seat ring without sticking or binding during rapid temperature shifts, providing reliable long-term modulation across extreme operating profiles up to 1200C.

3. Streamlined Low-Pressure Drop Profile

In high-volume air ventilation lines and exhaust flue ducting, maintaining static pressure profiles is a key system priority. The thin, contoured profile of our fabricated disc is engineered to sit directly in line with gas velocities. When fully opened, the valve creates minimal fluid drag and an exceptionally low pressure drop, which prevents energy loss and optimizes overall system efficiency.

4. Comprehensive Double-Flanged Pipeline Integration

To ensure structural alignment and ease of maintenance within complex industrial duct systems, each valve features robust, integrated double-flanged connection rings. This design allows the heavy asset to be bolted directly to companion duct flanges. It provides a highly stable, leak-resistant joint that simplifies installation, alignment, and removal during future plant shutdowns or line upgrades.

Strategic High-Temperature Industrial Applications

FlowBiz large-bore fabricated damper valves are specified across primary industrial gas and air loops:

• Power Plant Exhaust Utilities: Isolating and regulating superheated flue gas headers, boiler air preheater lines, and stack gas discharge ducts.

• Cement, Iron, & Steel Foundries: Hot blast furnace air feeds, kilns, waste heat recovery systems, and centralized dust collection bag filters.

• Chemical Processing & Incinerators: Directing hot process gases, air-gas balancing grids, and exhaust remediation headers.

• HVAC & Industrial Ventilation: High-capacity ventilation trunk lines, cleanroom air modulation, and large-scale industrial factory cooling loops.

Frequently Asked Questions (FAQ)

Q: Why do industrial fabricated damper valves feature a metal-to-metal seat instead of a soft rubber liner?

A: Soft rubber or polymer liners (such as EPDM or PTFE) provide excellent bubble-tight sealing in liquid lines, but they quickly melt, char, or wear away when exposed to industrial process streams running from 400C up to 1200C. A precision-ground Metal-to-Metal Seat is explicitly engineered to handle these intense thermal environments. While it allows a controlled, industry-standard margin of bypass (Class IV leakage), it guarantees the valve will continue to rotate and modulate gas flow without seizing or suffering thermal failure.

Q: What is the main structural advantage of selecting a fabricated valve body over a standard casting?

A: Cast iron and ductile iron valves are formed by pouring molten metal into sand molds, which can sometimes leave hidden internal shrinkage cavities, sand inclusions, or microscopic gas pockets. Under intense thermal cycling or mechanical stress, these casting defects can crack or fracture. A Fabricated Valve Body is constructed from solid, hot-rolled steel plates welded together. This process eliminates internal porosity, provides exceptional yield strength, and allows for precise customization of wall thicknesses to meet unique project demands.

Q: Why do large-bore damper valves focus on a sizing spectrum starting at 200 mm up to 2000 mm?

A: Small-bore lines below 200 mm (8") carry low gas volumes where compact, standard cast valves can efficiently manage the flow profile. However, heavy manufacturing facilities, power stations, and chemical refineries route massive volumes of hot air and flue gases through large-diameter trunk lines. Our specialized fabrication process is optimized to scale effectively from 200 mm all the way up to 2000 mm (80"), providing a rigid, structurally stable isolation asset for large-scale duct systems.

Q: How do engineers choose between manual worm gearboxes and automated actuation for damper valves?

A: Selection depends primarily on duct diameter, line pressure velocity, and your facility's control integration needs:

• Manual Levers & Worm Gearboxes: Excellent for balancing loops or hot exhaust stacks that only require infrequent adjustments during routine plant changeovers. Enclosed gearboxes provide operators with the high-torque mechanical leverage needed to turn large discs safely.

• Pneumatic or Electric Actuators: Specified when the damper valve must function as a dynamic control element within a automated DCS or SCADA loop, allowing for immediate, fine-tuned flow regulation from a central command office.

Q: How can project engineering and procurement teams in Pune coordinate a factory quote?

A: Sourcing can be initiated by contacting our corporate sales division in Pune, Maharashtra. Our application engineering division will guide you through a comprehensive technical consultationassessing your precise nominal duct diameters (200 mm to 2000 mm), target temperature thresholds (400C vs. 1200C), fluid media properties, and automated actuation specificationsto deliver a certified product submittal data sheet and an itemized commercial proposal with factory-direct B2B pricing.

Are you optimizing a high-temperature exhaust stack loop or upgrading a large-bore industrial air ventilation system? Contact our Pune sales and engineering office today to receive complete technical data sheets, certified dimensional blueprints, and an itemized commercial proposal.
