About double flange fabricated damper valve

Heavy-Duty Double-Flange Fabricated Damper Valves FlowBiz Kheda

Welcome to FlowBiz Export Private Limited, a certified manufacturing authority for high-temperature flue-gas isolation, large-bore airflow regulation, and heavy industrial duct exhaust management. Operating specialized heavy fabrication bays, multi-axis precision alignment lines, and dynamic aerodynamic torque verification cells in Kheda, Gujarat, we are India's premier manufacturer, supplier, and global B2B exporter of heavy-duty Double-Flange Fabricated Damper Valves.

Our specialized large-bore duct isolation assets are engineered specifically to regulate high-volume airflow, exhaust gases, and volatile combustion byproducts where tight, bubble-tight sealing is secondary to structural thermal survival. From our manufacturing headquarters in Kheda, we seamlessly support heavy power generation, chemical processing, and smelting infrastructure across major domestic industrial zonesincluding Ahmedabad, Rajkot, Vapi, Valsad, Surat, Gandhidham, Kutch, Ankleshwar, Bharuch, Mumbai, Pune, Thane, and Chennaibacked by direct maritime and overland freight logistics for rapid international project export.

Technical Specifications & Compliance Parameters

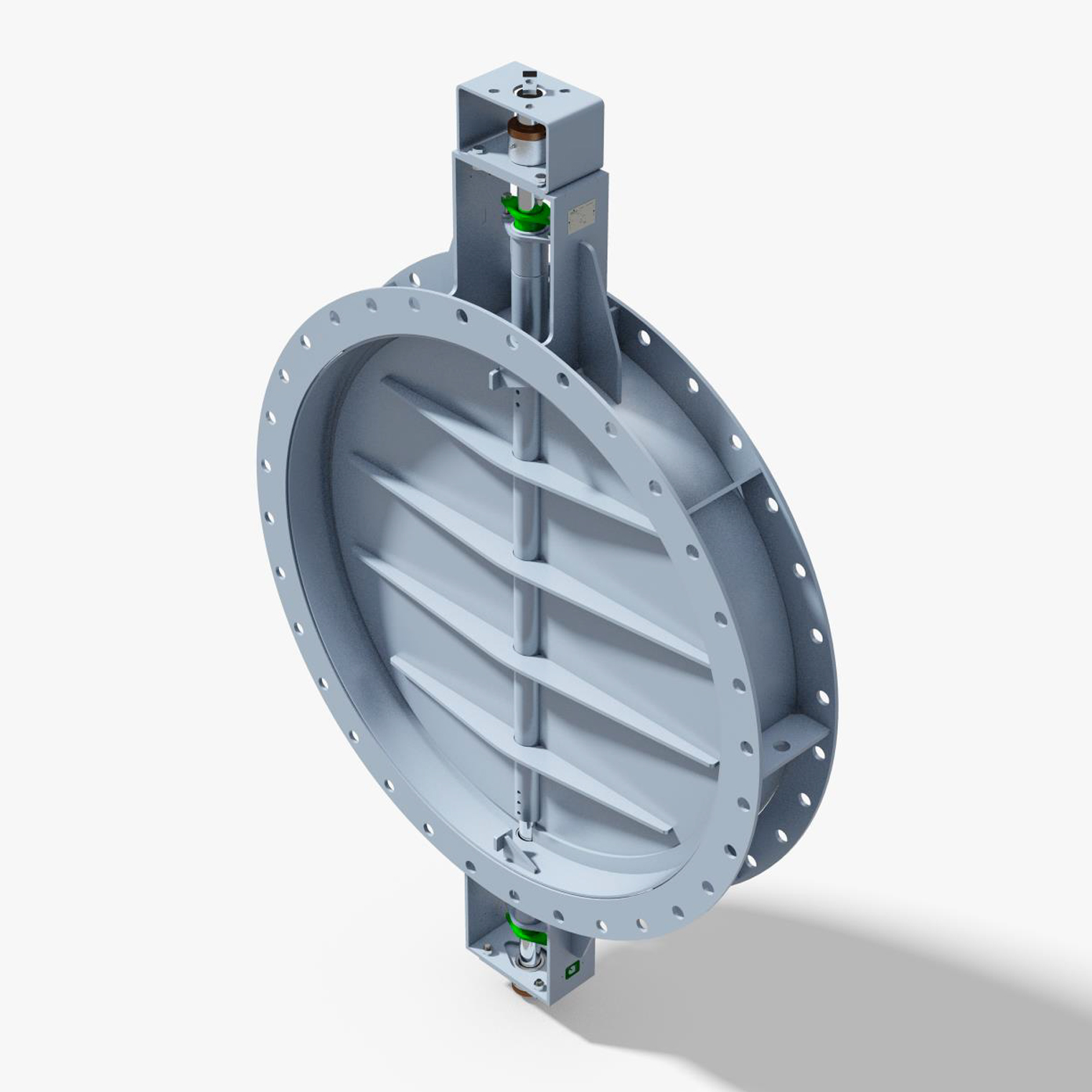

FlowBiz Fabricated Damper Valves operate via a lightweight, low-torque quarter-turn internal disc or louvred blade. Engineered specifically to interface with circular or custom-profile ventilation ductwork, these valves provide structural separation and high-velocity flow regulation across severe-service exhaust networks.

Engineering Parameter	Certified Product Specifications & Compliance Codes
Design Standards	Fabricated in accordance with ASME B16.34 and custom duct criteria
Testing Standards	Aerodynamically verified and seat-tested to proprietary B2B specifications
Sizing Envelope Array	Custom-engineered production array: Available across all nominal sizes
Pressure Class Ratings	Optimized for low-pressure, high-velocity exhaust and ventilation grids
Body & Disc Metallurgy	Structural Carbon Steel (ASTM A36 / IS 2062) or High-Grade Stainless Steel
Seat Configuration Matrix	Heavy-duty Metal-to-Metal clearance seat or high-temperature soft seal
End Connection Interface	Precision-Drilled Double Flange / Inter-Duct Connecting Ends
Warranty & Protection	Shipped with a One-Year Structural Performance Warranty
Operational Drive Topworks	Manual Hand Lever / Enclosed Worm Gearbox / Pneumatic Cylinder

Core Engineering Features & Design Advantages

1. Robust Fabricated Steel Construction for Structural Longevity

Unlike standard utility valves that rely on heavy, brittle cast bodies that can experience thermal cracking when exposed to hot exhaust streams, FlowBiz damper valves are constructed from thick, premium structural carbon steel or high-grade stainless steel. This custom fabrication method provides exceptional mechanical strength, handles continuous thermal expansion, and guarantees physical durability within harsh, high-velocity exhaust environments.

2. High-Efficiency Flue-Gas Isolation Profile

Our double-flange and wafer dampers are specifically designed to serve as primary isolating dampers for large-scale flue-gas scrubbers and stack exhausts. In these high-temperature environments, achieving an absolute bubble-tight seal is unnecessary; instead, the system requires a lightweight, simple disc that can be quickly executed to isolate or redirect massive volumes of gas without binding or warping, keeping plant operational costs low.

3. Simplified 90-Degree Drive Topworks

Executing a FlowBiz butterfly damper is inherently efficient, requiring only a straightforward 90-degree quarter-turn rotation to move from a completely open position to a closed state. This simple execution path reduces wear on the internal shaft and allows the valve to be operated using low-profile hand levers, enclosed manual gearboxes, or automated pneumatic cylinders, ensuring quick execution when regulating plant air volumes.

4. Advanced Resistance to Thermal Torque Shifting

In heavy process industries, severe internal chemical corrosion and extreme temperature spikes can dramatically alter a valve's operating variables over time. FlowBiz addresses this design challenge by engineering our shafts and drive assemblies with extra structural clearance. This prevents internal binding, controls thermal torque shifts caused by heat cycling, and maintains predictable manual control throughout the valve's service life.

Strategic High-Temperature Industrial Applications

FlowBiz double-flange fabricated damper valves are specified across primary airflow and exhaust lines:

• Flue-Gas Desulfurization (FGD) Scrubber Ducts: Regulating and isolating volatile sulfurous exhausts, hot flue-gas byproducts, and chimney stack emissions.

• Industrial HVAC & Ventilation Systems: Controlling air intake, exhaust routing, and ventilation balancing inside large commercial spaces and manufacturing facilities.

• Thermal Power Generation Plants: Managing pre-heated boiler airflow, heavy fly-ash exhaust ducts, and heat recovery steam generator (HRSG) bypass tracks.

• Smelting, Cement, & Steel Furnaces: Directing high-temperature blast furnace exhaust, dry dust collection networks, and cement kiln pre-heater lines.

Frequently Asked Questions (FAQ)

Q: Why are fabricated damper valves utilized rather than standard high-pressure butterfly valves for flue gases?

A: Standard high-pressure butterfly valves utilize heavy, thick cast bodies and tight elastomeric or laminated seats designed to contain pressurized fluids. In a massive flue-gas duct, using a standard high-pressure valve would add immense, unnecessary weight to the ductwork and dramatically increase equipment costs. Furthermore, the high temperatures of raw exhaust gas would rapidly melt or destroy standard rubber or polymer seats. A Fabricated Damper Valve features a lightweight, open metal-to-metal clearance seat profile that easily withstands high heat and handles high volumes of low-pressure gas cost-effectively.

Q: What is the primary operational advantage of a double-flange end connection on duct dampers?

A: A precision-fabricated double-flange end connection allows the damper valve to be bolted directly between matching ductwork flanges. This design provides exceptional structural alignment, distributes mechanical loads evenly across the connection points, and simplifies maintenance routines. If a valve requires inspection or service, maintenance teams can unbolt the damper from the duct flanges and lift it clear without disturbing or dismantling adjacent sections of the ventilation line.

Q: How do oval-shaped or custom-profile butterfly dampers function in process work?

A: In many advanced industrial plants, smelting complexes, and chemical facilities, high-volume exhaust lines are built using rectangular, square, or oval-shaped duct networks to maximize space and match building designs. A standard round cast valve cannot interface with these systems. FlowBiz solves this issue by custom-fabricating dampers to match oval or multi-faceted structural dimensions, enabling seamless integration into complex ventilation layouts while maintaining uniform airflow control.

Q: What support benefits does FlowBiz offer B2B procurement managers and project planners?

A: To ensure complete financial and engineering confidence across major capital infrastructure projects, FlowBiz provides a comprehensive one-year structural performance warranty on all fabricated damper valves. Additionally, our Kheda manufacturing complex provides dedicated technical support, comprehensive material documentation, and streamlined domestic and international shipping schedules, helping project planners avoid costly installation delays.

Q: How can project procurement managers and engineers in Kheda coordinate factory quotes?

A: Sourcing can be initiated by contacting our corporate sales and engineering office in Kheda, Gujarat. Our application engineering division will guide you through a comprehensive technical consultationassessing your explicit duct dimensions, target system temperatures, velocity criteria, preferred metallurgy (Carbon Steel vs. Stainless Steel), and required actuation topworksto deliver a certified product submittal data sheet and an itemized commercial proposal with factory-direct B2B pricing.

Are you optimizing a high-temperature scrubber exhaust system or upgrading a large-scale industrial ventilation manifold? Contact our Kheda sales and engineering office today to receive complete technical data sheets, certified structural blueprints, and an itemized commercial proposal.
