Welcome to FlowBiz Export Private Limited, a certified manufacturing authority for heavy-duty gas diversion, high-temperature exhaust routing, and flue-gas isolation systems. Operating advanced metallurgical fabrication yards and thermal compliance laboratories, we are India's premier manufacturer, supplier, and global exporter of industrial Double Flange Damper Valves (also known as Butterfly Damper Valves).

With primary engineering, manufacturing, and logistics hubs serving Rajkot, Gujarat and Ahmedabad, Gujarat, our supply network seamlessly fulfills heavy utility demands across all primary industrial corridorsincluding Vapi, Valsad, Surat, Gandhidham, Kutch, Ankleshwar, Bharuch, Mumbai, Nashik, Pune, and Chennaialongside fast-tracked international maritime freight routes for global export.

Technical Specifications & Thermal Boundaries

FlowBiz Damper Valves are lightweight, high-capacity, 90 quarter-turn assets engineered explicitly for low-pressure air duct networks, ventilation systems, and exhaust lines. Rather than providing a bubble-tight hydraulic seal, these valves are optimized to handle massive volumes of hot air, flue gases, and industrial fumes while introducing minimal parasitic pressure drop.

Core Engineering Features & Design Advantages

1. Advanced High-Temperature Metallurgy

To withstand extreme thermal profiles up to 1200C without experiencing creep, thermal cracking, or scaling, FlowBiz rejects standard cast iron for this valve class. We specialize in fabricating damper disks and bodies from high-grade structural alloys:

• Mild Steel (MS): Ideal for ambient air systems and low-temperature industrial ventilation.

• Stainless Steel (SS304/SS316): Excellent for chemical vapors, humid exhaust streams, and mid-range heat loops.

• Refractory Stainless Steel (SS310) & Duplex: The gold standard for thermal processing, providing elite resistance to oxidation and mechanical distortion up to 1200C

• .

2. High-Efficiency 90 Quarter-Turn Actuation

The internal regulating disk requires only a simple 90 rotation from full open to full close. This straightforward mechanical travel reduces the complexity of the topworks. The valve can be operated manually via an ergonomic lever or a traveling-nut gearbox, and it easily adapts to pneumatic or electrical actuators for automated process automation.

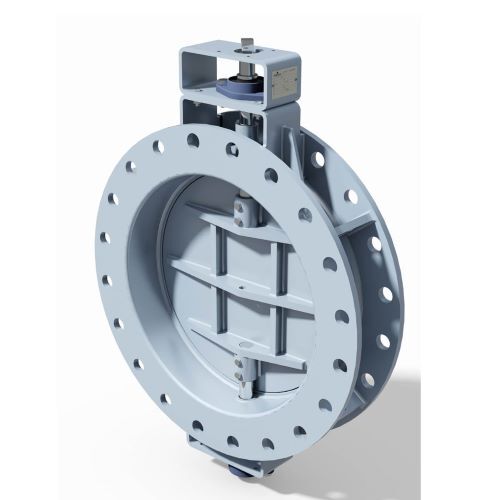

3. Double Flange Casing and Structural Integrity

Featuring an integrated double-flange body profile, our damper valves install securely between matching duct flanges. This design provides superior structural rigidity along the pipe axis, helping the valve withstand thermal expansion and contraction cycles without causing casing distortion or inline component binding.

4. Optimized for Gas Scrubbing & Ventilation Loops

Because gas and exhaust handling can accommodate minor fractional bypass rates, our damper valves focus entirely on structural longevity and low cost. They are the industry's preferred choice for isolating sections of flue-gas scrubbers, industrial baghouse filters, and large-scale ventilation ducts where bubble-tight sealing is not critical.

Strategic High-Temperature & Exhaust Applications

FlowBiz double flange damper valves are specified across heavy-duty utility and emissions infrastructure:

• Flue-Gas Desulfurization (FGD): Diverting and isolating gas streams entering corrosive chemical scrubbers and smoke stacks.

• Industrial Ventilation & HVAC Ducts: Controlling ambient and heated air routing inside factories, foundries, and processing plants.

• Furnace & Kiln Exhaust Loops: Managing high-temperature combustion discharge lines, incinerator stacks, and heat recovery units.

• Power & Co-Generation Stations: Regulating hot air intake feeds, boiler exhaust paths, and auxiliary gas bypass loops.

Frequently Asked Questions (FAQ)

Q: Why is standard cast iron strictly prohibited for damper valves operating at extreme temperatures up to 1200C?

A: Standard grey cast iron is highly susceptible to thermal shocking and carbon microstructure breakdown at elevated temperatures. Above 400C, cast iron suffers from rapid internal oxidation and volumetric growth, making it incredibly brittle and prone to structural failure. For severe thermal applications up to 1200C, FlowBiz exclusively utilizes specialized high-alloy steels like ASTM A240 Grade 310 Stainless Steel, which contains high levels of chromium and nickel to resist oxidation and maintain high mechanical strength at extreme temperatures.

Q: What is the permissible seat leakage rate for a butterfly damper valve compared to a standard butterfly valve?

A: Standard process butterfly valves are engineered for liquid containment and must achieve a bubble-tight, zero-leakage shut-off under API 598 testing parameters. Damper Valves, however, are classified as gas-routing devices. Because they handle high-volume fumes and must withstand immense thermal expansion without binding or jamming, they are built with minor internal clearances. A standard clearance-fit damper typically permits a localized gas bypass rate of approximately 0.5% to 2% of the total flow when fully closed, which is perfectly acceptable for ventilation and exhaust loops.

Q: How can an operator automate a FlowBiz large-bore damper valve for automatic duct routing?

A: Our damper valves are designed with standardized topworks platforms that easily accept automation upgrades. For automated thermal systems or automated emergency isolation, the manual lever can be removed to mount a double-acting Pneumatic Rotary Actuator or an Electric Actuator. This enables seamless connection to your central plant PLC or SCADA system for immediate, remote response times.

Q: Why is a white surface coating applied to the exterior of the cast or fabricated body?

A: Large-bore damper valves are frequently installed in dark, overhead duct networks, deep utility basements, or outdoor roofing systems. FlowBiz finishes each valve with a high-visibility, heat-resistant industrial white protective coating. This coating serves two engineering functions: it shields the external metal against deep atmospheric corrosion and weathering, and it allows plant operators to quickly identify the valve position and assess mechanical structural integrity from a distance.

Q: How can project engineering and procurement teams in Rajkot or Ahmedabad coordinate a bulk quote?

A: Sourcing can be initiated by contacting our corporate sales divisions in Rajkot or Ahmedabad, India. Our application engineering division will guide you through a comprehensive technical consultationassessing your precise duct dimensions (8 to 80), maximum line temperatures, chemical properties of the exhaust gas, and pressure requirementsto deliver a certified product submittal sheet and an itemized commercial proposal with factory-direct B2B pricing.

Are you designing a flue-gas scrubber isolation manifold or upgrading a high-temperature furnace exhaust loop? Contact our sales office today to receive complete technical data sheets, certified structural blueprints, and an itemized commercial proposal.
