Large-Bore Double Flange Damper Butterfly Valves FlowBiz Ahmedabad

Welcome to FlowBiz, a premier engineering destination for high-volume air management, exhaust ventilation, and industrial flue gas isolation technology. Operating from our advanced manufacturing hub in Ahmedabad, Gujarat, we are a leading manufacturer, supplier, and global exporter of heavy-duty Double Flange Damper Butterfly Valves.

Our specialized engineering division designs bulk fluid and gas control systems that serve critical HVAC, power, and exhaust networks across Indiaincluding Ahmedabad, Rajkot, Vapi, Surat, Mumbai, Pune, and Chennaibacked by streamlined international freight logistics for global export markets.

Technical Specifications & Duct Integration Parameters

FlowBiz Damper Butterfly Valves are light, cost-effective, linear-to-rotational assets designed explicitly for low-pressure air and gas regulation. Utilizing a quarter-turn (90) rotation, the internal circular disc swings open or closed within the duct path, offering rapid actuation and minimal face-to-face spatial footprints.

Core Engineering Features & Design Advantages

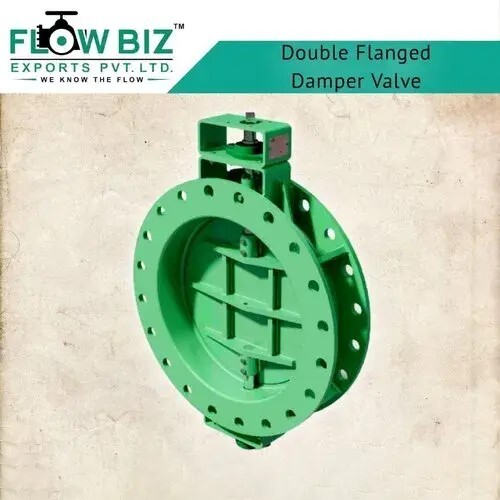

1. Streamlined Double-Flanged Mechanical Rigidity

Unlike lightweight wafer dampers that are clamped between existing ducts, our Double Flange design incorporates independent bolted flange configurations on both sides of the valve body shell. This architecture ensures exceptional structural stability, absorbs pipeline thermal expansion stresses, and simplifies routine inline maintenance or downstream duct disassembly.

2. High-Efficiency, Low-Torque Actuation

Because these valves are engineered for low-pressure gas loops, the internal disc experiences significantly lower seating friction than hydraulic process valves. This yields a remarkably low operating torque profile. As a result, facility managers can utilize smaller, highly economical manual gearboxes or compact automated actuators, reducing overall capital investment.

3. Rapid Airflow Optimization & Reduced Head Loss

The aerodynamic profiling of our large-bore circular discs minimizes path turbulence when the valve is in the fully open position. This layout yields an improved pressure drop (P), prevents systemic energy losses across your industrial fan loops, and increases overall air-handling efficiency.

4. Flexible Actuation Adaptability:

• Manual Control: Outfitted with notch-indexed hand levers or heavy-duty enclosed worm gearboxes for installations requiring infrequent structural adjustments.

• Automated Actuation: Configured with ISO 5211 top-mounting pads to seamlessly accept high-speed Pneumatic Actuators for instant modulation, or Electric Actuators linked to centralized plant BMS/SCADA infrastructure.

Strategic Air Handling & Ventilation Applications

FlowBiz double flange damper valves are specified globally across high-volume gas, air, and exhaust environments:

• Industrial HVAC Systems: Large-scale commercial ventilation loops, fresh air intake manifolds, and climate control zones.

• Exhaust Gas Management: Directing boiler flue gases, industrial furnace exhaust, incinerator stacks, and hot air recovery loops.

• Process Industries: Managing low-pressure air distribution lines in chemical, cement, steel, and textile manufacturing plants.

• Dust Extraction Networks: Regulating ventilation airflows inside heavy filtration systems, cyclones, and baghouses.

Frequently Asked Questions (FAQ)

Q: What is the primary difference between a standard process butterfly valve and a damper butterfly valve?

A: A standard process butterfly valve is engineered to handle pressurized liquids, requiring thick elastomeric or metal seats to achieve a 100% bubble-tight hydraulic seal. A Damper Butterfly Valve is custom-built for high-volume, low-pressure air and gas ducts. It prioritizes lightweight construction, low operational torque, and fast cycling over absolute zero-leakage hydraulic containment, often employing a clearance fit disc optimized for high-temperature gas flows.

Q: Why is a double-flanged end connection preferred over a wafer design for large-bore ducts?

A: As duct diameters scale from 8 inches up to a massive 80 inches, the weight of the system and the potential for pipeline warping increase exponentially. A wafer valve offers zero structural support. A double-flanged valve bolts directly and securely to the adjacent duct flanges on both sides, acting as a rigid structural anchor that minimizes localized joint leakage and simplifies pipeline maintenance.

Q: When should a plant engineer specify a pneumatic actuator over manual gearbox operation?

A: Manual operation via a hand lever or worm gearbox is ideal for balancing lines where flow modifications are done infrequently during seasonal changes or routine setups. However, if your facility requires continuous flow modulation, safety-interlock emergency isolation, or remote operation from a centralized control room, an automated pneumatic or electric actuator is required.

Q: How do your Ahmedabad manufacturing facilities handle quality assurance for global exports?

A: As an established, certified exporter, FlowBiz enforces strict quality controls across our entire casting, machining, and assembly phases. Every damper valve undergoes exhaustive dimensional verification, shell structural testing, and actuation torque mapping. For international shipments, our logistics team coordinates sea and air freight packaging inside reinforced sea-worthy wooden crates to guarantee zero transit oxidation.

Q: How can project managers and procurement officers secure direct factory quotes?

A: B2B buyers and HVAC engineers can contact our Ahmedabad corporate sales desk directly through our web portal or official phone lines. Our technical application division will assist you with proper sizing selection (200 mm to 2000 mm), metallurgy optimization for hot gas compatibility, and actuator integration, providing comprehensive quotes backed by competitive factory-direct pricing.

Are you designing a large-scale industrial ventilation manifold or upgrading a hot exhaust flue gas line? Contact our Ahmedabad sales and engineering division today to receive complete technical data sheets, certified dimensional blueprints, and an itemized commercial proposal.
