FlowBiz High-Performance Double Eccentric Butterfly Valves High-Integrity Fluid Systems

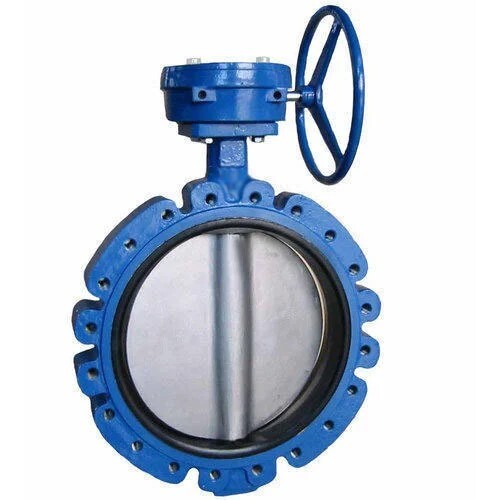

Welcome to the engineering authority for high-performance fluid isolation, bubble-tight zero-leakage control, and heavy-duty pipeline throttling. Operating advanced multi-axis CNC horizontal boring mills, precision elliptical seat-grinding centers, and certified hydro-pneumatic pressure validation corridors, FlowBiz manufactures premium-grade Double Eccentric Butterfly Valves (High-Performance Butterfly Valves).

Engineered to solve the premature seat wear, high operating torque, and localized structural friction common to standard concentric butterfly valves, our double offset line features a dynamically contoured disc that acts like a cam. Spanning a robust size range from 2 inches to 48 inches (65mm to 1200mm), these high-performance valves handle severe industrial throttling and high-pressure isolation loops across India's premier processing networks.

Technical Specifications & Compliance Parameters

Every FlowBiz production lot is precision-machined and subjected to 100% rigorous high-pressure hydrostatic testing, pneumatic seat torque validation, and micro-dimensional tolerance audits to guarantee total compliance with global technical specifications.

Kinematics & Double-Offset Frictionless Sealing Mechanics

The defining asset of the FlowBiz double eccentric (double offset) layout is its dual geometric axis displacement, which removes the disc from seat contact during quarter-turn travel:

• Offset 1 (Shaft Behind Sealing Plane): The centerline of the rotating stem is positioned behind the sealing plane of the valve seat. This allows the disc to maintain a continuous, uniform 360 degree compression seal around the entire perimeter of the seat ring when closed.

• Offset 2 (Shaft Displaced from Pipe Centerline): The centerline of the shaft is displaced to one side of the pipeline's central axis. Combined with Offset 1, this geometry creates a cam-like action as the valve opens. The disc lifts immediately out of the resilient seat within the first few degrees of rotation, completely eliminating seat friction and scuffing over the remaining 90 degree travel path.

• Frictionless Quarter-Turn Operation: Because the disc only makes contact with the seat at the exact point of closure, operational torque requirements are greatly reduced, seat wear is virtually eliminated, and the valve maintains its bubble-tight sealing integrity across thousands of high-pressure cycles.

          OPEN FLOW STATE (QUARTER-TURN CLEARWAY)          CLOSED SHUT-OFF STATE (OFFSET CAM-ACTION SEAL)

                       [ ISO 5211 ACTUATOR INTERFACE ]               [ ISO 5211 ACTUATOR INTERFACE ]
                                    ||                                             ||
                                    \/                                             \/
                        +------------------------+                     +------------------------+
                        |  Offset Stem Geometry  |                     |  Offset Stem Geometry  |
                     +--+------------------------+--+                 +--+------------------------+--+
                     |  [ ANCHORED SEAT RING ]    |                 |  [ ZERO-FRICTION CLOSED ]  |
                     |       /---|  |---\        |                 |     /================\   |
 ===================>|      | Dynamically|       |================>|====>| Contoured      |<====| Reverse Backpressure
 High-Velocity Line  |      | Contoured  |       | Straight Outflow|     | Disc Wedged    |     | Fluid Stream held
 Process Flow        |      | Disc       |       | Minimal Drop    |     | Bubble-Tight   |     | (Zero Seat Rubbing)
                     |       \---|  |---/        |                 |     \================/   |
                     +----------------------------+                 +-----+----------------+-----+
                        | API 609 Heavy-Duty Shell|                    | API 609 Heavy-Duty Shell|
                        +------------------------+                     +------------------------+

Core Engineering Features & Plant Benefits

• Flexible, Easily Replaceable Seating: Options for both premium high-performance polymer seats (PTFE / RPTFE) and rugged metal-to-metal seating profiles. The modular design allows for quick seat replacement on-site without stripping the main valve assembly.

• ISO 5211 Top-Works Standardization: Built with a standardized square stem drive and matching flange bolt holes, these valves easily pair with manual levers, heavy-duty gearboxes, pneumatic cylinders, or electric actuators.

• Reduced Operating Torque Requirements: The double offset cam rotation limits disc-to-seat friction, lowering breakout torque and allowing plants to select smaller, more economical automated packages.

• Class VI Tight Sealing: Engineered to meet rigid ANSI B16.104 Class VI leakage criteria, these valves deliver high-integrity shut-off across vacuum systems and high-pressure utility manifolds alike.

Strategic Industrial Application Sectors

Our Double Eccentric Offset Disc Butterfly Valves are engineered for excellence and widely specified across high-capacity processing infrastructures:

• Power Plants & Heavy Generation Utilities: Managing condenser cooling circuits, auxiliary boiler feedwater headers, and cooling tower loops.

• Water Treatment Plants & Desalination: Regulating high-velocity raw water intake headers, filtration loops, and main distribution pipelines.

• Pulp, Paper, & Sugar Industries: Controlling secondary wash water pipelines, bulk processing lines, and non-viscous utility fluids.

• Chemical & Pharmaceutical Complexes: Managing general processing utilities, secondary utility networks, and volatile chemical storage transfer grids.

• HVAC & Large-Scale Construction Infrastructure: Handling district cooling network headers, heavy building water loops, and condenser lines.

• Distillery & Textile Processing Infrastructure: Controlling auxiliary cooling headers, plant water intake manifolds, and low-viscosity processing fluids.

Reliable Supply Network Across India

As a leading manufacturer of high-performance offset disc butterfly valves in India, FlowBiz maintains comprehensive stock reserves and manages rapid logistics to support critical operations nationwide:

• Gujarat Hubs: Ahmedabad, Vapi, Valsad, Surat, Gandhidham, Kutch, Ankleshwar, and Bharuch.

• Maharashtra Corridors: Mumbai, Nashik, Pune, Thane, Aurangabad, Satara, Sangli, Nagpur, and Kolhapur.

• Central & Southern Industrial Zones: Indore, Dewas, Bhopal, Chennai, Coimbatore, Salem, and all other major industrial regions.

Are you updating a power plant cooling tower network that requires a 36-inch AWWA-compliant double eccentric valve, or configuring a chemical utility header that demands a Class 150 high-performance offset disc valve? Contact the FlowBiz technical sales and engineering division today to secure a factory-direct quote, or ask a single relevant question regarding your specific fluid velocity or seat trim requirements below to guide the conversation forward.F
