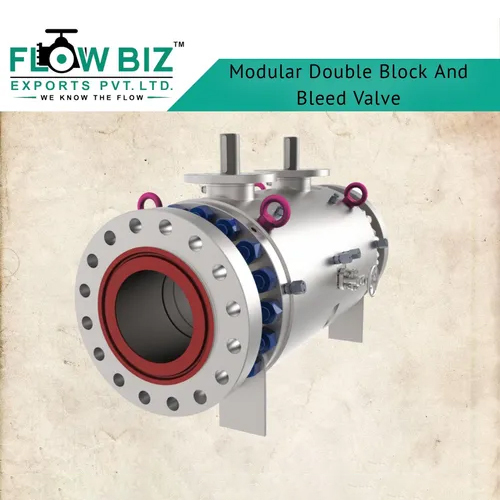

FlowBiz High-Integrity Double Block & Bleed (DBB) Ball Valves Ultimate Pipeline Isolation & Cavity Venting Systems

Welcome to the engineering authority for severe-service process safety, verified zero-leakage fluid containment, and high-pressure media isolation. Operating advanced multi-axis CNC machining complexes, micro-finished spherical-lapping facilities, and automated high-pressure validation bays, FlowBiz Exports Pvt. Ltd. specializes in manufacturing premium Double Block & Bleed (DBB) Ball Valves.

In standard pipeline installations, achieving absolute fluid isolation for downstream maintenance historically required installing two separate standard isolation valves in series, with a spool piece and a manual vent valve bolted between them. This traditional setup adds significant structural weight, multiplies the number of potential flanged leak paths, and takes up substantial physical space on processing skids.

FlowBiz addresses these critical space, weight, and safety limitations by engineering a compact, single-body Double Block and Bleed (DBB) and Double Isolation and Bleed (DIB) valve assembly. Featuring two independent, pressure-energized sealing boundaries paired with an integrated central bleed path, our DBB valves provide plant operators with a verifiable, safe method to isolate high-pressure fluids and vent internal cavity pressure before initiating system maintenance.

Technical Specifications & Pressure Envelope Portfolio

Every FlowBiz DBB and expanding plug valve is manufactured in strict accordance with major hydrocarbon industry benchmarks and global engineering frameworks.

Kinematics & Double Isolation Sealing Dynamics

The operational safety and dual-boundary leak prevention of the FlowBiz DBB system relies on pre-loaded, floating seat rings working in tandem with a central mechanical bleed trim:

• Dual Independent Isolation Boundaries: When the main valve is closed, the upstream and downstream floating seat rings are pressed firmly against the polished ball core by continuous wave springs and inline fluid pressure. This design establishes two separate, independent seals within a single valve body, blocking fluid bypass from both ends of the pipeline simultaneously.

• Integrated Safety Cavity Venting: With both seats locked tight, any media trapped inside the valve's central body cavity can be safely depressurized or drained away via the integrated bleed valve. This allows operators to easily check the integrity of the upstream seal before opening the pipeline for downstream service or calibration work.

• Automated High-Cycling Performance: Available with high-performance Pneumatic Actuators, our DBB valves deliver quick, precise, and effortless flow control. This automated setup is highly reliable for managing critical emergency shutdown lines and large-scale, high-pressure utility networks.

Widespread Application & Pipeline Placement

• Upstream & Downstream Instrument Isolation: Protecting delicate custody-transfer meters, pressure transmitters, and system calibration manifolds from high line pressures.

• High-Pressure Water & Fluid Utilities: Controlling high-velocity pump discharge headers, chemical injection loops, and water filtration mains where safety lines must remain tight.

• Critical Equipment Manifolds: Providing a safe work environment when isolating high-capacity pipeline pumps, strainers, storage skids, and distribution headers.

National Production & Supply Footprint

As a premium manufacturer, exporter, supplier, and trader, FlowBiz Exports Pvt. Ltd. provides prompt delivery, complete material traceability, and dedicated technical service across all major industrial manufacturing zones and chemical corridors in India:

• Gujarat Processing Regions: Vapi, Valsad, Bharuch, Ankleshwar, Kalol, Rakhial, Odhav, Sanand, Gandhidham, Kutch, Dholka, Naroda, Vatva, Kathwada, Makarpura, Navsari, Hazira, Sachin, Palanpur, Deesa, Mundra, Anjar, Bhuj, Vagra, Panoli, Dahej, Jagadia, Kadi, Godhra, and Halol.

• Maharashtra Industrial Hubs: Mumbai, Nashik, Konkan, Nagpur, Aurangabad, Amravati, Pune, Dahanu, Alibaug, Bhiwandi, Baramati, Satara, Chandrapur, Khed, Talegaon, Ahmednagar, Buldhana, Kolhapur, Nanded, Ambernath, Kurkumbh, Lote Parshuram, Taloja, Butibori, Patalganga, Kalyan, Badlapur, Mahad, TTC Industrial Area, Tarapur, Dombivli, and Roha.

• Madhya Pradesh Manufacturing Nodes: Bhopal, Indore, Jabalpur, Gwalior, Rewa, Ujjain, Pithampur, Kiratpur, Mohasa, Shivpuri, Sitapur, Mandideep, Dewas, Malanpur, and Pilukhedi.

• Odisha Industrial Corridors: Angul, Jaykaypur, Balangir, Balasore, Bargarh, Rayagada, Rajgangpur, Talcher, Kaniha, Vikrampur, and Makundapur.

Frequently Asked Questions (FAQ)

Q: How does a Double Block and Bleed Ball Valve enhance safety in industrial systems?

A: Our DBB valves feature two independent sealing mechanisms combined with a central bleed valve. This design creates a true dual-isolation barrier that blocks fluid flow from both the upstream and downstream sides of the line. Operators can open the bleed valve to completely vent trapped pressure or drain any remaining fluid from the internal cavity, ensuring a safe, leak-free work environment for downstream maintenance and calibration.

Q: What are the main benefits of using a pneumatically operated Double Block and Bleed Valve for high-pressure water applications?

A: High-cycle pneumatic actuators deliver fast, precise quarter-turn control, which is essential for managing rapid pressure drops or automated emergency shut-offs in high-pressure water systems. Combining this automated operation with independent dual seals provides long-term reliability and guards against internal seat wear caused by line turbulence.

Q: When should an industrial facility choose a Double Block and Bleed Valve over a standard ball valve?

A: A DBB configuration should be specified whenever absolute fluid isolation and verifiable zero-leakage are required for process safety. This includes high-pressure pipeline manifolds, systems containing hazardous or toxic chemicals, instrument calibration loops, and anywhere technicians need to safely work on downstream lines without shutting down the entire plant network.

Q: Where are Double Block and Bleed Ball Valves typically installed within an industrial operation?

A: These valves are commonly installed as main isolation points across high-pressure pipelines. Standard installation points include immediately upstream and downstream of custody-transfer flow meters, high-capacity process pumps, pressure reduction skids, and heavy utility equipment headers where complete, verifiable isolation is needed.

Q: What is the process for operating or maintaining a Double Block and Bleed Ball Valve?

A: Normal operation involves using the pneumatic actuator or mechanical manual gear to fully close the primary isolation seals. The integrated bleed valve is then manually or automatically opened to vent any pressure trapped inside the body cavity. For routine maintenance, this bleed design allows for safe inline depressurization and seat validation before any body seals are inspected or handled.

Q: Can these valves be supplied in custom sizes and configurations to fit unique industrial requirements?

A: Yes. FlowBiz manufactures a versatile portfolio of DBB ball valves and expanding plug valves tailored to your project criteria. We offer custom face-to-face dimensions, specific corrosion-resistant alloy bodies, special soft or hardened metal trims, and engineered automation options to ensure seamless integration into your existing pipeline networks.

Are you updating a high-pressure hydrocarbon pipeline that requires an API 6D Class 600 flanged double block and bleed ball valve with an integrated pneumatic actuator, or configuring a water isolation header that demands a custom 30-inch Class 150 layout? Contact our technical engineering division today to secure a factory-direct quote and immediate pricing, or ask a single relevant question regarding your specific process pressure boundaries or fluid media properties below to guide the conversation forward.
