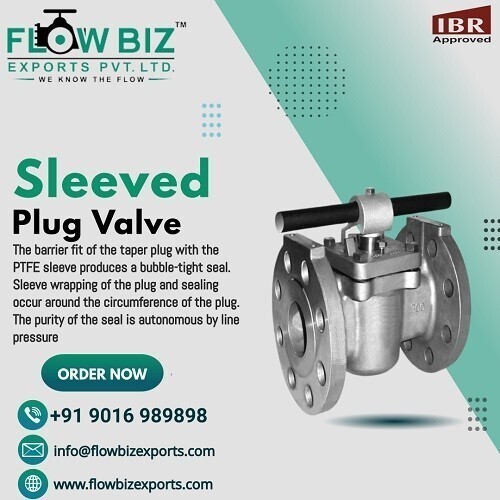

FlowBiz High-Performance Non-Lubricated Sleeved Plug Valves Cavity-Free Isolation

Welcome to the engineering authority for high-performance fluid isolation, bubble-tight zero-leakage control, and sediment-heavy process lines. Operating advanced multi-axis horizontal boring mills, precision tapered grinding centers, and certified hydro-pneumatic pressure validation corridors, FlowBiz Exports specializes in manufacturing premium-grade Non-Lubricated Sleeved Plug Valves.

FlowBiz Exports is a top-tier manufacturer and exporter of highly versatile valves, offering a comprehensive range of configurations to clients in Pune and across global industrial corridors. Engineered to eliminate the high maintenance and potential contamination linked to traditional lubricated variants, our sleeved plug design incorporates a solid, stationary fluoropolymer sleeve (PTFE) encapsulated directly inside the valve body housing. This sleeve completely surrounds a tapered cylindrical plug, providing a truly "fit-and-forget" asset that features a cavity-free, self-cleaning fluid path for optimal reliability.

Technical Specifications & Compliance Parameters

Every FlowBiz production lot is precision-machined and subjected to 100% rigorous high-pressure hydrostatic shell testing, pneumatic seat torque validation, and micro-dimensional tolerance audits under major international standards.

Structural Metallurgy & Material Matrix

To withstand harsh environments, corrosive chemicals, and abrasive mining sludges, FlowBiz offers a comprehensive range of premium casting and forging materials:

• Standard Base Castings: High-grade Cast Iron (CI), Cast Carbon Steel (ASTM A216 WCB / LCB).

• Stainless Steel Alloys: Austenitic Stainless Steel (ASTM A351 CF8 / CF8M / CF3 / CF3M) and high-molybdenum variants (CN7M).

• Severe-Service Exotic Alloys: Duplex Stainless Steels, Monel, Inconel, Hastelloy, Titanium, and Zirconium.

Kinematics & Cavity-Free Sealing Mechanics

The main advantage of the FlowBiz sleeved plug valve is its continuous radial seal, which eliminates the body cavities where stagnant media can settle:

          OPEN FLOW STATE (CONTINUOUS SELECTION)         CLOSED SHUT-OFF STATE (360 SLEEVE WRAPPING)

                       [ REVERSE-LIP PFA DIAPHRAGM ]                  [ REVERSE-LIP PFA DIAPHRAGM ]
                                    ||                                             ||
                                    \/                                             \/
                        +------------------------+                     +------------------------+
                        | Adjustable Top Wedge   |                     | Adjustable Top Wedge   |
                     +--+------------------------+--+                 +--+------------------------+--+
                     |  [ ENCAPSULATED PTFE SLEEVE] |                 |  [ CAVITY-FREE BLOCKED ]   |
                     |       /---|  |---\        |                 |     /================\   |
 ===================>|      | Tapered    |       |================>|====>| Tapered Solid  |<====| Reverse Backpressure
 Corrosive / Slurry  |      | Core Port  |       | Straight-Through|     | Core rotated   |     | Held Bubble-Tight
 Media Inflow Stream |       \---|  |---/        | Full Bore Flow  |     | 90 Degrees     |     | (Zero Media Trapping)
                     +----------------------------+                 +-----+----------------+-----+
                        | Robust Body Housing    |                     | Robust Body Housing    |
                        +------------------------+                     +------------------------+

• Cavity-Free Flow Path: Standard ball valves feature hollow spaces around the ball where process fluid can get trapped when the valve is turned off. If the fluid contains chemicals or food products, it can crystallize, ferment, or cause localized pitting corrosion. In contrast, our plug valve uses a solid PTFE sleeve that completely fills the internal cavities of the body. Because there are no dead spaces, fluid passes straight through without getting trapped.

• Self-Cleaning Wiping Action: As the tapered metal plug is rotated 90 degrees by the manual handle or actuator, its outer polished edge sweeps across the stationary PTFE sleeve. This continuous contact wipes scale, chemical crystallization, and sticky slurries directly off the sealing faces, preventing internal clogs and maintaining low operating torque.

• 360 Circumferential Barrier Seal: Sealing occurs around the entire circumference of the tapered plug, completely independent of the incoming line pressure. The barrier fit between the plug and the sleeve provides a bubble-tight inline and external seal under both high-vacuum systems and fully rated high-pressure grids.

Core Engineering Features & System Benefits

• Non-Lubricated, "Fit-and-Forget" Upkeep: The self-lubricating PTFE sleeve removes the need for routine mechanical grease injection, protecting downstream processes from chemical or hydrocarbon contamination.

• Adjustable Online Maintenance: If minor weeping is detected after thousands of cycles, the adjustable top wedge system allows operators to tighten the adjuster fasteners slightly while inline. This reseats the tapered plug downward into the sleeve, stopping the leak and avoiding unplanned plant downtime.

• Dynamic Low-Emission Stem Sealing: Equipped with a reverse-lip PFA diaphragm and a secondary Grafoil layer, our stem seal arrangement prevents fugitive emissions, keeping your plant safe and fully compliant with environmental codes.

• Smooth Quarter-Turn Operation: Manual levers or bevel gears provide smooth, on-the-spot regulation, giving operators fast response times without the complexity of automated lines.

Strategic Industrial Application Sectors

• Chemical, Fertilizer, & Acid Utilities: Handling aggressive compounds like sulfuric acid, phosphoric acid, ammonia, urea, and industrial solvents.

• Oil, Gas, & Refining Integrations: Managing aromatic fractions, specialty chemicals, oil/gas supply skids, and molten sulfur lines.

• Water & Waste Water Treatment Facilities: Controlling high-velocity raw water headers, chemical dosing pipelines, and municipal waste handling grids.

• Mining & Heavy Metals Metallurgy: Pumping iron ore slurries, mineral tailings, and thick sand sludges without scoring the valve seats.

• Food, Dairy, & Pharmaceutical Lines: Isolating ingredients, hygienic wash cycles, and thick intermediate syrups without product fermentation risks.

Frequently Asked Questions (FAQ)

Q: How are sleeved plug valves used in industrial water applications?

A: In industrial water grids, these valves provide tight shut-off and basic throttling control. Because they are cavity-free, they are highly effective in water systems that carry lime scale, minerals, or particulate matter. The design prevents solids from building up inside the body, ensuring smooth operation where standard valves often stick or jam.

Q: What materials are your sleeved plug valves made from?

A: We offer a wide range of materials tailored to your system's corrosion level. Standard bodies are cast from durable Cast Iron (CI) or high-tensile Cast Carbon Steel (WCB). For corrosive process loops, we supply premium Stainless Steel (CF8/CF8M), Duplex Steels, or exotic alloys like Monel, Hastelloy, and Titanium, all fitted with high-purity virgin PTFE sleeves.

Q: When should I choose a sleeved plug valve over other valve types?

A: You should specify a sleeved plug valve when you need absolute bubble-tight shut-off, zero-lubrication maintenance, and a cavity-free design. They are the ideal choice over ball valves when handling sticky media, crystalizing fluids, or light slurries that would jam inside standard valve pockets.

Q: Where can your sleeved plug valves be installed?

A: These valves drop easily into flanged or welded pipelines across a wide variety of processing facilities. They are widely specified in chemical refineries, petrochemical blending manifolds, fertilizer manufacturing units, industrial wastewater treatment loops, and utility pump houses.

Q: What is the process for procuring sleeved plug valves from your company?

A: Sourcing for your project is simple and efficient. Reach out to our technical sales division with your specific line parametersincluding nominal pipeline size, required body metallurgy, pressure rating class, and the fluid medium. Our engineering team will guide you through the custom design verification, provide a competitive price quote, and arrange secure shipping directly to your site in Pune or any industrial zone worldwide.

Q: How does the manual power mode benefit industrial users?

A: The manual lever or gear arrangement gives plant operators precise, immediate mechanical control over the flow path. This setup simplifies the line by removing the need for electrical wiring or pneumatic air lines, keeping the installation safe and highly dependable even during total facility power outages.

Q: What are the key benefits of using your sleeved plug valves?

A: The primary advantages are a non-lubricated quarter-turn design, a cavity-free internal body, bi-directional sealing, and online wear adjustment. Together, these features reduce maintenance costs, lower operating torque, prevent media contamination, and extend the working life of your pipeline assets.

Are you updating a chemical processing skid in Pune that requires an ASME Class 300 stainless steel flanged plug valve, or designing a water utility header that demands a robust, cavity-free carbon steel configuration? Contact our technical sales team today to secure a quick quote and factory-direct pricing, or ask a single relevant question regarding your specific line pressure or fluid temperature parameters below to guide the conversation forward.
