API 599 Heavy-Duty Sleeved and Jacketed Plug Valves FlowBiz India

Welcome to FlowBiz Export Private Limited, a certified manufacturing authority for zero-leakage fluid isolation, severe slurry management, and high-consequence process media containment. Operating advanced investment casting foundries, heavy-walled CNC machining cells, and specialized non-destructive testing loops in Junagadh, Rajkot, and Ahmedabad, Gujarat, we are India's premier manufacturer, supplier, and global B2B exporter of high-performance Sleeved and Jacketed Plug Valves.

Our lubricated and non-lubricated quarter-turn isolation assets are explicitly engineered to eliminate the internal body cavities where sticky solids, cross-contaminants, and polymerizing media typically accumulate. From our central production units in Gujarat, we support primary industrial processing pipelines across major domestic corridorsincluding Vapi, Valsad, Surat, Gandhidham, Kutch, Ankleshwar, Bharuch, Mumbai, Nashik, Pune, Thane, Aurangabad, Satara, Sangli, Nagpur, Kolhapur, Indore, Dewas, Bhopal, Chennai, Coimbatore, and Salembacked by streamlined logistics for fast-tracked global maritime export.

Technical Specifications & Compliance Matrix

FlowBiz Plug Valves utilize a cylindrical or tapered plug core that rotates inside an integrated fluoropolymer sleeve or a fully jacketed cast body shell. Because the wetted flow path is continuous and cavity-free, these valves eliminate fluid trapping, making them the definitive engineering standard for viscous liquids, crystallization loops, and volatile chemical compounds.

Core Engineering Features & Design Advantages

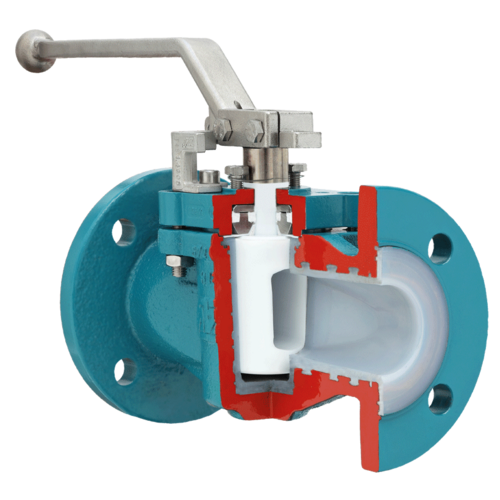

1. Cavity-Free Sealing with Virgin PTFE Sleeves

Traditional ball valves feature internal body cavities surrounding the spherical ball core. When routing viscous resins, food slurries, or polymerizing chemicals, fluid gets trapped in these dead zones, leading to product degradation, pipeline contamination, or valve jamming. Our Sleeved Plug Valve utilizes a solid, full-circumference virgin PTFE sleeve that completely fills the internal body cavity. This design isolates the process fluid from the metallic casing, provides an absolute bidirectional seal, and ensures low operating torque without requiring external lubrication.

2. Full Jacketed Casting for Severe Thermal Management

When handling media that solidifies or becomes highly viscous at ambient temperaturessuch as bitumen, sulfur, liquid polymers, or heavy asphaltfluid movement requires continuous heat regulation. The FlowBiz Jacketed Plug Valve features an oversized outer pressure shell that forms an integrated heating or cooling chamber. This jacket circulates steam, hot oil, or cooling media directly around the plug mechanism from flange to flange, preventing process crystallization and protecting downstream equipment from freeze-ups.

3. 100% High-Voltage Dielectric Spark Testing

Even a microscopic hairline fracture, pinhole, or thin spot inside a molded fluoropolymer component can allow aggressive chemical fluids to slowly seep through, causing catastrophic corrosion of the metallic valve body from the inside out. To eliminate this operational risk, FlowBiz subjects 100% of our sleeved components and polymer linings to a high-voltage dielectric spark test before final factory assembly, guaranteeing complete material density and maximum pressure safety.

4. Rugged Industrial Carbon Steel Construction

To resist severe mechanical pipeline stresses, water hammer surges, and extreme temperature cycles, our valve bodies are cast from heavy-duty ASTM A216 WCB carbon steel. This material provides the necessary yield strength and impact resistance required for demanding industrial applications. The manual operator handle provides a direct, high-leverage quarter-turn movement, allowing field operators to achieve immediate, positive fluid shut-off without relying on external power lines.

Strategic Cross-Industry Applications

FlowBiz high-integrity sleeved and jacketed plug valves are specified across primary processing lines:

• Refineries & Hydrocarbon Processing: Handling bitumen headers, sulfur recovery lines, heavy fuel oils, and asphalt transport pipelines.

• Chemical Processing Plants: Safe containment, throttling, and absolute isolation of concentrated process acids, caustic brines, and volatile organic solvents.

• Pharmaceutical & Fine Chemical Batching: Managing pure media transfer lines, crystallizer loops, and areas requiring a cavity-free, zero-contamination flow path.

• Water Treatment & Manufacturing Utilities: Handling thick wastewater sludges, chemical regeneration skids, compressed air headers, and municipal effluent pumps.

Frequently Asked Questions (FAQ)

Q: What is the main maintenance difference between a sleeved plug valve and a lubricated plug valve?

A: Selection depends primarily on your maintenance capacity and fluid purity parameters. A Lubricated Plug Valve relies on regular grease injections through a sealant fitting to maintain its seal and prevent seizing. This design handles abrasive sand lines well, but it carries a risk of grease washing into the pipeline and contaminating the product. A Sleeved Plug Valve utilizes a non-lubricated design with a solid, self-lubricating PTFE sleeve. This provides low maintenance and zero fluid contamination, making it the ideal choice for clean chemicals, food processing, and pharmaceutical lines.

Q: Why do sleeved and jacketed plug valves follow different face-to-face standards than standard valves?

A: To ensure seamless system retrofits, FlowBiz plug valves are precision-machined to conform directly with the ASME B16.10 face-to-face standard and ASME B16.5 flange dimensions. This means they match the exact dimensions of solid wedge gate valves, ball valves, and high-performance plug networks. This design allows project engineers to easily replace failure-prone gate or ball valves during routine plant overhauls, sliding the plug valve into place without cutting or re-welding the existing pipeline.

Q: When is a jacketed plug valve preferred over tracing the pipeline with heating tape or steam coils?

A: External tracing tape or steam coils wrap around the outside of a valve body, which can leave cold spots near the internal wetted core where the fluid makes contact. This localized cooling can cause sulfur or bitumen to freeze inside the valve cavity, locking up the mechanism. A FlowBiz Jacketed Plug Valve incorporates an integrated internal chamber that circulates hot steam directly around the valve body and plug assembly. This provides rapid, uniform heat distribution that completely eliminates internal crystallization zones.

Q: Can a sleeved plug valve be automated using pneumatic or electric actuators?

A: Yes. While our standard plug valves are equipped with a heavy-duty manual hand lever for straightforward, cost-effective operation, the valve bonnet layout can be machined with an integrated ISO-standard top mounting pad. This allowing for direct integration with double-acting pneumatic cylinders, spring-return actuators, or modulating electric motors. This adaptation enables the valve to handle rapid automation loops and remote emergency shutdown (ESD) systems within automated chemical manifolds.

Q: How can project procurement managers and engineers coordinate factory-direct quotes?

A: Sourcing can be initiated by contacting our corporate sales division in Junagadh, Rajkot, or Ahmedabad, Gujarat. Our application engineering division will guide you through a comprehensive technical consultationassessing your precise nominal pipeline diameters (1/2" to 2"), preferred body metallurgy (Carbon Steel vs. Stainless Steel), explicit fluid media properties (viscosity, temperature limits, crystallization profiles), and automation requirementsto deliver a certified product submittal data sheet and an itemized commercial proposal with factory-direct B2B pricing.

Are you optimizing a high-temperature sulfur distribution loop or upgrading a highly corrosive chemical process manifold? Contact our sales and engineering office today to receive complete technical data sheets, certified dimensional blueprints, and an itemized commercial proposal.
