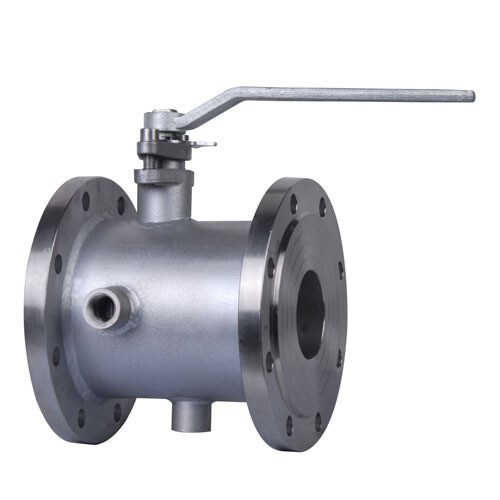

High-Performance Full-Cover Jacketed Ball Valves | FlowBiz Valves

FlowBiz Valves is a premier, engineering-driven manufacturer, supplier, and global exporter of high-precision Jacketed Ball Valves in India. Operating from our key heavy engineering hubsincluding Gandhidham, Gujaratwe design and manufacture these highly specialized thermal-jacketed valves to regulate process media that cannot flow at average ambient atmospheric temperatures.

In standard piping networks, highly viscous, cohesive, or temperature-sensitive media will quickly cool down, solidify, or crystallize inside the valve cavity. This causes line clogging, component seizing, and severe pressure drops. The FlowBiz jacketed ball valve series addresses this issue by integrating a robust outer heating or cooling containment jacket directly onto the valve body. This allows a continuous stream of hot steam, thermal oil, or cooling liquid to circulate around the internal pressure boundary, keeping the process media at a stable, uniform temperature and ensuring consistent fluid mobility.

We maintain a highly responsive distribution matrix supplying critical process industries across India and global export markets, including:

• Gujarat: Gandhidham, Kutch, Ahmedabad, Vapi, Valsad, Surat, Ankleshwar, Bharuch.

• Maharashtra: Mumbai, Nashik, Pune, Thane, Aurangabad, Satara, Sangli, Nagpur, Kolhapur.

• Pan-India Process Belts: Indore, Dewas, Bhopal, Chennai, Coimbatore, Salem, and global trade loops.

Technical Specifications & Operational Standards

Our thermal jacketed series is engineered from premium metallurgy and manufactured to comply with strict international quality codes:

Critical Application Scope

FlowBiz Jacketed Ball Valves are the industry-standard alternative for processes where raw media quickly solidifies under ambient atmospheric conditions. They provide reliable operation across demanding applications, including:

• Food & Beverage Processing: Molten Chocolate, Fats, and Sugars.

• Petrochemicals & Refining: Asphalt, Bitumen, Heavy Tar, Wax, Grease, and Crude Residues.

• Chemical Processing: Molten Sulphur, Benzene, Polyurethane, Resins, and Fatty Alcohols.

• Pharmaceutical Utilities: Sensitive chemical compounds requiring exact thermal tracking.

Strategic Design & Mechanical Engineering Features

1. Full Flange-to-Flange Uniform Heating Jacket

Unlike partial jackets that leave critical pipeline joints exposed to cooling air, FlowBiz valves feature a durable, full-cover jacket that wraps the entire valve body from one flange face to another. This eliminates internal cold spots where media could settle and crystallize. To accommodate standard installation tool clearance, the valve is engineered with an oversized flange configuration. For example, a valve with a 2" nominal port size (DN50) is outfitted with a 3" flange size (DN80). This provides ample bolting clearance, allowing technicians to fasten pipeline bolts quickly without hitting the outer jacket wall.

2. Tailored Sealing & Packing Configuration

To maintain an absolute Class VI bubble-tight seal under constant thermal cycling, the internal components are customized to align with your exact process variables:

• Resilient Seats: Choose from Virgin PTFE, Carbon-Filled Teflon (CFT), or hard-faced Metal-to-Metal seats to match the required chemical resistance and operational life span.

• High-Temperature Packing: The stem gland is loaded with premium Graphite, PTFE, or Viton packing rings to prevent fugitive atmospheric emissions and eliminate internal pressure migration into the heating jacket.

3. Integrated Fire-Safe Protection

Essential for installations handling flammable polymers, benzene, or molten sulfur. In the event of an unexpected facility fire, our fire-safe construction ensures that even if the primary soft polymer seats decompose under intense flame exposure, the valve maintains its structural containment to prevent external fluid leakage, safeguarding on-site personnel and plant assets.

4. Flexible Operational Modes & Automation Compatibility

Our jacketed series adapts seamlessly to any plant control architecture:

• Manual Levers & Gearboxes: Ergonomic hand levers provide simple control for smaller line sizes, while heavy-duty mechanical gearboxes provide smooth, low-torque operation for larger calibers.

• Pneumatic & Electric Actuators: Directly interfaces with automated pneumatic cylinders or multi-turn electric actuators via standard ISO top-mounting pads, enabling responsive remote control from a centralized SCADA or PLC process loop.

Frequently Asked Questions (FAQs)

Q: Why do jacketed ball valves utilize oversized flanges?

A: Because the heating jacket adds an extra layer of metal around the outside of the valve body, it extends into the space where standard pipeline bolts would normally sit. If the valve used standard-sized flanges, there wouldn't be enough physical clearance to insert studs or tighten nuts. By using an oversized flange configurationsuch as installing 3" flanges onto a 2" nominal port valvethe bolt circle is pushed outward. This provides ample wrench and bolt clearance, allowing for straightforward installation into existing pipelines.

Q: What types of heating media can be routed through the outer jacket shell?

A: The robust outer jacket is engineered to withstand utility temperatures up to 350C. Depending on your plant's utility framework and the thermal target of your process fluid, you can circulate high-pressure saturated steam, hot utility water, or synthesized heat-transfer thermal oils through the jacket ports to keep the internal valve body consistently hot.

Q: What is the testing protocol used to guarantee jacket safety?

A: High-temperature processing lines cannot tolerate unexpected pressure boundary failures. At FlowBiz, every individual valve undergoes rigorous hydrostatic and pneumatic testing per API 6D and BS EN ISO parameters. We test both the core process boundary and the outer jacket shell independently at elevated pressures to verify total structural density and ensure zero internal or external leakage before packing and shipment.

Q: Why choose FlowBiz as your trusted jacketed ball valve manufacturing partner in India?

A: FlowBiz Valves balances rigorous industrial engineering with strict compliance to global testing codes. By utilizing premium material grades like WCB, SS316, and Duplex steel, offering full flange-to-flange coverage, and testing 100% of our production lines for Class VI zero-leakage isolation, we eliminate field reliability concerns. Our capacity to deliver customized flanged equipment from 1/2" to 12" inches with flexible automation top works makes us a highly dependable supply chain partner for critical process installations worldwide.
