Industrial High-Pressure Check Valves: Custom Engineering and Pressure Boundary Standards

In high-pressure and high-temperature steam utility headers, boiler feed networks, and petrochemical process streams, preventing fluid backflow is essential for system safety. When forward velocity drops or a pump cycles off, the massive energy stored within the downstream fluid column can rapidly reverse direction. This backflow can cause severe fluid-hammer shockwaves, unseat upstream piping joints, and drive centrifugal pump impellers backward, risking catastrophic motor failure.

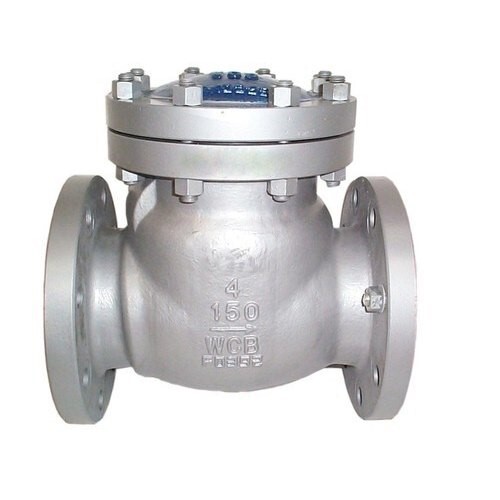

To withstand these severe conditions, heavy-duty Non-Return Check Valves must act as a reliable pressure boundary. By utilizing robust body-to-bonnet connections and specialized self-cleaning geometries, these valves provide automated, leak-proof backflow prevention without relying on high-wear components like hinge pins or springs.

                    High-Pressure Bonnet Integrity



                         Heavy Bolted Bonnet

                                    (Male-to-Female/Ring Joint Interlock)
         [ Fluid In ]    [ Fluid Out ]
                            SS 304 Disc         (Drip-Tight Seating)
                            Closure Core


FlowBiz Exports is an elite global fluid-handling brand and a leading Check Valve Manufacturer in Ahmedabad, Gujarat, India. Operating an advanced production facility, we engineer heavy-duty, high-integrity industrial check valves that strictly adhere to international codes and regulatory frameworks, ensuring durable and reliable operation across global energy and process sectors.

Technical Specifications & Compliance Matrix

FlowBiz check valves are precision-machined and hydrostatically verified to satisfy strict global pressure containment and fugitive emission standards.

Core Engineering Parameters

Critical Engineering Features & Safety Benefits

1. High-Integrity Body-to-Bonnet Interlocking

Under severe pipeline pressure, standard flat-face bonnet gaskets can fail or blow out, causing hazardous fluid leaks. FlowBiz structures its valve bonnets with a male-and-female interlocking configuration. For high-pressure classes, we utilize a precision-machined Ring-Type Joint (RTJ). This setup places a solid metal ring into a machined groove, establishing a high-integrity, leak-proof metal-to-metal boundary that easily handles deep thermal cycles up to 200C.

2. Verified Fugitive Emission Compliance

Volatile process fluids and high-pressure steam lines require high packing and sealing integrity to protect personnel and prevent product loss. FlowBiz check valves meet the strict requirements of Shell Category-B fugitive emission levels under the MESC SPE 77/312 standard. This compliance guarantees that both body joints and casting profiles exhibit minimal leakage, maintaining a safe operating environment.

3. Pinless and Springless Low-Wear Architecture

Conventional check valves often rely on internal springs or thin hinge pins to guide the disc. Over time, high-velocity turbulence can erode these pins or fatigue the springs, leading to internal component detachment and valve failure. FlowBiz solves this issue by utilizing a pinless, springless internal configuration. The SS 304 disc is guided entirely by the valve's internal body tracks, reducing wear points and offering low friction losses alongside simple, inline serviceability.

Strategic System & Industrial Applications

Our IBR-certified high-temperature check valves are positioned at critical isolation points across heavy process networks:

• High-Pressure Steam Systems (IBR Loops): Positioned along boiler feed headers and steam distribution lines to prevent high-temperature condensate backflow.

• Chemical Processing Facilities: Regulating aggressive process lines, liquid reagents, and hot chemical mixtures up to 200C.

• Petroleum Refineries & Petrochemical Lines: Installed along hydrocarbon headers, utility lines, and blending manifolds to protect upstream pumps.

• Nuclear & Power Generation Infrastructure: Meeting strict safety guidelines to ensure reliable, non-return fluid isolation in critical auxiliary loops.

• Water Treatment & Desalination Networks: Custom-configured to manage high-volume raw water pumping loops and high-pressure desalination headers.

Comprehensive Production & Global Supply Network

Operating from our industrial hub in Ahmedabad, India, FlowBiz leverages advanced machining centers and rigorous quality control protocols to supply high-pressure valves worldwide. We maintain total production control over our core product lines:

• High-Pressure Ball Valves: Precision-engineered for smooth, zero-leak fluid isolation in volatile process loops.

• Heavy-Duty Gate Valves: Manufactured to deliver dependable on-off control at highly affordable rates.

• Non-Return Check Valves: Custom-tailored to protect critical piping networks against fluid backflow.

Frequently Asked Questions (FAQ)

Q: What specific benefits do IBR and ISI certifications offer to a plant manager?

A: These stamps provide verified proof of mechanical safety and material quality:

• IBR (Indian Boiler Regulations): Lawfully mandates that every stage of material selection, welding, and pressure testing is audited. This ensures the valve can safely handle high-pressure steam utilities without risking structural failure.

• ISI Certification: Confirms that the valve complies with strict national performance standard guidelines, ensuring long-term operational durability and consistent field performance under harsh processing conditions.

Q: Why is a male-and-female bonnet configuration preferred over a standard flat face connection?

A: Standard flat-face gaskets rely solely on bolt compression to maintain a seal. Under high pressure spikes or rapid thermal shifts, the gasket can shift or blow out horizontally. A Male-and-Female Bonnet Joint physically encloses the sealing gasket within a machined recess. This prevents the gasket from expanding under load and ensures uniform compression across the sealing face, providing high structural safety in extreme operating environments.

Q: What is the technical ordering workflow for requesting a customized valve layout from Ahmedabad?

A: Our engineering team custom-tailors each valve configuration to match your exact pipeline footprint:

1. Parameter Gathering: Project sourcing teams provide their performance requirementsincluding nominal port dimensions, maximum operating pressures, media trait profiles, and target connection styles.

2. Precision Engineering: FlowBiz selects the appropriate body metallurgy and tailors the internal port configuration to ensure an optimal fit without restricting fluid velocity.

3. Quality Verification: The finished valves undergo strict hydrostatic shell checks and seat leakage sweeps before being cleared for domestic supply or global export.

Q: What routine maintenance practices are required for this style of check valve?

A: Because this valve is engineered without vulnerable hinge pins or springs, mechanical wear is minimized. Routine maintenance simply involves periodic visual inspections for external tightness during scheduled facility turnarounds. If internal inspection is required, the top-bolted bonnet allows technicians to easily access the valve chamber inline. The SS 304 disc can be quickly cleaned of any pipeline scale or debris and re-secured, keeping plant downtime to a minimum.
