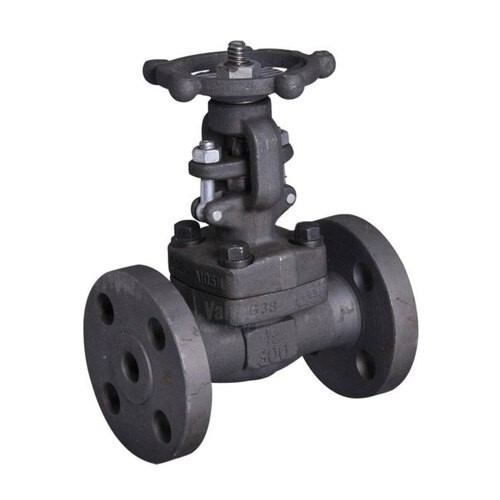

API 602 High-Pressure Forged Steel Globe Valves FlowBiz Mumbai

Welcome to FlowBiz Export Private Limited, a certified manufacturing authority for high-pressure fluid modulation, severe-service thermal utilities, and high-consequence pipeline throttling arrays. Operating state-of-the-art precision forging presses, advanced multi-axis CNC machining centers, and certified testing cells in Mumbai, Maharashtra, we stand as India's premier manufacturer, supplier, and global B2B exporter of industrial API 602 / BS EN ISO 15761 Forged Steel Globe Valves.

Our compact, forged linear-motion globe valves are explicitly engineered for fine-tuned flow regulation, pressure control, and reliable throttling where standard cast or quarter-turn valves fail due to rapid seat erosion. From our primary logistics hub in Mumbai, we leverage direct transport and deep-water port connectivity to seamlessly support critical processing infrastructure across India's core industrial zonesincluding Ahmedabad, Vapi, Valsad, Surat, Gandhidham, Kutch, Ankleshwar, Bharuch, Nashik, Pune, Thane, Aurangabad, Satara, Sangli, Nagpur, Kolhapur, Indore, Dewas, Bhopal, Chennai, Coimbatore, and Salembacked by fast-tracked maritime routes for direct project export worldwide.

Technical Specifications & Compliance Parameters

FlowBiz Forged Steel Globe Valves utilize a robust internal structure where fluid is directed through an S-shaped flow path beneath a horizontal valve seat. A precision-machined plug-shaped disc is raised or lowered perpendicular to the seat face. The high-density forging process refines the internal grain structure of the metal, ensuring complete elimination of the internal porosity, gas pockets, and structural voids common in standard castings.

Pressure Class Matrix & End Connection Interfaces

To accommodate diverse pipeline requirements, our forged steel globe valve series is engineered across multiple pressure classifications and configuration profiles:

1. ASME Class 300# & Class 600# Series (Full Bore)

• Configuration: Built with integral or full bore, weld-on flanges.

• End Connection: Precision-machined Raised Face Flanged Ends (ASME B16.5).

• Application: Ideal for medium-to-high pressure cooling water headers and process pipelines requiring unrestricted full-port flow when fully opened.

2. ASME Class 800# Series (Reduced Bore vs. Full Bore)

• Reduced Bore Option: Tailored for space-saving pipeline networks where slight flow restriction is permissible; equipped with Socket Weld (ASME B16.11) or Screwed/NPT Threaded ends.

• Full Bore Option: Tailored for high-velocity transfer lines where pressure drop must be minimized; equipped with Socket Weld or Screwed/NPT ports.

3. ASME Class 1500# & Class 2500# Extreme-Pressure Series

• Configuration: Heavy-wall forged body architecture available with bolted or high-integrity weld-bonnet joints.

• End Connection: Heavy socket weld ports or custom butt-weld ends.

• Application: Engineered for severe-service thermal utilities, superheated central steam vents, and high-consequence drains in power plants.

Core Engineering Features & Design Advantages

1. Precision Forged Steel Core for Extreme Environments

Unlike cast valves that are vulnerable to internal micro-cracks under high system loads, FlowBiz valve bodies are hammered into shape under intense mechanical forging presses. This process aligns the metal's grain matrix, delivering exceptional tensile strength, structural elasticity, and maximum resistance to extreme thermal shocks and high pipeline vibrations.

2. Chrome-Plated Trim for Superior Wear and Corrosion Resistance

Our globe valves feature a hard, chrome-plated or hardfaced internal seating surface that provides exceptional protection against corrosion and mechanical wear. This micro-smooth trim reduces friction during manual handwheel operation, prevents particle sediment buildup, and stops localized erosion ("wire-drawing") when the valve is left in a partially open position for throttling services.

3. Highly Effective Flow Regulation and Control

The primary mechanical advantage of the FlowBiz design is its ability to regulate flow, control pressure, and manage temperature efficiently. The contact area between the parabolic plug disc and the seat ring changes proportionally with the linear stroke length. This linear travel allows plant engineers to modulate fluid volumes with high precision, making it ideal for managing water, oil, and gas media.

4. Leak-Proof Bolted or Weld Bonnet Enclosures

To guarantee zero external emission leakage to the environment under high temperatures and cyclic pressures, our bonnets are equipped with a high-integrity sealing matrix. For routine utility lines, our Bolted Bonnet style utilizes a spiral-wound stainless steel gasket for straightforward inline maintenance. For extreme-pressure paths (Class 1500#/2500#), our hermetically Seal-Welded Bonnet completely removes the body-bonnet joint as a potential leak path, ensuring long-term operational security.

Strategic High-Pressure Utility Applications

FlowBiz high-performance forged steel globe valves are specified across primary processing lines:

• High-Pressure Boiler Feedwater Networks: Boiler water treatment inlets, main feed pump recycling loops, and auxiliary chemical feed systems.

• Central Steam Utilities & Power Generation: Superheated steam vents, high-temperature lines, turbine drains, and soot blower manifolds.

• Fuel Oil Conditioning & Transit Skids: Heavy fuel oil (HFO) transfer lines, burner conditioning manifolds, and fuel distribution loops.

• Cooling Water Systems & Manifolds: High-pressure jacket cooling lines, heat exchanger isolates, and industrial facility cooling utilities.

Frequently Asked Questions (FAQ)

Q: Why is a forged steel globe valve preferred over a ball or gate valve for throttling service?

A: Quarter-turn ball valves and linear gate valves are designed exclusively for full-flow isolation; leaving them partially open forces high-velocity fluids directly across the sealing seats, causing rapid erosion, deep scoring, and permanent inline leakage. A Globe Valve routes fluid smoothly through an internal seat bridge. The fluid velocity is distributed uniformly around the 360-degree perimeter of the parabolic plug disc, allowing the valve to handle high-velocity throttling and continuous flow modulation without seat damage.

Q: What is the correct field installation sequence for a flanged forged steel globe valve?

A: Installation requires strict attention to the cast flow-arrow on the valve casing indicating the specific direction of flow. Technicians must align the pipeline ends cleanly with the valve's flanged connections, ensuring that faces are clean and parallel. A high-quality, high-temperature gasket must be centered between the sealing faces, and high-tensile structural bolts inserted. Operators must tighten these bolts in a progressive, alternating cross-star pattern using a torque wrench to ensure an even, leak-proof mechanical joint.

Q: When should a system designer select a Weld Bonnet configuration over a Bolted Bonnet?

A: A Bolted Bonnet design is ideal for systems that require periodic inline inspection, cleaning, or seat resurfacing, as it allows maintenance crews to quickly unbolt the topworks. However, for critical lines handling superheated steam, volatile gases, or high-pressure hydrocarbons (Class 1500# / 2500#) where thermal expansion cycles can gradually loosen bolts, a Weld Bonnet configuration is preferred. The bonnet is permanently seal-welded to the body, eliminating gaskets and bolts to provide a zero-leakage joint that reduces maintenance costs.

Q: How does a reduced bore globe valve differ operationally from a full bore variation?

A: In a Full Bore Valve, the internal port diameter matches the inner diameter of the connecting pipeline, ensuring maximum flow capacity and a minimal pressure drop across the seat. A Reduced Bore Valve features internal fluid paths that are one size smaller than the pipeline connection (e.g., a 1" pipeline valve with a 3/4" internal port). Reduced bore profiles are a highly cost-effective option for bypass lines, instrument take-offs, and chemical feed loops where a slight increase in fluid resistance (DP) does not impact overall system performance.

Q: How can project procurement managers and engineers coordinate factory-direct quotes?

A: Sourcing can be initiated by contacting our corporate sales and engineering division in Mumbai or Ahmedabad, Gujarat. Our technical staff will guide you through a comprehensive consultationassessing your precise nominal pipe dimensions (1/4" to 2"), preferred pressure classification (Class 300# to 2500#), body material grade (A105, alloy, or stainless steel), explicit fluid media properties, and preferred end connections (Flanged, Socket Weld, or NPT)to deliver a certified product submittal data sheet and an itemized commercial proposal with factory-direct B2B pricing.

Are you optimizing a high-pressure central steam vent grid or upgrading an industrial fuel oil conditioning manifold? Contact our Mumbai sales and engineering office today to receive complete technical data sheets, certified structural blueprints, and an itemized commercial proposal.
